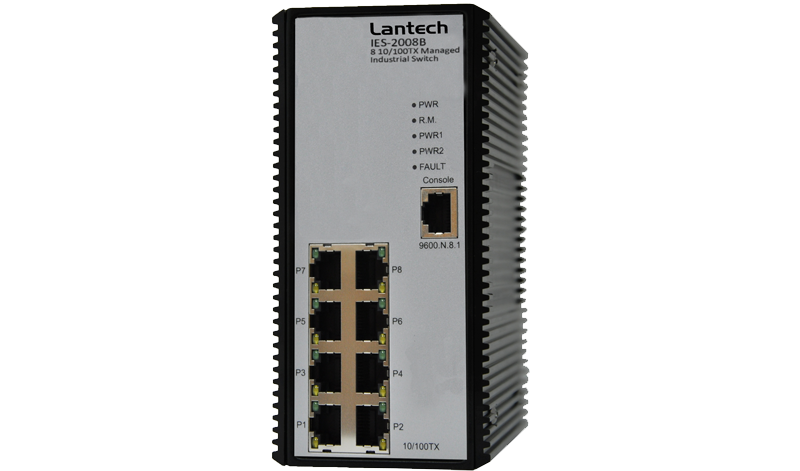

IES-2008B

8 10/100TX Industrial Managed Ethernet Switch

ATEX Directive 94/9/EC certified (-ATEX model)
Pro-Ring2se for self-heal ring <20ms
Support Advanced SNMP including QoS, IGMP query & source only, CPU load monitoring
Watchdog Design and Factory Default Button
DNV Type Approved for Ships, Craft and Off-shore Platforms**

OVERVIEW

The Lantech IES-2008B is an 8-port 10/100BaseTX SNMP industrial Ethernet switch with Pro-Ring IIs self-recovery scheme in 20ms. The advanced SNMP management features include QoS for 4 queues, 802.1q VLAN, IGMP snooping, query and source only for multicast IP surveillance, SSH/SSL* as well as Web Ping, CPU load monitoring, SNTP and SMTP etc.

The Pro-Ring2se self-recovery scheme can recover Ring network in less than 20ms with single ring up to 50 switches with one step setup. Lantech IES-2008B builds all the important management features required in large network like DHCP Client/Server, 802.1X authentication, IGMP Query / Snooping and source only for reverse multicast flow, and advanced QoS. It also supports Ping commands via Web to detect whether a specific device is still connected for easy trouble-shooting.

The IES-2008B has the relay contact that is able to connect with alarm system and send Email and SNMP trap alert in case of power or port failure. It also has the built-in factory reset button and watchdog design can restore all setting back to factory default and automatically reboot the switch when CPU loading is find dead.

The IES-2008B is designed to meet with critical network environment with IP 30 enclosure and test under extensive Industrial EMI and Safety standards. With UL Class I Division II / ATEX Directive 94/9/EC approval, the IES-2008B-C1D2/ATEX can be implemented in hazardous or explosive condition without accelerating the damage. It’s the best choice for inflammable environment where the liquid, gas and vapor etc might present the hazardous condition which generally to be find in mining, oil & gas, chemical, processing automation areas. It’s also suitable for surveillance, factory automation, transportation, telecom / ISP outside terminal, heavy industrial factory and other factory assembly lines.

The Lantech IES-2008B is the best to be used in municipal, city surveillance, automation, transportation, mining, heavy Industrial factory and other factory assembly lines where needs reliable and robust network. The -E / -C1D2ATEX model can be used in extreme environments with an operating temperature range of -40°C to 75°C.

*Future Release
**Optional

FEATURES

Pro-Ring2se for self-recovery scheme in less than 20ms for single-ring with one setup
Back-plane (Switching Fabric): 1.6Gbps
1Mbits Packet Buffer / 8K MAC address table
UL Class I Division II for Group A,B,C and D certified
ATEX Directive 94/9/EC certified (-C1D2/ATEX model)
IP30 metal housing with DIN rail and Wall-mount** design
Provides EFT protection ±2000 VDC for power line
Supports ±6000 VDC for ESD protection
Support CPU load monitoring and Web Ping to check if the connected device is alive
IEEE 802.1d Spanning Tree & IEEE 802.1w RSTP
IGMP with Snooping and Query mode for Multi Media Application
IGMP source only for reverse multicast application
Static Multicast Route for non-IGMP application
Port Based VLAN, 802.1Q Tag VLAN
Port Trunk with LACP
Supports IEEE 802.1ab LLDP
Supports IEEE 802.1p CoS, 4 priority queues per port
Port base, Tag Base and Type of Service Priority
Supports Ingress Packet Filter and Egress Rate Limit
Supports Broadcast/Multicast Packet Filter Control
Port Mirror: Monitor traffic in switched networks
- TX, RX, Both of TX and RX Packet
System Log Server/Client
SMTP e-mail Alert up to 6 emails
Security
- Port Security: MAC address entries/Filter
- IP Source Guard: IP address security management to prevent unauthorized intruder
- Login Security: IEEE802.1X/RADIUS
SNMP Trap
- Device cold start, Power status, Authentication failure, Port Link up/Link down
Relay Alarm Output System Events
TFTP & Web Firmware Update & System Configure Restore/Backup
Factory reset bottom can restore all setting back to factory default and Watchdog design to automatically reboot switch when CPU load is found dead

*Future Release
**Optional

HARDWARE SPECIFICATIONS

Hardware Specifications

IEEE Standards	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX IEEE802.3x Flow Control and Back Pressure IEEE802.3ad Port trunk with LACP IEEE802.3af Power over Ethernet IEEE802.1d Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1p Class of Service IEEE802.1Q VLAN Tag IEEE802.1x User Authentication (Radius) IEEE802.1ab LLDP
Switch Architecture	Back-plane (Switching Fabric): 1.6Gbps
Transfer Rate	14,880pps for Ethernet port 148,800pps for Fast Ethernet port
Packet Buffer	1Mbits
MAC Address	8K MAC address table
Flash ROM	4Mbytes
DRAM	32Mbytes
Connectors	10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function RS-232 connector: RJ-45 type
Network Cable	10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m)
Protocol	CSMA/CD
LED	Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Red), Master (Green) 8 port 10/100: Link/Activity (Green), Full duplex/Collision (Yellow)
Power Supply	12V~48VDC(9V~56VDC);Dual power connector removable terminal block for master and slave power
Overload current protection	Present
Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	Standard: -20°C~60°C / -4°F~140°F Wide Operating Temperature (-E / -C1D2/ATEX / -DNV model): -40°C~75°C / -40°F~167°F
Storage Temperature	-40°C~85°C / -40°F~185°F
Case Dimension	IP-30, 74(W) x 105 (D) x 152 (H) mm (non-DNV model) 74.5(W) x 105 (D) x 182 (H) mm (DNV model)
Weight	850 g (non-DNV model) 1000 g (DNV model)
Fan Number	0
Installation	DIN Rail and Wall Mount** Design
EMI & EMS	FCC Class A, CE EN61000-6-2, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE EN61000-4-8, CE EN61000-4-11, CE EN55032 Class A, CE EN55024
Safety	UL UL Class I Division II for Group A,B,C and D hazardous location ATEX Directive 94/9/EC (-C1D2/ATEX model)
Stability Testing	IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
Power Consumption	7 W at full load
MTBF	1,034,882 hours
Warranty	5 years

SOFTWARE SPECIFICATIONS

Software Specifications

Management	SNMP v1 v2c, v3/ Web/Telnet/CLI
SNMP MIB	RFC 1215 Traps MIB, RFC 1213 MIBII, RFC 1157 SNMP MIB, RFC 1493 Bridge MIB, RFC 2674 VLAN MIB, RFC 1643 EtherLike, RFC 1757 Rmon, RSTP MIB, Private MIB, LLDP MIB
System Information	Show detail info incl.Name , Version CPU load monitoring for every 1,5,15 minutes Display network parameters incl. Mac, IP, Gateway, Netmask Allow adding port description
Pro-Ring 2se	Pro-Ring 2se system Topologies for network recovery in less than 20ms up to 50 switches. Note:Pro-Ring2se is not compatible with Pro-Ring2s/Pro-RingII Pro-Ring I; 20ms recovery is on fiber port.
VLAN	Port Based VLAN IEEE 802.1Q Tag VLAN (256 entries)/ VLAN ID (Up to 4K, VLAN ID can be assigned from 1 to 4096.)
Port Trunk with LACP	LACP Port Trunk: 4 Trunk groups/Maximum 4 trunk members
LLDP	Supports LLDP to allow switch to advise its identification and capability on the LAN
Spanning Tree	Supports IEEE802.1d Spanning Tree, IEEE802.1w Rapid Spanning Tree
Quality of Service	The quality of service determined by port, Tag and IPv4 Type of service, IPv4/IPv6 Different Service
Class of Service	Supports IEEE802.1p class of service, per port provides 4 priority queues
Port Security	Supports 100 entries of MAC address for static MAC and another 100 for MAC filter
Port Mirror	Supports 3 mirroring types: “RX, TX and Both packet”
IGMP & Static Multicast Forwarding	Supports IGMP snooping v1,v2 256 static multicast forwarding groups and IGMP query
IP Source Guard	Supports 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.
Login Security	Supports IEEE802.1X Authentication/RADIUS/Telnet
Flow Control	Supports Flow Control for Full-duplex and Back Pressure for Half-duplex
System Log	Supports System log record and remote system log server
SMTP	Supports SMTP Server and 6 e-mail accounts for receiving event alert
SNTP	Supports SNTP to synchronize system clock to Internet
Bandwidth Control & Storm Control	Support ingress packet filter and egress packet limit The egress rate control supports all of packet type and the limit rates are 100K~102400Kbps(10/100), 100K~256000Kbps(1000) Ingress filter packet type combination rules are Broadcast/Multicast/Unknown Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all of packet. The packet filter rate can be set from 100K~102400Kbps(10/100), 100K~256000Kbps(1000)
Relay Alarm	Provides one relay output for port breakdown, power fail alarm. Alarm Relay current carry ability: 1A @ DC24V
SNMP Trap	1. Cold start 2. Link down 3. Link up 4. Authorization fail
DHCP	Provides DHCP Client/ DHCP Server/ Port and IP Binding
DNS	Provide DNS client feature and support Primary and Secondary DNS server.
Firmware Update	Supports TFTP/Web firmware update, TFTP backup and restore. White list for TFTP upgrade and configuration editable file
Factory reset & Watchdog design	Factory reset bottom can restore all setting back to factory default and Watchdog design to automatically reboot switch when CPU loading is too high
ifAlias	Each port allows importing 128bits of alphabetic string of word on SNMP and CLI interface

*Future Release
**Optional

ORDER INFORMATION

8350-232	IES-2008B	8 10/100TX Pro-Ring IIs Industrial Managed Ethernet Switch; -20°C to 60°C
8350-233	IES-2008B-E	8 10/100TX Pro-Ring IIs Industrial Managed Ethernet Switch; -40°C to 75°C
8350-233DNV	IES-2008B-DNV	8 10/100TX Pro-Ring IIs Industrial Managed Ethernet Switch; -40°C to 75°C; DNV type approval
8350-233-C1D2/ATEX	IES-2008B-C1D2/ATEX	8 10/100TX Pro-Ring IIs Industrial Managed Ethernet Switch; -40°C to 75°C; ATEX Directive 94/9/EC

OPTIONAL ACCESSORIES – DIN Rail Power

Model name	Description
MDR-40 Series	40W Single Output Industrial Din Rail Power; 85-264VAC / 120-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 4% per degree from 60°C ~ 70°C)
MDR-20 Series	20W Single Output Industrial Din Rail Power; 85-264VAC / 120-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
