16 10/100/1000T PoE at/af + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch w/ Enhanced G.8032 Ring; 12V/48V input models

  • Auto-sensing triple speed1G/2.5G/10G SFP+ Uplink Cage
  • Support IEEE802.3at/af up to 30W per port PoE management incl. Detection and Scheduling
  • Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode*, enhanced mode, train mode*, multi-VLAN* and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 8/16*MSTI /RSTP ; support MRP ring**
  • Miss-wiring avoidance & node failure protection
  • User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***; Complete CLI
  • Support LACP link aggregation, IGMP v3/router port, DHCP server & DHCP Option82; Port based DHCP distribution, Mac based DHCP server, QoS by VLAN**, SSH/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3,TACACS+, QinQ**, SMS**
  • Optional InstaView** for centralized backup, editing the configuration file and upgrade firmware
  • Environmental Monitoring for temp., voltage & current
  • Wide range operation temperature (-E model):-40~75C/-40~167F; Fan-less design

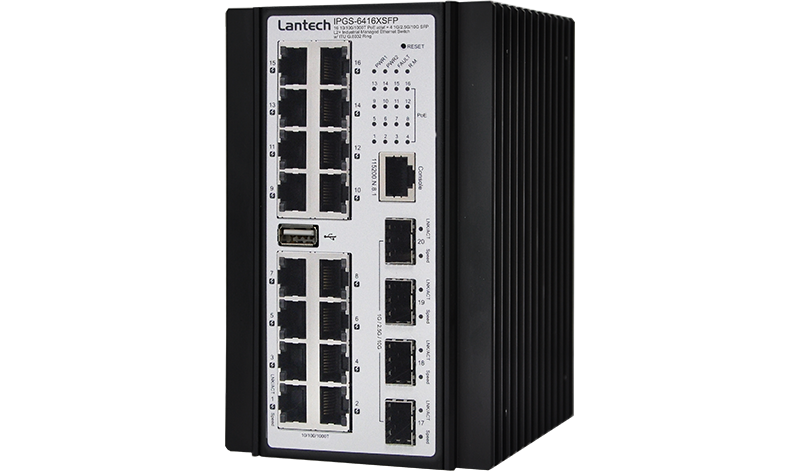

Lantech IPGS-6416XSFP-16 is a high performance L2+ (All Gigabit) Ethernet switch with 16 100/1000T + 4 1G/2.5G/10G auto sensing SFP+ w/16 PoE 802.3af/at Injectors which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring. It also supports train ring, enhanced mode with easy configuration, comprehensive QoS, QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, TACACS+, SSH/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ** which are important features required in large network. The Cisco Discovery Protocol (CDP) and LLDP are supported for Ciscoworks to detect the switch info and show on L2 map topology. The enhanced platform allows quick booting up time under 50 seconds.

Up to 16 Poe at/af ports w/advanced PoE management
Compliant with 802.3af/at standard, the Lantech IPGS-6416XSFP-16 is able to feed each PoE port up to 30 Watt. Lantech IPGS-6416XSFP-16 supports advanced PoE management including PoE detection and scheduling. PoE detection can detect if the connected PD hangs then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. Each PoE ports can be Enabled/disabled, get the voltage, current, Watt, and temperature info displayed on WebUI.

Miss-wiring avoidance, Loop protection, Repowered auto ring restore
The IPGS-6416XSFP-16 also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IPGS-6416XSFP-16 is able to alert with the LED indicator and disable ring automatically. Repowered auto ring restore function (node failure protection) ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.

DHCP option 82 & Port based, Mac based DHCP, Option66, IPv6 DHCP server**
DHCP server can assign dedicated IP address by MAC or by port (Port based for single switch) , it also can assign IP address by port for multiple switches with single DHCP option82 server. DHCP Option66 server can offer IP address of TFTP server to DHCP client for VOIP application. Optional IPv6 address resolution for DHCP service can be supported.

User friendly GUI, Auto topology drawing
The user friendly UI, innovative auto topology drawing and topology demo makes IPGS-6416XSFP-16 much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line.

Enhanced G.8032 ring, 16 MSTI MSTP; Optional MRP ring**
Lantech IPGS-6416XSFP-16 features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering multicast packets. It also supports various ring topologies that covers multi-chain (under enhanced ring), train ring, basic ring, multiple-VLAN ring and auto-ring by easy setup than others. The innovative auto-Ring configurator (auto mode**) can calculate owner and neighbor in one step. It supports MSTP that allows each spanning tree for each VLAN for redundant links with 8/16* MSTI.

Optional MRP (Media Redundancy Protocol) can be supported for industrial automation networks.

QoS by VLAN** for legacy device
QoS by VLAN** can allow switch to tag QoS by VLAN** regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.

QinQ**, QOS** and GVRP supported
It supports the QinQ**, QOS**, GVRP for large VLAN segmentation.

IGMPv3, GMRP, router port, static multicast forwarding and multicast Ring protection
The unique multicast protection under enhanced G.8032 ring can offer immediate self-recovery instead of waiting for IGMP table timeout. It also supports IGMPv3, GMRP, router port and static multicast forwarding binding by ports for video surveillance application.

Editable configuration file; InstaView** for mass deployment
The configuration file of Lantech IPGS-6416XSFP-16 can be exported and edited with word processor for the other switches configuration with ease.

The built-in watchdog design can automatically reboot the switch when CPU is found dead.

With optional InstaView, the configuration files can be mass backup, mass-editable deployed and auto upgrading firmware in batch make maintenance easy.

2DI/2DO for relay contact and event alerting by email & traps
In case of event, the IPGS-6416XSFP-16 is able to send an email & SMS** text message to pre-defined addresses as well as SNMP Traps out immediately. It provides 2DI and 2DO. When disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.

Environmental monitoring for switch inside information
The environmental monitoring can detect switch overall temperature, total PoE load, voltage and current where can send the SNMP traps, email and SMS** alert when abnormal.

Dual power 12V/48V input, high PoE budget
The Lantech IPGS-6416XSFP-16 is designed with dual power supply at 48VDC(48V model) or 9.5V~56VDC input(12V model). The 48V model can have 240W PoE budget while 12V model can have 80W (12V input) or 120W (24V input) budget.

Industrial hardened design with high EFT and ESD protection
Lantech IPGS-6416XSFP-16 features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. Featured with relay contact alarm function, the IPGS-6416XSFP-16 is able to connect with alarm system in case of power failure or port disconnection. The IPGS-6416XSFP-16 also provides ±2000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet.

It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory applications. The -E model can be used in extreme environments with an operating temperature range of -40°C to 75°C.

*Future Release
***Optional DDM SFP required
