I(P)GC-0101DSFP
GE (w/ PoE af/at) to 100/1000M SFP Industrial Switch Converter; 12V/48V/AC input
I(P)GC-0101DSFP
GE (w/ PoE af/at) to 100/1000M SFP Industrial Switch Converter; 12V/48V/AC input
I(P)GC-0101DSFP
GE (w/ PoE af/at) to 100/1000M SFP Industrial Switch Converter; 12V/48V/AC input
OVERVIEW

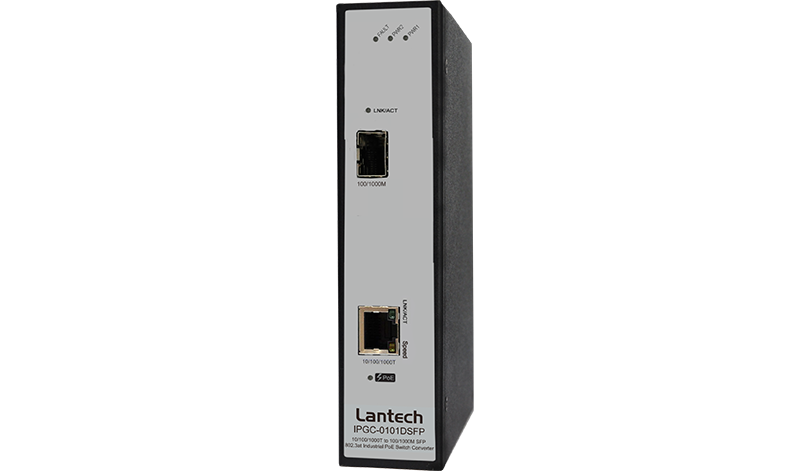

The Lantech I(P)GC-0101DSFP is an Industrial Converter converging from 10/100/1000 BaseT to 100/1000M-FXdual speed (with 802.3at/af PoE support). It supports 10K jumbo frame.
Supports Auto-sensing LLF
Featured with LLF (Link Loss Forwarding) function, Lantech I(P)GC-0101DSFP is able to auto cut off connection if one end of connection is down. When copper port disconnects, it will auto turn off fiber port. When fiber port disconnects, it will auto turn off copper port. Smart LLF function alert central side switch immediate remedy action when connection is lost.
Remote enable/disable PoE feeding power through fiber (PoE model)
The PoE power transmission of IPGC-0101DSFP can react to the fiber connection status. The control center can simply cut off and then re-connect the fiber connection tore-boot the PoE device, such as a camera that is connected to IPGC-0101DSFP remotely.
PoE model: Dual DC input power
IPGC-0101DSFP supports dual input from 9.5V~56VDC (12V model) or 44V~56VDC, dual ±48VDC input (48Vmodel) for various application including vehicle, railway, solar panel etc.
Non-PoE model: Dual power input from 9V~54VDC/18~36VAC with galvanic isolation
IGC-0101DSFP supports dual wide range input from 9V~54VDC and 18~36VAC (AC model) with Ethernet galvanic isolation that is good for various application including vehicle,railway, solar panel etc.
PD model(Non-PoE): Copper Ethernet Port can work as powered device
The copper port can provide the correct classification to power source equipment (PSE) so that the PSE can source the right amount of power to the IGC-0101DSFP-PD.
Hardened industrial design with extended temperature range ; CE, FCC, LVD, AREMA** part 11.5.1 compliance
It provides ±2000V EFT and±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet. It has high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in Automation, transportation, surveillance, Wireless backhaul, Semi-conductorfactory and assembly lines.
With CE, FCC,LVD and AREMA** part 11.5.1 verification, Lantech I(P)GC-0101DSFP is best for outdoor community, vehicle, railway, process control automation etc. For more usage flexibilities, I(P)GC-0101DSP-E supports wide operating temperature from -40°Cto 75°C.
SPECIFICATIONS
Hardware Specifications
Standards
| [cite_start]IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/100Base-FX, IEEE802.3ab 1000Base-T, IEEE802.3x Flow Control and Back pressure, IEEE802.3z 1000BaseSX/LX standards, IEEE802.3at PoE/PSE (PoE model) [cite: 1]
| |Switch Architecture
| [cite_start]Store and Forward [cite: 1]
| |Jumbo Frame
| [cite_start]10 Kbytes [cite: 1]
| |Mac Address
| [cite_start]1K MAC address table [cite: 1]
| |Fiber parameters
|Fiber Core: Multi-mode (62.5/125um, 50/125um), Single-mode (9/125um); Wavelength: 850nm(Multi-mode), 1310nm(Single-mode); [cite_start]Fiber Distance: Based on transceiver type for different distance [cite: 1]
| |Optical Cable
|1.25Gbps: Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm); Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm). 125Mbps: Multi mode: 0 to 2 km/ 5 km, 1310 nm (62.5/125 μm); Single mode: 0 to 30 km, 1310 nm (62.5/125 μm). WDM 1.25Gbps: Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm). WDM 125Mbps: Single mode: 0 to 20 km/ 40 km/ 60 km/ 80 km, 1310 nm (9/125 μm); [cite_start]0 to 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm) [cite: 1]
| |Polarity protection
| [cite_start]Power polarity auto-reverse protection [cite: 1]
| |Relay Alarm
|Provides one relay output for power fail alarm. [cite_start]Alarm Relay current carry ability: 1A @ DC24V [cite: 1]
| |Connectors
|Fiber: Mini-GBIC 3.3V 100/1000M FX; [cite_start]RJ-45 Socket: CAT-5 (10/100/1000Mbps) Twisted Pair cable Auto MDI/MDI-X and Auto-Negotiation Function Support [cite: 1]
| |LED
|Per unit: Power1 (Green), Power2 (Green), Fault (Red); Fiber: Link/Active (Green); TX: Link/Active (Green), speed (Yellow); [cite_start]PoE: Green (PoE model) [cite: 1]
| |Power Supply
|PoE model: Dual 9.5V~56VDC (12V model), Dual 44V~56VDC, dual ±48VDC input (48V model); [cite_start]Non-PoE model: Dual input Voltage Range: 9VDC to 54VDC (12V/DC model), Input Voltage Range: 18VAC to 36VAC (AC model) [cite: 1]
| |Power Consumption
| [cite_start]5 Watts max. [cite: 1]
| |PoE budget
| [cite_start]30W [cite: 1]
| |Operating Humidity
| [cite_start]5% ~ 95% (Non-condensing) [cite: 1]
| |Operating Temperature
| [cite_start]-20°C~60°C / -4°F~140°F (Standard model), -40°C~75°C / -40°F~167°F (-E model) [cite: 1]
| |Storage Temperature
| [cite_start]-20°C~70°C / -4°F~158°F [cite: 1]

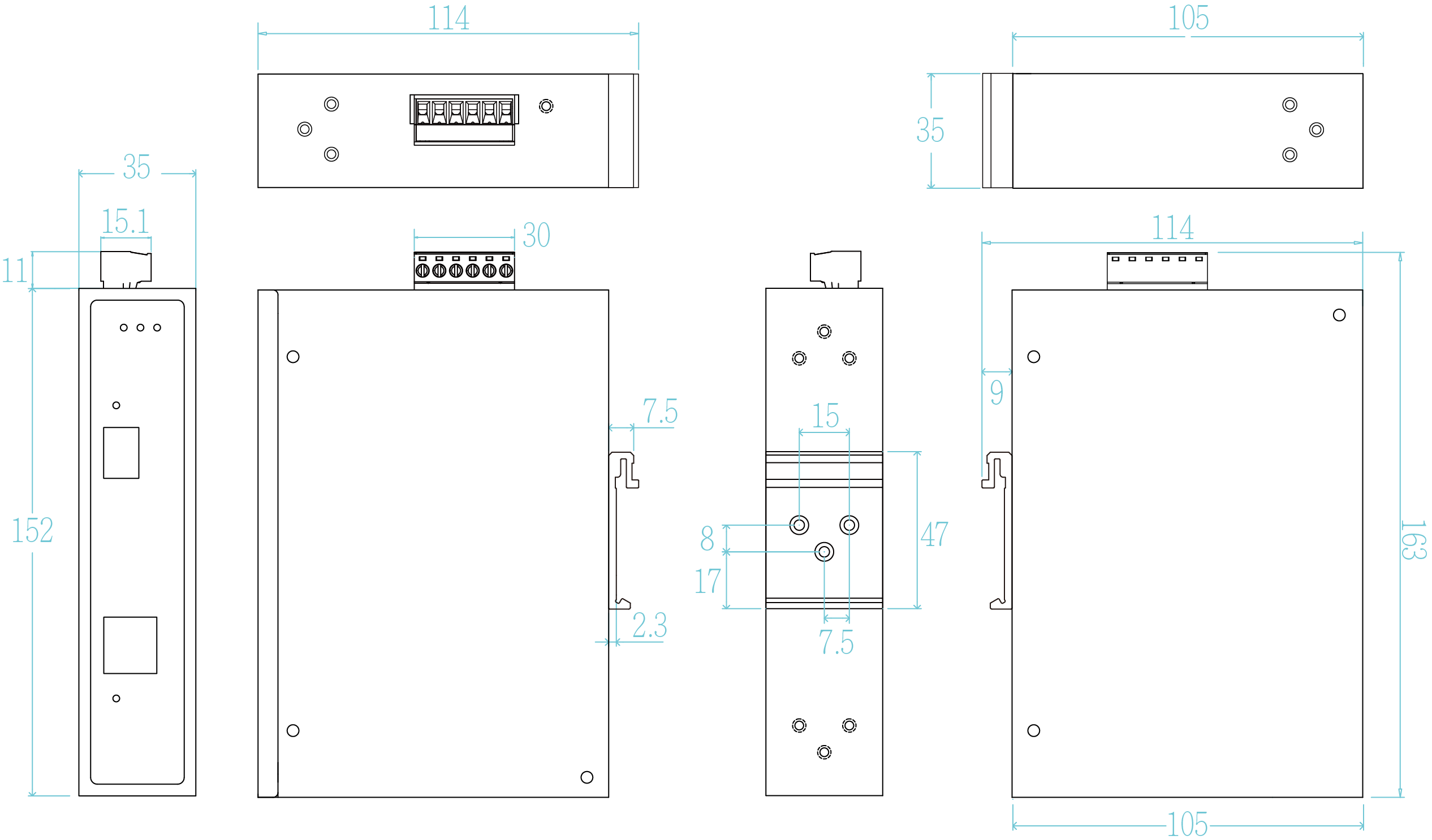

| |Case Dimension
|Metal case. [cite_start]IP-30, 35mm (W) x 152mm (H) x 105mm (D) mm [cite: 1]
| |Installation

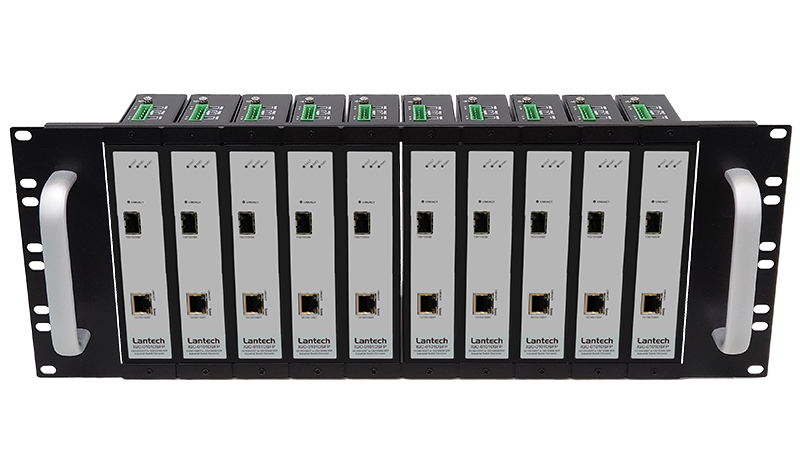

|DIN Rail, Wall Mount**, and 19 inch Rack-mount** Design; [cite_start]**Optional mounting Kit / bracket is required [cite: 1]
| |EMI & EMS
| [cite_start]FCC Part 15 Class A, CE EN55032 Class A, CE EN55024, CE EN61000-6-2, CE EN61000-4-2 (ESD) Level 3, CE EN61000-4-3 (RS) Level 3, CE EN61000-4-4 (EFT) Level 3, CE EN61000-4-5 ED3 (Surge) Level 3, CE EN61000-4-6 (CS) Level 3, CE EN61000-4-8, EN 50121-4:2015, EN 50121-5:2015, AREMA** part 11.5.1 compliance [cite: 1]
| |Stability Testing
| [cite_start]IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration) [cite: 1]
| |Safety
| [cite_start]EN 60950-1 [cite: 1]
| |MTBF
| [cite_start]1,884,611 hrs (standards: IEC 62380) [cite: 1]
|**Optional
ORDERING INFORMATION
Optional AREMA certified models are available with –AMA model namesOptional mounting Kit / bracket are required for Rackmount installation
OPTIONAL ACCESSORIES - DIN Rail Power
OPTIONAL ACCESSORIES - Mounting Kit / Bracket
OPTIONAL ACCESSORIES - Mini GBIC (SFP)
