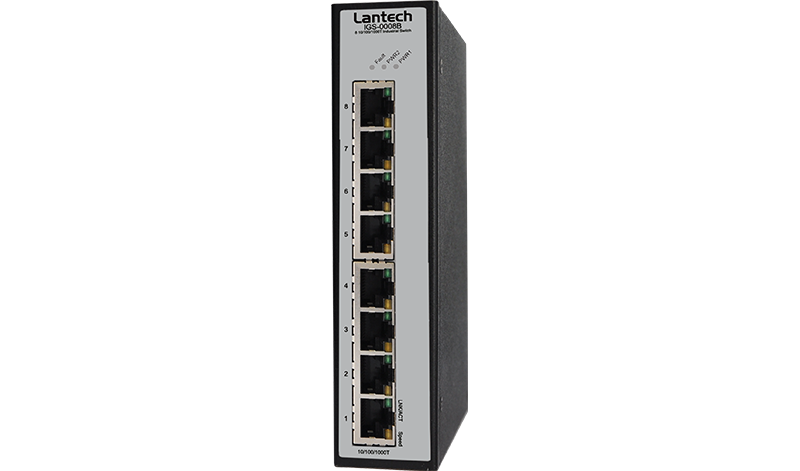

I(P)GS-0008B
8 10/100/1000T PoE at/af Industrial Ethernet Unmanaged Switch ; 12V/24V/48V input models
OVERVIEW
Lantech I(P)GS-0008B is a high performance all 8 10/100/1000T industrial Ethernet switch with w/8/6 PoE 802.3af/at ports.
Galvanic isolation for dual 48V, 12V, 24V input with max PoE budget
The IPGS-0008B supports IEEE802.3at/af standard which can feed HI-power up to 30W at each PoE port for big power consumption devices like PTZ IP camera, high power wireless AP etc.
The IPGS-0008B-12V accepts power input 9~56VDC with IEEE802.3at/af standard up to 30W per PoE port with maximum 120W@24V and 80W@12V output (at dual input). The 24V model is also compliant with ISO 7637-2 which protects switch from being damaged by high voltage that could be found at vehicle cranky start.
IPGS-0008B-12V with E-marking accepts input 9~36VDC for vehicle transient protection.
PoE 48V model accepts 44~56VDC power input and can feed 48V output for PoE feeding in vehicle at max 240W @48V input.
E-marking certificate, High reliability and extended working temperature
Lantech IPGS-0008B provides ±2000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet. It has high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines.
The -E model can be used in extreme environments with an operating temperature range of -40°C to 75°C.
The E-marking certificate makes it the most suitable PoE switch for bus, carriage, other vehicles application as well as for industrial areas where the power source is limited with 12V/24V but has demand of IP surveillance or VoIP applications. Only 12V or 24VDC input system is applicable for E-mark approval.
FEATURES
- 8 10/100/1000T industrial Ethernet switch w/8/6 PoE 802.3af/at ports (Total 8 Ports Switch)
- Embedded 8/6 PoE ports IEEE802.3af/at function to feed power up to 30W@54V per port for active operation
- Dual 9V~56VDC power input for 12V model; dual 9V~36VDC for 12V model with E-marking; dual 9V~36VDC power input for 24V model with E-marking & ISO7637 compliance; PoE budget 80W at 12V input, 120W at 24V input; dual 44V~56VDC power input for 48V model with PoE budget 240W
- Dual 9V~60VDC power input for non-PoE 12V model; dual 9V~36VDC power input for non-PoE 12V with E-marking and dual 9V~36VDC power input for 24V model without PoE
- Back-plane (Switching Fabric): 16Gbps
- 10KB Jumbo frame
- Provides EFT protection ±2000 VDC for power line
- Supports ±6000 VDC Ethernet ESD protection
- Galvanic isolation between power input and case ground; between Ethernet port and case ground
- Only 12V or 24VDC input system is applicable for E-mark approval
- Relay alarm output for power fail and alarm
- IP30 metal housing with DIN rail and Wall-mount** design
SPECIFICATIONS
Hardware Specifications
Standards
|IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T Ethernet
IEEE802.3x Flow Control and Back Pressure
IEEE802.3at/af Power over Ethernet
Switch Architecture
|Back-plane (Switching Fabric): 16Gbps
| |Transfer Rate
|14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet port
Mac Address
|16K MAC address table
| |Jumbo frame
|10KB
| |Connectors
|10/100/1000T: 8 x ports RJ-45 with Auto MDI/MDI-X function
Power & P-Fail connector: 1 x 6-pole terminal block
Network Cable
|10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
LED
|Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red);
Ethernet port: Link/Activity (Green), Speed (Amber);
PoE: Active (Green)
Operating Humidity
|5% ~ 95% (Non-condensing)
| |Operating Temperature
|-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)
Storage Temperature
|-40°C~85°C / -40°F~185°F
| |Power Supply
|Non-PoE model:
9V~60VDC (12V model); 9V~36VDC (12V model with E-marking)
9~36VDC (24V model)
PoE model:
9V~56VDC (12V model); 9V~36VDC (12V model with E-marking)
9~36VDC (24V model) ;
44~56VDC (48V model)
PoE Budget
|240W for 44~56V input (48V model) (50-56VDC input is recommended for 802.3at 30W applications)
80W at 12V input; 120W at 24V input
Higher PoE budget can be applied upon request. **
PoE pin assignment
|-8 model:
RJ-45 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides up to 30W
Positive (VCC+): RJ-45 pin 1,2
Negative (VCC-): RJ-45 pin 3,6
-6 model:
#1~#6 support IEEE 802.3at/af End-point. Alternative A mode. Per port provides up to 30W
Positive (VCC+): RJ-45 pin 1,2
Negative (VCC-): RJ-45 pin 3,6
Power Consumption
|5W
| |Galvanic Isolation
|Between power input and case ground
Between Ethernet port and case ground
Between power input and Ethernet port
Case Dimension
|PoE model, Metal case.
IP-30, 43 (W) x 105 (D) x 152 (H) mm
Non-PoE model, Metal case. IP-30,
35 (W) x 105 (D) x 152 (H) mm
Weight
|900 g
| |Installation
|DIN Rail and Wall Mount** Design
| |Relay Alarm
|Provides one relay output for power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V
EMI & EMS
|FCC Class A, CE EN61000-6-2,
CE EN55032 Class A, CE EN55024,
CE EN61000-4-2, CE EN61000-4-3,
CE EN61000-4-4, CE EN61000-4-5,
CE EN61000-4-6, CE EN61000-4-8
Safety
|EN62368 (LVD)
| |Stability Testing
|IEC 60068-2-27 (Shock),
IEC 60068-2-31 (Shock),
IEC 60068-2-64 (Vibration),
IEC 60068-2-80 (Vibration)
Vehicle certificate
|E13 marking (-12V;-24V model)
| |MTBF
|NA
|*Future Release **Optional
ORDERING INFORMATION
| IPGS-0008B-12V | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -20°C to 60°C; E-Marked |
| 8351-1023 | IPGS-0008B-6-12V | 8 10/100/1000T w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -20°C to 60°C; E-Marked |
| 8351-1032 | IPGS-0008B-12V-E | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -40°C to 75°C; E-Marked |
| 8351-1033 | IPGS-0008B-6-12V-E | 8 10/100/1000T w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -40°C to 75°C; E-Marked |
| 8351-102 | IPGS-0008B-12V | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~56VDC input; -20°C to 60°C |
| 8351-1021 | IPGS-0008B-6-12V | 8 10/100/1000T w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~56VDC input; -20°C to 60°C |
| 8351-103 | IPGS-0008B-12V-E | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~56VDC input; -40°C to 75°C |
| 8351-1031 | IPGS-0008B-6-12V-E | 8 10/100/1000T w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~56VDC input; -40°C to 75°C |
| 8351-1002 | IPGS-0008B-24V | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -20°C to 60°C; E-Marked |
| 8351-1003 | IPGS-0008B-6-24V | 8 10/100/1000T w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -20°C to 60°C; E-Marked |
| 8351-1004 | IPGS-0008B-24V-E | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -40°C to 75°C; E-Marked |
| 8351-1005 | IPGS-0008B-6-24V-E | 8 10/100/1000T w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -40°C to 75°C; E-Marked |
| 8351-1143 | IGS-0008B-12V | 8 10/100/1000T Industrial Ethernet Switch, dual 9V~36VDC input; -20°C to 60°C; E-Marked |
| 8351-1151 | IGS-0008B-12V-E | 8 10/100/1000T Industrial Ethernet Switch, dual 9V~36VDC input; -40°C to 75°C; E-Marked |
| 8351-1141 | IGS-0008B-24V | 8 10/100/1000T Industrial Ethernet Switch, dual 9V~36VDC input; -20°C to 60°C; E-Marked |
| 8351-1142 | IGS-0008B-24V-E | 8 10/100/1000T Industrial Ethernet Switch, dual 9V~36VDC input; -40°C to 75°C; E-Marked |
| 8351-114 | IGS-0008B-12V | 8 10/100/1000T Industrial Ethernet Switch, dual 9V~60VDC input; -20°C to 60°C |
| 8351-115 | IGS-0008B-12V-E | 8 10/100/1000T Industrial Ethernet Switch, dual 9V~60VDC input; -40°C to 75°C |
