OVERVIEW
Lantech I(P)GS-0208Cis a high performance all Gigabit switch with 8 10/100/1000T + 2x 10/100/1000T/Dualspeed 100/1000M SFP combo (w/8 PoE 802.3af/at Injectors).
Dual 48V or12V input with max PoE budget
Equipped withDC 12~48V redundant input power, the Lantech IPGS-0208C-12V is able to boostinput voltage from 12V to 48V then feed each PoE port up to 15.4Watts/30Wattswith total PoE power budget 80W at 12V, 120W at 24V input or 240W at 48V input.
Highreliability and extended working temperature
Lantech IPGS-0208Cprovides ±2000V EFT and ±6000V ESD protection, which can reduce unstablesituation caused by power line and Ethernet. It has high reliability androbustness coping with extensive EMI/RFI phenomenon, environmental vibrationand shocks usually found in Automation, transportation, surveillance, Wirelessbackhaul, Semi-conductor factory and assembly lines.
The -E modelcan be used in extreme environments with an operating temperature range of-40°C to 75°C.
The E-markingcertificate makes it the most suitable PoE switch for bus, carriage, othervehicles application as well as for industrial areas where the power source islimited with 12V but has demand of IP surveillance or VoIP applications. Only 24VDCinput system is applicable for E-mark* approval.
SPECIFICATIONS
Hardware Specifications
Standards
| [cite_start]IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T Ethernet, IEEE802.3z Gigabit fiber, IEEE802.3x Flow Control and Back Pressure, IEEE802.3at/af Power over Ethernet [cite: 1]
| |Switch Architecture
| [cite_start]Back-plane (Switching Fabric): 26Gbps [cite: 1]
| |Transfer Rate
| [cite_start]14,880pps for Ethernet port, 148,800pps for Fast Ethernet port, 1,488,000pps for Gigabit Ethernet / Gigabit Fiber port [cite: 1]
| |Mac Address
| [cite_start]16K MAC address table [cite: 1]
| |Jumbo frame
| [cite_start]10KB [cite: 1]
| |Connectors
| [cite_start]10/100/1000T: 8 x ports RJ-45 with Auto MDI/MDI-X function, 10/100/1000T/SFP Combo port: 2 x RJ-45 + 2 x 100/1000 SFP socket, Power & P-Fail connector: 1 x 6-pole terminal block [cite: 1]
| |Network Cable
|10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable, EIA/TIA-568 100-ohm (100m), 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable, EIA/TIA-568 100-ohm (100m), 1000Base-TX: 2-pair UTP/STP Cat. [cite_start]5/ 5E/ 6 cable, EIA/TIA-568 100-ohm (100m) [cite: 1]
| |Optical Cable
|1.25Gbps: Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm); Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm); 125Mbps: Multi mode: 0 to 2 km/ 5 km, 1310 nm (62.5/125 μm); Single mode: 0 to 30 km, 1310 nm (62.5/125 μm); WDM 1.25Gbps: Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm); WDM 125Mbps: Single mode: 0 to 20 km/ 40 km/ 60 km/ 80 km, 1310 nm (9/125 μm); [cite_start]0 to 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm) [cite: 1]
| |Protocol
| [cite_start]CSMA/CD [cite: 1]
| |LED
|Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red); Ethernet port: Link/Activity (Green), Speed (Amber); PoE : Link/Act (Green); [cite_start]Mini-GBIC: Link/Activity (Green), Speed (Amber) [cite: 1]
| |Operating Humidity
| [cite_start]5% ~ 95% (Non-condensing) [cite: 1]
| |Operating Temperature
| [cite_start]-20°C~60°C / -4°F~140°F (Standard model), -40°C~75°C / -40°F~167°F(-E model) [cite: 1]
| |Storage Temperature
| [cite_start]-40°C~85°C / -40°F~185°F [cite: 1]
| |Power Supply
|PoE model: 9~36VDC (24V model); 45~56VDC(48V model); 9.5V~56VDC(12V model), Non-PoE model: 9.5~60VDC (12V model); [cite_start]9~36VDC (24V model) [cite: 1]
| |PoE Budget
|80W at 12V input; [cite_start]120W at 24V input(12V model), 100W for 9~36VDC at 24V input (24V model), 240W for 45~56VDC at 48V input (48V model), (50-57VDC input is recommended for 802.3at 30W applications), Higher PoE budget can be applied upon request [cite: 1]
| |PoE pin assignment
|RJ-45 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W at 54~56VDC/15W at 48V~56VDC. Positive (VCC+): RJ-45 pin 1,2. [cite_start]Negative (VCC-): RJ-45 pin 3,6 [cite: 1]
| |Power Consumption
| [cite_start]10W [cite: 1]
| |Case Dimension

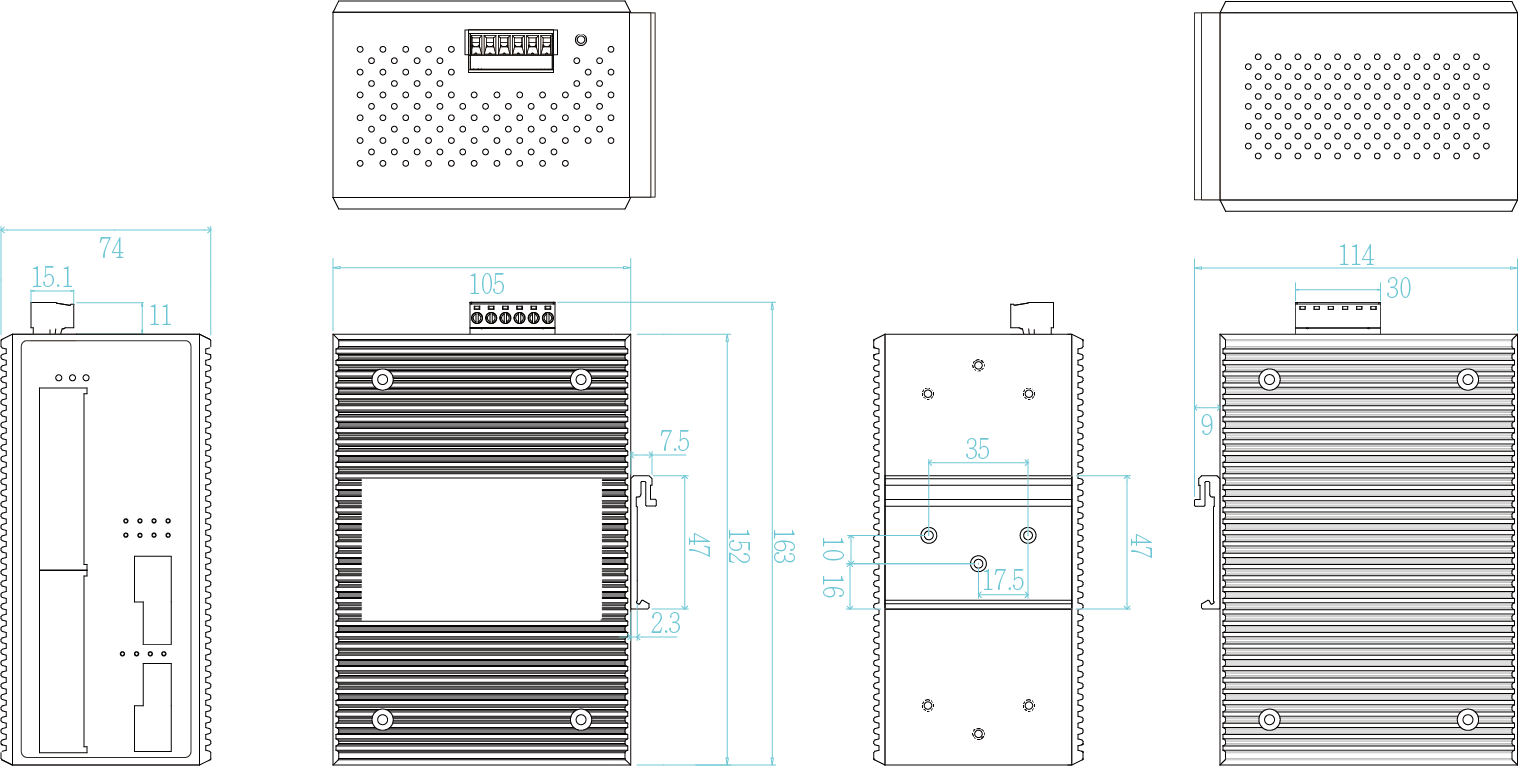

|Metal case. [cite_start]IP-30, 74 (W) x 114 (D) x 152 (H) mm [cite: 1]
| |Weight
| [cite_start]900 g [cite: 1]
| |Installation
| [cite_start]DIN Rail and Wall Mount Design [cite: 1]
| |Relay Alarm
|Provides one relay output for port breakdown, power fail and alarm. [cite_start]Alarm Relay current carry ability: 1A @ DC24V [cite: 1]
| |EMI & EMS
| [cite_start]EN 55011:2016, FCC Part 15 Class A, IEC/EN61000-6-2, CE EN55032 Class A, CE EN55024: CE EN61000-4-2 (ESD) Level 3, CE EN61000-4-3 (RS) Level 3, CE EN61000-4-4 (EFT) Level 3, CE EN61000-4-5 ED3 (Surge) Level 3, CE EN61000-4-6 (CS) Level 3, CE EN61000-4-8 (Magnetic field) Level 3 [cite: 1]
| |Safety
| [cite_start]EN62368 (LVD) [cite: 1]
| |Stability Testing
| [cite_start]IEC60068-2-31 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration) [cite: 1]
| |Vehicle certificate
| [cite_start]E13 marking (-24V model) [cite: 1]
| |MTBF
| [cite_start]NA [cite: 1]
|*Future Release
**Optional
ORDERING INFORMATION
dual 45~56VDC input; -20°C to 60°C | | 8350-999 | IPGS-0208C-48V-E | 8 10/100/1000T + 2 10/100/1000T/ Dual speed SFP combo w/8 PoE Mode A 802.3at/af 30W Industrial Switch;
dual 45~56VDC input; -40°C to 75°C | | 8351-001 | IPGS-0208C-12V | 8 10/100/1000T + 2 10/100/1000T/ Dual speed SFP combo w/8 PoE Mode A 802.3at/af 30W Industrial Switch;
dual 9.5~56VDC input; -20°C to 60°C | | 8351-002 | IPGS-0208C-12V-E | 8 10/100/1000T + 2 10/100/1000T/ Dual speed SFP combo w/8 PoE Mode A 802.3at/af 30W Industrial Switch;
dual 9.5~56VDC input; -40°C to 75°C | | 8350-9981
| IPGS-0208C-24V | 8 10/100/1000T + 2 10/100/1000T/ Dual speed SFP combo w/8 PoE Mode A 802.3at/af 30W Industrial Switch; dual 9~36VDC input; -20°C to 60°C | | 8350-9991
| IPGS-0208C-24V-E | 8 10/100/1000T + 2 10/100/1000T/ Dual speed SFP combo w/8 PoE Mode A 802.3at/af 30W Industrial Switch; dual 9~36VDC input; -40°C to 75°C | | 8351-0011 | IGS-0208C-12V | 8 10/100/1000T + 2 10/100/1000T/ Dual speed SFP combo Industrial Switch;
dual 9.5~60VDC input; -20°C to 60°C | | 8351-0021 | IGS-0208C-12V-E | 8 10/100/1000T + 2 10/100/1000T/ Dual speed SFP combo Industrial Switch;
dual 9.5~60VDC input; -40°C to 75°C | | 8350-9982
| IGS-0208C-24V | 8 10/100/1000T + 2 10/100/1000T/ Dual speed SFP combo Industrial Switch; dual 9~36VDC input; -20°C to 60°C | | 8350-9992
| IGS-0208C-24V-E | 8 10/100/1000T + 2 10/100/1000T/ Dual speed SFP combo Industrial Switch; dual 9~36VDC input; -40°C to 75°C |
