IPES-0016
16 10/100TX PoE at/af Industrial Unmanaged Ethernet Switch
OVERVIEW
Lantech IPES-0016 is a high performance 16 10/100TX industrial Ethernet switch w/16 PoE 802.3af/at ports.
Galvanic isolation for dual 24V/48V wide input range
The IPES-0016 supports IEEE802.3at/af standard which can feed HI-power up to 30W at each PoE port for big power consumption devices like PTZ IP camera, high power wireless AP etc. Maximal PoE budget supports up to 100W at 24V input.
The IPES-0016-24V accepts power input 9~36VDC and is compliant with ISO 7637-2 which protects switch from being damaged by high voltage that could be found at vehicle cranky start.
48V model accept 45~56VDC power input and can feed 48V output for PoE feeding in vehicle at max 240W @48V input.
E-marking certificate, High reliability and extended working temperature
Lantech IPES-0016 provides ±2000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet. It has high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in Automation, transportation, Wireless backhaul, Semi-conductor factory and assembly lines.
The -E model can be used in extreme environments with an operating temperature range of -40°C to 75°C.
The E-marking certificate makes it the most suitable switch for bus, carriage, other vehicles application as well as for industrial areas.
FEATURES
- 16 10/100TX industrial Ethernet switch w/16 PoE 802.3af/at ports (Total 16 Ports Switch)
- PoE budget 100W at 24V input; 240W at 48V input
- Dual 9V~36VDC with ISO7637-2 compliance (24V model)
- Dual 44~56VDC input (48V model)
- Back-plane (Switching Fabric): 3.2Gbps
- Provides EFT protection ±2000 VDC for power line
- Supports ±6000 VDC Ethernet ESD protection
- Galvanic isolation between power input and system/case ground; between Ethernet port and system/case ground; between power input and Ethernet port
- E-marking certificate for vehicle application (-24V model)
- Relay alarm output for power fail and alarm
- IP30 metal housing with DIN rail and Wall-mount** design
SPECIFICATIONS
Hardware Specifications
Standards
|IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3x Flow Control and Back Pressure
IEEE802.3at/af Power over Ethernet
Switch Architecture
|Back-plane (Switching Fabric): 3.2Gbps
| |Transfer Rate
|14,880pps for Ethernet port
148,800pps for Fast Ethernet port
Mac Address
|16K MAC address table
| |Connectors
|10/100TX: 16 x ports RJ-45 with Auto MDI/MDI-X function
Power & P-Fail connector: 1 x 6-pole terminal block
Network Cable
|10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
LED
|Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red);
Ethernet port: Link/Activity (Green)
Operating Humidity
|5% ~ 95% (Non-condensing)
| |Operating Temperature
|-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)
Storage Temperature
|-40°C~85°C / -40°F~185°F
| |Power Supply
|Dual 9~36VDC (24V model)
Dual 44~56VDC (48V model)
PoE Budget
|240W at 48V input (50-56VDC input is recommended for 802.3at 30W applications); 100W at 24V input; 80W at 12V input
Higher PoE budget can be applied upon request. **
PoE pin assignment
|RJ-45 port # 1~#16 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides up to 30W (-14 Model: RJ-45 port # 1~#14 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides up to 30W)
Positive (VCC+): RJ-45 pin 1,2
Negative (VCC-): RJ-45 pin 3,6
Power Consumption
|13W exclude PoE loads
| |Galvanic Isolation
|Between power input and system/case ground
Between Ethernet port and system/case ground
Between power input and Ethernet port

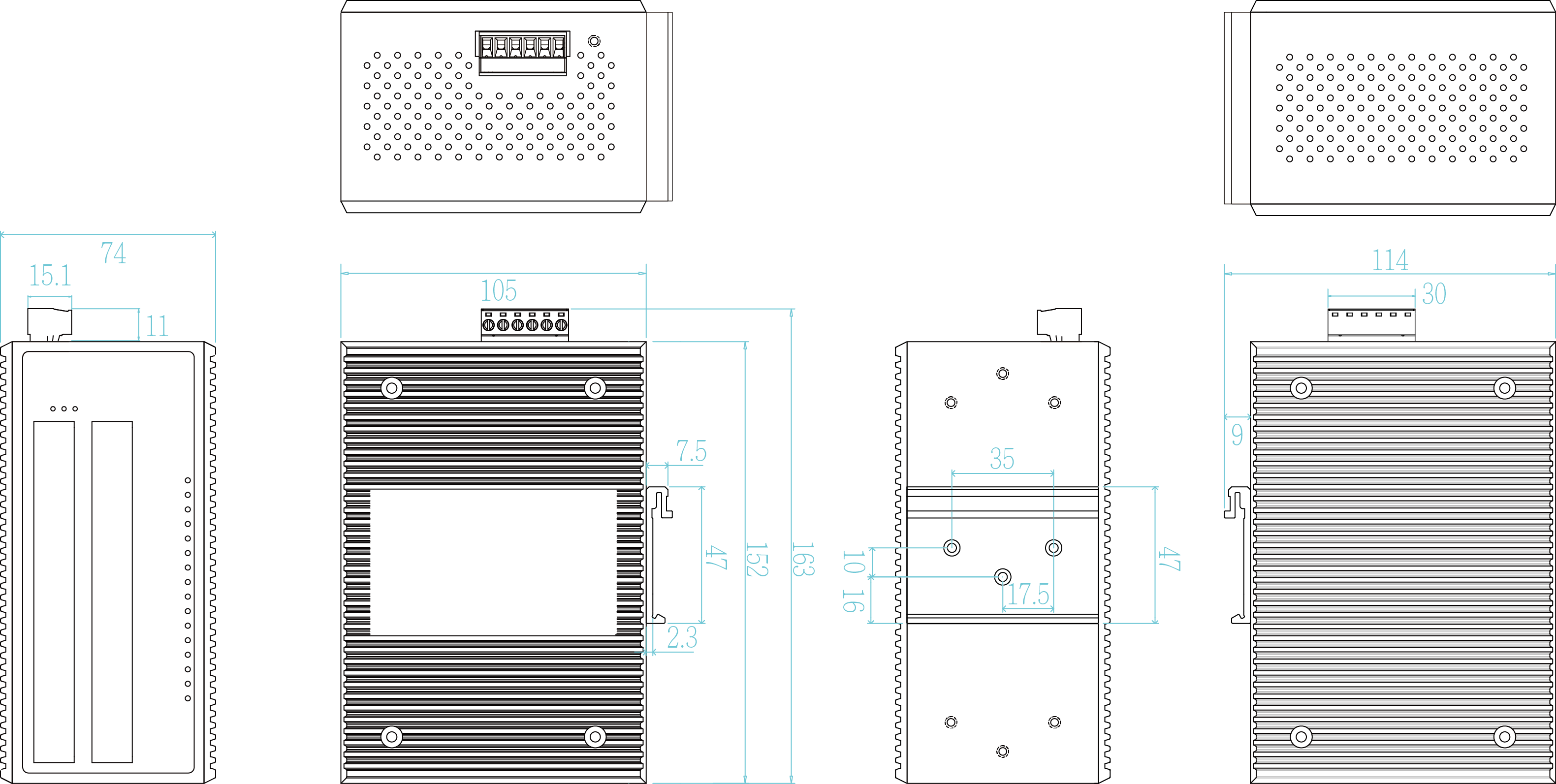

Case Dimension
|Metal case IP-30
74 (W) x 105 (D) x 152 (H) mm
Weight
|900 g
| |Installation
|DIN Rail and Wall Mount** Design
| |Relay Alarm
|Provides one relay output for power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V
EMI & EMS
|FCC Class A, CE EN55011,
CE EN55032, CE EN55024,
CE EN61000-4-2, CE EN61000-4-3,
CE EN61000-4-4, CE EN61000-4-5,
CE EN61000-4-6, CE EN61000-4-8,
CE EN61000-6-2, CE EN61000-6-4
Safety
|IEC/BS EN IEC 62368-1 2020/A11:2020
| |Vehicle certificate
|E-Marking with E13 granted approval (-24V model) Power input range 16.8~36VDC
| |MTBF
|927,784 hrs (standards: IEC 62380)
|*Future Release **Optional
ORDERING INFORMATION
All part no. with WALL are models with wall mount kit instead of DIN Rail
| IPES-0016-24V | 16 10/100TX Industrial Ethernet Switch w/16 PoE at/af up to 30W, dual 9~36VDC input; compliant with ISO7637-2; -20°C to 60°C |
| 8351-1281 | IPES-0016-14-24V | 16 10/100TX Industrial Ethernet Switch w/14 PoE at/af up to 30W, dual 9~36VDC input; compliant with ISO7637-2; -20°C to 60°C |
| 8351-1282 | IPES-0016-48V | 16 10/100TX Industrial Ethernet Switch w/16 PoE at/af up to 30W, dual 44~56VDC input; -20°C to 60°C |
| 8351-1283 | IPES-0016-14-48V | 16 10/100TX Industrial Ethernet Switch w/14 PoE at/af up to 30W, dual 44~56VDC input; -20°C to 60°C |
| 8351-129 | IPES-0016-24V-E | 16 10/100TX Industrial Ethernet Switch w/16 PoE at/af up to 30W, dual 9~36VDC input; compliant with ISO7637-2; -40°C to 75°C |
| 8351-1291 | IPES-0016-14-24V-E | 16 10/100TX Industrial Ethernet Switch w/14 PoE at/af up to 30W, dual 9~36VDC input; compliant with ISO7637-2; -40°C to 75°C |
| 8351-1292 | IPES-0016-48V-E | 16 10/100TX Industrial Ethernet Switch w/16 PoE at/af up to 30W, dual 44~56VDC input; -40°C to 75°C |
| 8351-1293 | IPES-0016-14-48V-E | 16 10/100TX Industrial Ethernet Switch w/14 PoE at/af up to 30W, dual 44~56VDC input; -40°C to 75°C |
