IPGS-0101T
Industrial Gigabit Switch with PoE 802.3at/af up to 30W
OVERVIEW
The Lantech IPGS-0101T is an Industrial high power PoE Gigabit Switch that can feed up to 30W under 802.3at/af standard. Lantech IPGS-0101T is fully compliant with IEEE 802.3at/af standard. The 12V model can take 9.5~56VDC input voltage for PoE feeding up to 30W which is suitable for vehicle application. Lantech IPGS-0101T is the best industrial PoE Gigabit Switch for outdoor IP CAM, PTZ, heater, wireless AP etc.
Hardened industrial design with extended temperature range; CE, FCC, LVD, AREMA** part 11.5.1 compliance
It provides ±2000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet. It has high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines.With CE, FCC, LVD and AREMA** part 11.5.1 verification, Lantech IGC-0101DSFP is best for outdoor community, vehicle, railway, process control automation etc. For more usage flexibilities, IPGS-0101T-E supports wide operating temperature from -40°C to 75°C.
FEATURES
- System Interface/Performance
- 1x 10/100/1000T + 1 10/100/1000T with PoE switch
- Compliant with 802.3at/af PoE standard
- Output PoE up to 30W
- Voltage booster design from 12V input to 54V output. (12V model)
- Can extend Power over Ethernet installations beyond 100 Meters
- Dual Power Input with Terminal Block X2
- Metal Housing with DIN Rail and Wall Mount** Design
- Supports Wide Operating Temperature -40°C~ 75°C (E model)
- Power polarity protection
- Relay alarm output for system events**
- AREMA** part 11.5.1 compliance (-AMA models)
SPECIFICATIONS
Hardware Specifications
Standards
|IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/100Base-FX
IEEE802.3ab 1000Base-T
IEEE802.3x Flow Control and Back pressure
IEEE802.3at/af PoE/PSE
Switch Architecture
|Store and Forward
| |Connectors
|RJ-45 socket x 2
Power & P-Fail** connector: 1 x 6-pole terminal block
Network Cable
|10Base-T: UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
PoE pin assignment
|Positive (VCC+): RJ-45 pin 1,2.
Negative (VCC-): RJ-45 pin 3,6.
LED
|PW1 (Green); PW2 (Green); Fault (Red); PoE (Green)
| |Power Supply
|Input Voltage: 44V ~ 56VDC (48V model)
Input Voltage : 9.5V ~56VDC (12V model)
Power Consumption
|5 Watts max.
| |PoE Budget
|30W
Higher PoE budget can be applied upon request. **
Polarity protection
|Power polarity protection
| |Relay Alarm**
|Provides one relay output for power fail alarm.
Alarm Relay current carry ability: 1A @ DC24V
Operating Humidity
|5% ~ 95% (Non-condensing)
| |Operating Temperature
|-20°C~60°C /-4°F~140°F (standard model)
-40°C~75°C / -40°F~167°F (E model)
Storage Temperature
|-40°C~85°C / -40°F~185°F

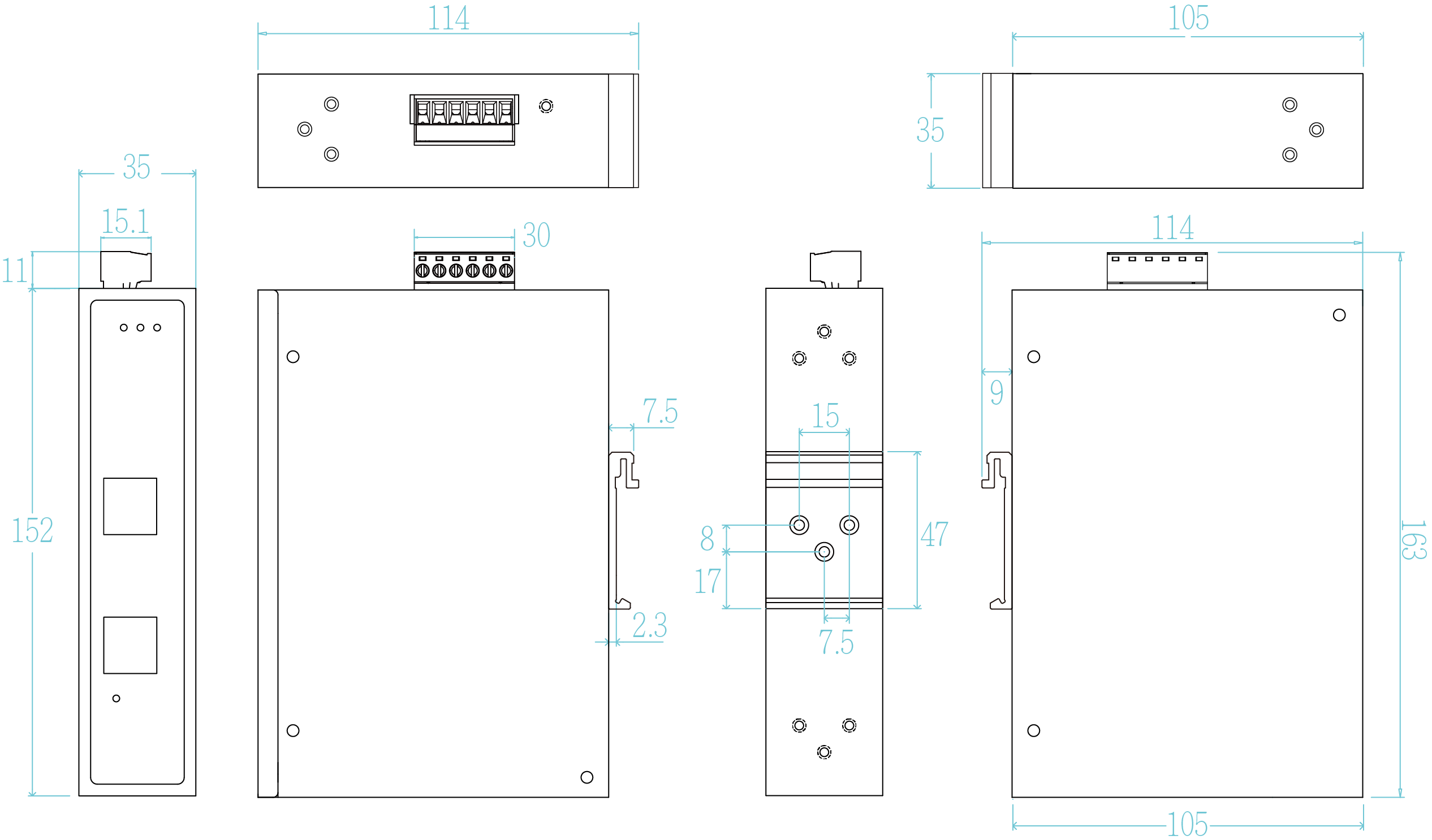

| |Case Dimension
|Metal case. 35 (W) x 105 (D) x 152 (H) mm
| |Installation
|DIN Rail and Wall Mount* Design
| |EMI & EMS
|FCC Part 15 Class A
IEC/EN61000-6-2
CE EN55032 Class A
CE EN55024: CE EN61000-4-2 (ESD) Level 3
CE EN61000-4-3 (RS) Level 3
CE EN61000-4-4 (EFT) Level 3
CE EN61000-4-5 ED3 (Surge) Level 3
CE EN61000-4-6 (CS) Level 3
CE EN61000-4-8 (Magnetic field) Level 3
AREMA** part 11.5.1 compliance
Stability Testing
|IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock),
IEC60068-2-6 (Vibration)
MTBF
|TBC (standards: IEC 62380)
|**Optional
