IWMR-3003
Industrial Multifunction VPN Router w/up to 2x WiFi 11ac + up to 2 LTE 4G + up to 4 serial ports + 3 Gigabit Ethernet (incl.1 PD) w/Load Balancing, VPN, Protocol Gateway, Storage**; 12V/ 24V input
OVERVIEW
Lantech IWMR-3003 series is a next generation industrial multi-function VPN router w/up to 2x 802.11ac Wi-Fi + up to 2x LTE modem + 3 x Gigabit Ethernet (incl.1 PD) +4 serial ports (RJ45 model only) that supports advanced function of VPN, Load-Balancing, EMMC Flash Storage**, Protocol gateway(Modbus) , Wi-Fi roaming and LTE quad SIM fail-over for industrial applications. The dual core CPU with 1.6GHz + 256M flash enables the router to multi-task smoothly.
Dual concurrent LTE design 4G/3G for load-balancing
With dual LTE module design (2L model), 4 SIM card slots, IWMR-3003 can allow auto-swap, failover & failback between multiple service providers for real non-stop connection. With concurrent LTE modules, it can also allocate bandwidth by “Load Balancing with 8 schemes between multiple WANs. With one mobile LTE module, 2 SIM card slots, IWMR-3003 provides redundant link between two service providers. Both GPS and Russian GLONASS systems are supported.
Optional EMMC Flash storage**
The optional EMMC flash storage on the router can offer 8G/16G/32G capacity.
Optional eSIM**
By replacing physical SIM, optional eSIM chip will allow users to purchase data plans at low prices from local carriers in the world.
IEEE 802.11ac dual band radio up to 2.6Gbps bandwidth
With IEEE 802.11ac capability, IWMR-3003 can operate either 5GHz or 2.4GHz bands, offering the maximum speed of 2.6Gbps bandwidth (1.3Gbps per 1AC). It is also compatible with 802.11g/n that can work with 2.4GHz for longer range transmission.
The Wi-Fi 11ac supports AP/Bridge/AP Client modes can be diverse for most of wireless application. Working with load-balancing “Priority” mode, the AP client can enable router to transmit on Wi-Fi with first priority.
MIMO technology with 3T3R and SMA type connectors
Lantech IWMR-3003 series adapts MIMO technology with smart antenna transmission and reception for 3T3R. With six external detachable omni connectors and optional antennas, IWMR-3003 can have better Wi-Fi coverage.
Support AP/Bridge/Client mode, Mesh roaming
IWMR-3003 supports AP/Bridge/Client mode for different applications. It also supports client-base roaming to swap between the APs in a network.
Built-in Wireless Mesh network（WMN）
IWMR-3003 supports Mesh networks composed of different nodes. The set of SSIDs allow the wireless client to roam freely without the need for complicated account management. With Mesh protocol, it can provide a reliable, scalable, stable and seamless network topology.
Wireless WMM QoS
IWMR-3003 supports 802.11e standard which defines a set of Quality of Service for wireless LAN applications as well as WMM (Wi-Fi multimedia)
Advanced security & 16 SSIDs
The security support standards including 64/128bits WEP, WPA/WPA2 PSK (TKIP, AES), 802.1x ensures the best security and active defense against security treads. Lantech IWMR-3003 support up to 16 SSIDs, each SSID has its independent security and encryption.
Load Balancing with 5 mechanisms for multi-WANs
IWMR-3003 supports Load Balancing for LTE/WAN connections. There are five schemes for Load Balancing function:
Pack
|Algorithm
|Description
| | --- | --- | --- | |Basic
|Fixed
|All traffic will be distributed to a single WAN.
| | |Failover
|Routes connections through preferred WAN link while others stand-by. Sequentially activating another link if the preferred link fails.
| | |Priority
|Select the active WAN according to priority.
| | |Weighted Round-Robin
|Evenly distribute the traffic over all working WAN links in circular order according to the specified weights.
| | |Custom Route
|Routing through the selected WAN for each specific traffic, ex: TCP/UDP port number and IP address.
|4 port serial connection, Modbus gateway
It builds in 4 port serial connection for RS232, RS422, RS485. (RJ45 model only)The built-in Modbus gateway can convert Modbus RTU/ASCII to Modbus TCP for device control.
VPN and firewall
Besides traditional VPN peer to peer tunneling, IWMR-3003 support latest Multi-Site VPN function that is an efficient way for Mesh tunneling. The registration is under cloud service and encrypted by SSH makes the connection easy and safe. It supports Multi-Site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE, IPGRE, and NAT for various VPN applications.The built-in Layer-4 firewall includes DDoS, IP address filter / Mac address filter / TCP/UDP port number
Support Routing Protocol: Static route / RIPv2 / OSPF / BGP / EIGRP
Lantech router series supports two routing methods: static routing and dynamic routing. Dynamic routing makes use of RIPv2, OSPF, EIGRP and BGP. The user can either choose one routing method to establish the routing table.
Email notice; Event log; Remote Web control
In case of events, the IWMR-3003 will immediately send email and trap. When the router is at remote area with limited access, Web control can help to get router status or remotely reboot.
12V/24V input voltage selection: dual 9~56VDC (12V model) or dual 9~36VDC (24V model)
The IWMR-3003 is able to work at dual 9~56VDC (12V model) or dual 9~36VDC (24V model).
Built-in 3 port Gigabit Ethernet
3 port Gigabit Ethernet can be supported as 2LAN+1WAN or 3LAN or 3 WAN models.
Graphic Wi-Fi & LTE signal strength
The graphic Wi-Fi & LTE signal strength shows connection status at a glance.
USB port for back up, restore configuration and upgrade firmware; Dual image firmware
The built-in USB port can upload/download the configuration through USB dongle for router replacement. It supports dual-image firmware to choose which one to start.
Ignition Sensing** (24V-IGN model)
Ignition sense allows you to delay power off the router with a designated time delay.
Editable login page of captive portal
The IWMR-3003 supports editable captive portal function that allows administrator to force end-users redirect to authentication page.
Ruggedized industrial design and FCC, CE certificate
The IWMR-3003 is designed to meet with outdoor network environment with IP30 (IP43 for M12 model) housing. It passed serious tests under extensive Industrial EMI and environmental vibration and shocks standards. With CE & FCC radio certification for Wi-Fi and LTE, the IWMR-3003 is best for outdoor community, vehicle, and process control automation applications.For more usage flexibilities, IWMR-3003 supports wide operating temperature from -40°C to 65°C
EN50155, EN61373 verification; E-marking** certification; ITxPT** design
The IWMR-3003 series is also applicable for railway on-board/track side, vehicle and mining applications for more usage flexibilities. The series is verified with EN50155, EN61373, and EN45545 for railway applications (Except 24V-IGN model). The E-marking certificate (24V model) and ITxPT design (24V-IGN model).
*Future Release
**Optional
FEATURES
- High Speed Air Connectivity: WLAN interface support up to 2.6Gbps link speed(2AC) or 1.3Gbps(1AC)
- Built-in 3 Gigabit ports and 2LAN+1WAN or 3 LAN or 3 WAN (incl.1 PD)
- Support AP/Bridge/Client/MESH mode
- Support Client-base roaming
- Support 802.11s Wireless Mesh Network
- EMMC-FLASH storage** 8/16/32G
- eSIM** to allow data-plan globally
- Dual band 2.4G and 5GHz with 802.11ac/a/b/g/n
- Support 2.4Ghz operating within the following frequency bands:
- 2.412~2.472 GHz
- Support 5Ghz operating within the following frequency bands:
- 5.180~5.825 GHz
- MIMO smart antenna technology with 3T3R with 6 SMA type connectors and optional antennas
- IEEE 802.11h DFS and automatic TPC
- Output power: <24dBM
- Transmit power adjustment
- VAP (virtual access point) support up to 16 SSIDs
- Operation modes: AP / Bridge / Client
- Traffic control for each SSID
- Band preference for same SSID services on dual band
- Highly Security Capability: WEP64/128bits/ WPA/ WPA-PSK (TKIP, AES)/ WPA2/ WPA2-PSK (TKIP, AES)
- HTTP/HTTPS/Telnet/SSH & Administration access
- Support IPv6 & IPv4 protocol
- Support Routing Protocol: Static route / RIPv2 / OSPF / BGP / EIGRP
- Radius Authentication, EAP-TLS, EAP-TTLS, PEAP; SSID broadcast disable supported
- Multiple channel bandwidths of 20MHz and 40MHz for 2.4G.
- Multiple channel bandwidths of 20MHz, 40MHz and 80MHz for 5G only.
- Wi-Fi Multimedia (WMM) and 802.11e traffic prioritization
- Support Multi-Site VPN for Mesh tunneling as well as Open VPN, L2TP over IPsec, IPsec, L2 over GRE, IPGRE and NAT for secured network connection
- The built-in Layer-4 firewall includes DDoS, IP address filter / Mac address filter / TCP/UDP port number
- Support SNMP v1/v2c/v3
- NAT/DMZ/Port Forwarding
- Dual concurrent LTE 4G/3G design (2L model) for auto-swap/failover/failback between multiple ISPs for continuous service (four SIM card slots)
- One LTE 4G/3G w/ 2 SIM card design (1L model) for mobile redundancy
- GPS & GLONASS connection
- Load Balancing supports 5 mechanism between multiple WANs
Pack
|Algorithm
|Description
| | --- | --- | --- | |Basic
|Fixed
|All traffic will be distributed to a single WAN.
| | |Failover
|Routes connections through preferred WAN link while others stand-by. Sequentially activating another link if the preferred link fails.
| | |Priority
|Select the active WAN according to priority.
| | |Weighted Round-Robin
|Evenly distribute the traffic over all working WAN links in circular order according to the specified weights.
| | |Custom Route
|Routing through the selected WAN for each specific traffic, ex: TCP/UDP port number and IP address.
|- Built-in 4 x serial ports (RS232/RS422/RS485) (RJ45 model only)
- Built-in Modbus gateway converting Modbus RTU/ASCII to Modbus/TCP
- Event alerting by Syslog, SNMP Trap, Email, Relay; Permanent local log rotation / Maxi 1K records
- Remote Web control to get status or re-boot by Web
- Built-in RTC to keep track of time always
- Support SNTP to synchronize system clock
- Support LLDP discovery protocol
- Support DHCP Server and Client
- Reset button for factory default mode
- Graphic LTE & WIFI signal strength
- Firmware upgradeable through TFTP/HTTP
- Configuration backup and restoration
- Supports text configuration file for system quick installation
- USB port to upload/download configuration by USB dongle
- Support editable captive portal login page
- IP30 (RJ45 model)/ IP43 (M12 model) housing for industrial environment
- RJ45 model: DIN-Rail and Wall-mount** installation
- M12 model: Wall-mount installation
- Supports 2DI / 2DO (Digital Input / Output) (RJ45 model)
- Operation temperature -40°C to 65°C
- Wide range power input voltage: Dual 9~56VDC (12V model); Dual 9~36VDC (24V model)
- ITxPT design w/ ignition function** (24V-IGN model)
- E-marking** certification (24V model)
- EN50155 & EN61373 verification (Except 24V-IGN model)
*Future Release
**Optional
SPECIFICATIONS
WLAN Interface
Radio Frequency Type
|DSSS, OFDM
| |Wireless Standard
|IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Wireless bandwidth
|5GHz: Up to 1300Mbps
2.4GHz: Up to 450Mbps
Modulation
|802.11b: DSSS
802.11a/g:
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n:
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac:
OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
Operating Frequency
|IEEE 802.11 a/b/g/n ISM Band, 2.412GHz~2.472GHz, 5150MHz~5850MHz
| |Transmission Rate
|IEEE802.11ac: up to 1300Mbps
IEEE802.11b: 1 / 2 / 5.5 / 11 Mbps
IEEE802.11a/g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps
IEEE802.11n: up to 450Mbps
IEEE 802.11b/g/n(2.4Gbps)
|Output Power Tx +/- 2dB(per chain)
18dBm @ 1~11Mbps
18dBm @ 6~54Mbps
20/20dBm @ MCS0~MCS7 (HT20/40)
Receiver Sensitivity Rx +/- 2dB
≦-95dBm @ 1~11Mbps
≦-92dBm @ 6~18Mbps
≦-88dBm @ 24Mbps
≦-85dBm @ 36Mbps
≦-81dBm @ 48Mbps
≦-80dBm @ 54Mbps
≦-94dBm @ MCS0 (HT20/40)
≦-76dBm @ MCS7 (HT20/40)
IEEE 802.11a/n/ac(5Gbps)
|Output Power Tx +/- 2dB(per chain)
20dBm @ 6~24Mbps
16dBm @ 36~54Mbps
19/18dBm @ MCS0 (HT20/40)
16/16dBm @ MCS7 (HT20/40)
19/18/18dBm @ MCS0 (VHT20/40/80)
13/13/13dBm @ MCS8 (VHT20/40/80)
13/13dBm @ MCS9 (VHT40/80)
Receiver Sensitivity Rx +/- 2dB
≦-92dBm @ 6~18Mbps
≦-86dBm @ 24Mbps
≦-84dBm @ 36Mbps
≦-81dBm @ 48Mbps
≦-80dBm @ 54Mbps
≦-93dBm @ MCS0 (HT20/40)
≦-71dBm/≦-80dBm @ MCS7 (HT20/40)
≦-90dBm @ MCS0 (VHT20/40/80)
≦-69dBm @ MCS8 (VHT20/40/80)
≦-66dBm @ MCS9 (VHT40/80
Encryption Security
|WEP : (64-bit ,128-bit key supported)
WPA /WPA2 : IEEE802.11i(WEP and AES encryption)
WPA-PSK (256-bit key pre-shared key supported)
EAP,MD5,EAP,TLS,EAP,TTLS,EAP
PEAP
Wireless Security
|SSID broadcast disable
|Cellular Interface
Location Solutions
|GPS, Glonass
| |Band Options
|Europe & North America (EUNA model)
LTE = B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41 (TDD)
DC-HSPA+/ HSPA+/ HSPA/ UMTS = B1, B2, B3, B4, B5, B8
Data Rates – LTE
|Europe & North America (EUNA model)
Downlink (Cat 6):
FDD: 300 Mbps
TDD: 222 Mbps
Uplink (Cat 6):
FDD: 50 Mbps
TDD: 26 Mbps
Physical Ports & System
Connectors

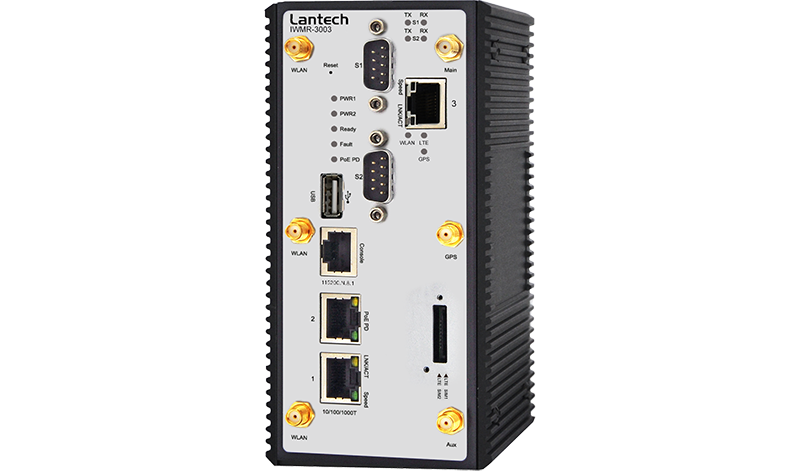

|RJ45 model
10/100/1000T: 3 x ports RJ 45 with Auto MDI/MDI-X function (one port PD)
USB x 1
Console connector: 1 x RJ 45
Serial connector : 2 or 4 x DB9
Power & P-Fail connector: 1 x 6-pole terminal block
SIM card slots : 4(2L) or 2(1L)

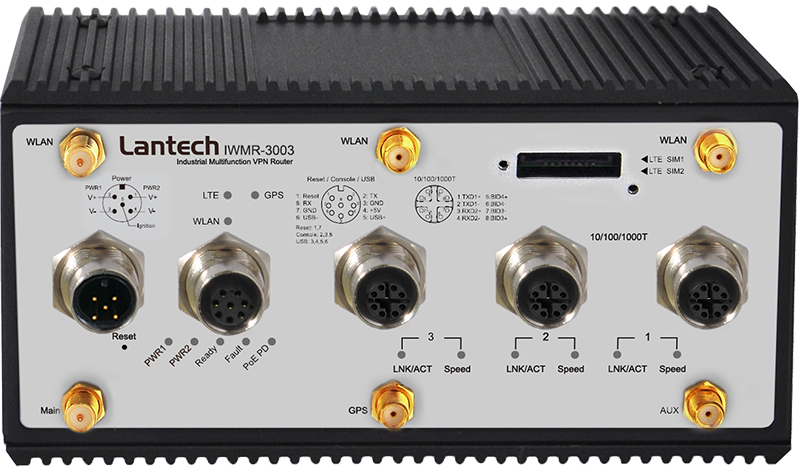

M12 model
10/100/1000T: 3 x M12 8-pole X-coded Female with Auto MDI/MDI-X function (one port PD)
Power & P-Fail connector: M12 5-pole A-coded Male
Reset/ Console/ USB connector: M12 8-pole A-coded Female
SIM card slots : 4(2L) or 2(1L)
Antenna Connectors
|2L-1AC model
SMA connector for LTE: 4 (female)
SMA connector for GPS: 2 (female)
RP-SMA connector for Wi-Fi 1AC: 2 (female)
1L-2AC model
SMA connector for LTE: 2 (female)
SMA connector for GPS: 1 (female)
RP-SMA connector for Wi-Fi 2AC: 4 (female)
Serial Band Rate
|1000Kbps high data rate,250kbps normal for RS232 ; 20Mbps high data rate,250kbps normal for RS422/RS485 (RJ45 model only)
| |Serial Data Bits
|5, 6, 7, 8
| |Serial Parity
|odd, even, none, mark, space
| |Serial Stop Bits
|1, 1.5, 2
| |RS-232
|TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
| |RS-422
|Tx+,Tx-, Rx+, Rx-,GND
| |RS-485 (2-wire)
|Data+, Data-,GND
| |Isolation protection
|Input power to I/O: 1.5KV isolation
Input power to Ethernet 1.5KV isolation
EMMC Storage**
|8/16/32 GB
| |DI/DO
|2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA
LED Indicators
Power & System indicator
|Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red), Storage (Green), Serial (Green), Ready (Green)
| |10/100/1000Base-T(X) port indicator
|Link/Activity (Green), Speed (1000T: Yellow; 10/100TX: off)
| |LTE
|Green: Link/Act
| |GPS
|Green: Link/Act
| |WLAN
|Green: Link/Act
| |Fault
|Red: Ethernet link down or power down
|Fault Contact
Relay
|Relay output to carry capacity of 1A at 24VDC
|Power
Input power
|Dual DC input, 9~56VDC (12V model)
Dual DC input, 9~36VDC (24V model)
Power consumption (Typ.)
|20 Watts
|Physical Characteristic
Enclosure
|IP 30 Metal case (RJ45 model)
IP 43 Metal case (M12 model)

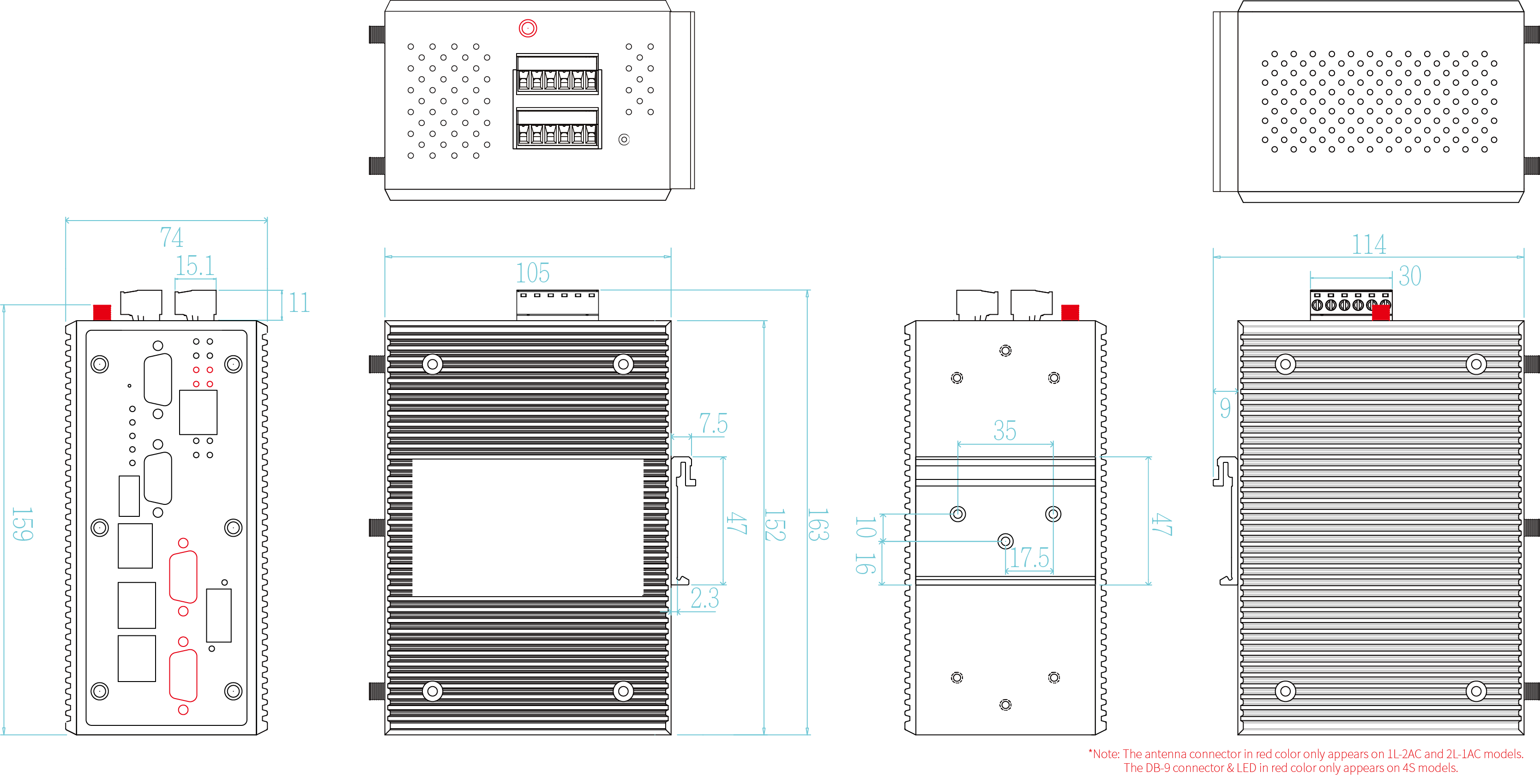

Dimension
|RJ45, 12V/ 24V model:
74 (W) x 114 (D) x 152 (H) mm

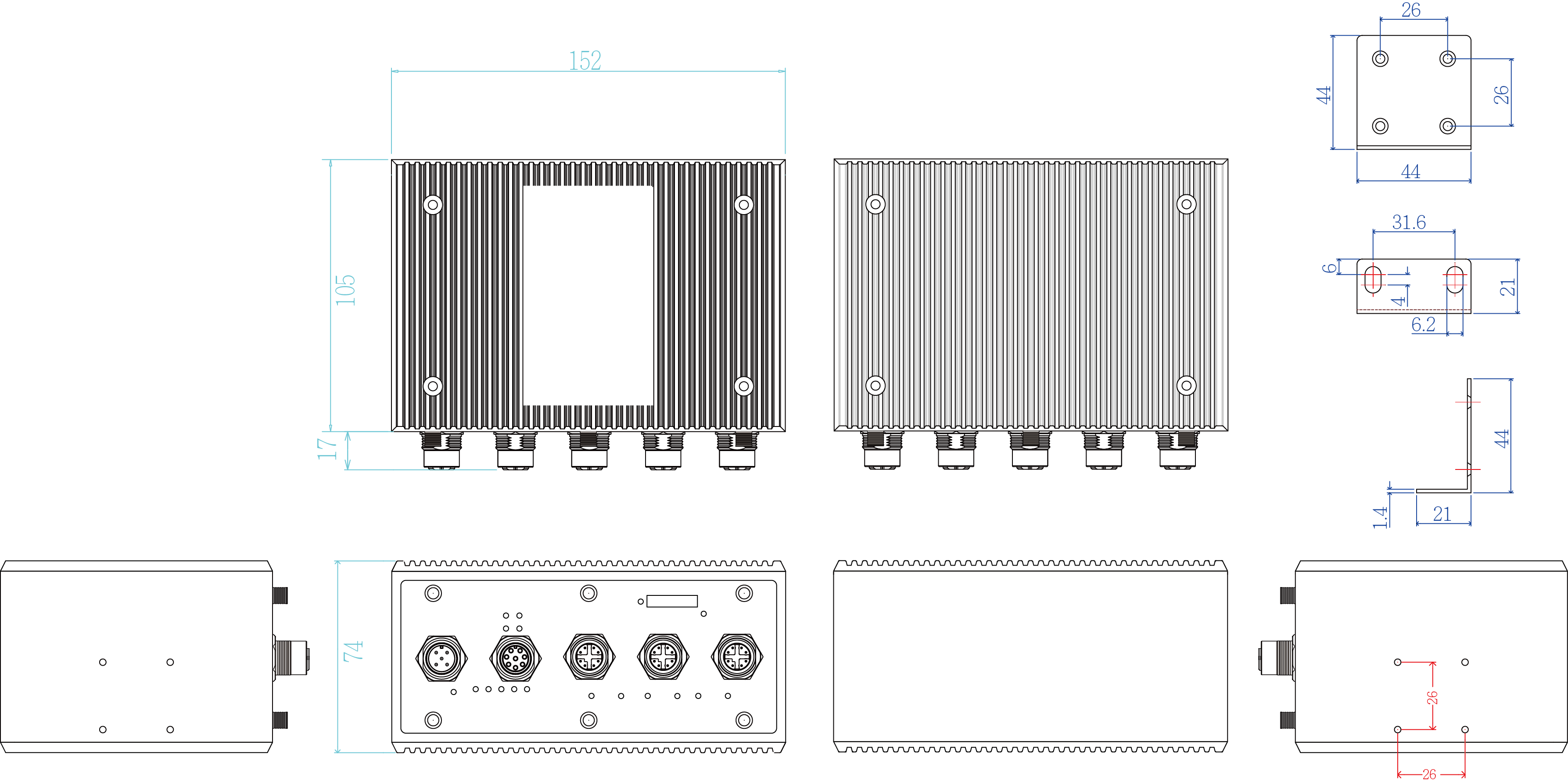

M12 model:
74 (W) x 122 (D) x 152 (H) mm
Weight
|900 g
| |Installation
|RJ45 model: DIN-Rail and Wall-mount** installation
M12 model: Wall-mount installation
Environmental
Storage Temperature
|-40°C ~ 85°C (-40°F ~ 185°F)
| |Operating Temperature
|-40°C ~ 65°C (-40°F ~ 149°F)
| |Operating Humidity
|5% to 95% Non-condensing
|Regulatory Approvals
Safety
|EN 62368-1
| |EMC
|FCC Part 15B Class A,
ICES-003 ISSUE7,
EN 55032: 2015,
EN 55024: 2015
IEC 61000-6-2,
IEC 61000-6-4
BS EN55032,
BS EN55024
EMS
|IEC 61000-4-2 (ESD),
IEC 61000-4-3 (RS),
IEC 61000-4-4 (EFT),
IEC 61000-4-5 (Surge),
IEC 61000-4-6 (CS),
IEC 61000-4-8 (PFMF)
BS EN61000-4-2,
BS EN61000-4-3,
BS EN61000-4-4,
BS EN61000-4-5,
BS EN61000-4-6,
BS EN61000-4-8,
Radio Frequency
|EN 301 489-1,
EN 301 489-17,
EN 301 489-19,
EN 301 489-52,
EN 302 502,
EN 301 893,
EN 300 328,
EN 301 908-1※,
EN 303 413,
EN 62311
Stability Testing
|IEC 60068-2-27 (Shock)
IEC 60068-2-31 (Shock)
IEC 60068-2-64 (Vibration)
IEC 60068-2-80 (Vibration)
Vehicle Certificate
(24V model)
E13 marking** (UN ECE R10)
| |Vehicle Compliance
(24V model)
UN ECE R118, ITxPT design**
(ITxPT design is IGN model only)
Railway Compliance
(Except -IGN model)
EN50155
EN61373
EN45545
IEC 60571
MTBF
|1,161,227hrs (standards: IEC 62380)
|Software
IPv6/4
|Present
| |Operation Mode
|AP/Bridge/Client/MESH mode
| |Login Security
|Supports IEEE802.1x Authentication/RADIUS
| |Access Security
|HTTP/HTTPS/Telnet/SSH & Administration; SNMP v1/v2/v3 access for authentication via MD5/SHA(v3) and Encryption via DES/AES(v3)
| |Routing
|Static route / RIPv2 / OSPF / BGP / EIGRP
| |Protocol
|PPPoE Client,DHCP server/client, Adjustable MTU, Port forwarding (NAPT), DMZ; NAT, SNTP, Firewall(Firewall(DDoS; IP address filter / Mac address filter / TCP/UDP port name),VRRP, DDNS
| |Management
|SNMP v1,v2c,v3/ Web/Telnet/CLI
| |Roaming
|Client-base roaming
| |MESH
|Support 802.1s
| |WMM
|Wi-Fi multimedia and 802.11e traffic prioritization
| |Security
|WEP64/128bits/ WPA/ WPA-PSK (TKIP,AES)/ WPA2/ WPA2-PSK (TKIP,AES)/SSH/SSL/HTTPS
| |Authentication
|Radius Authentication, EAP-TLS, EAP-TTLS, PEAP; SSID broadcast disable supported
| |SSID
|16 sets
| |Timer
|Built-in Real Time Clock to keep track of time always(RTC)
| |Discovery
|IEEE 802.1ab Link Layer Discovery Protocol (LLDP)
| |SNMP trap
|Device cold / warm start
Port link up / link down
DI / DO high / low
Graphic signal display
|Graphic LTE & Wi-Fi signal strength & TX / RX rate display
| |Remote Web control
|To reboot or get status of router by WebUI
| |Captive portal
|Editable captive portal login page
| |Maintenance
|Firmware upgradeable through TFTP/HTTP
| |Configuration backup & restore
|Supports text configuration file for quick system installation
USB port to upload/download firmware by USB dongle
Software - Load Balancing
5 schemes for multiple WAN(client mode)
|Pack
|Algorithm
|Description
| | --- | --- | --- | |Basic
|
Fixed
|All traffic will be distributed to a single WAN.
| | |Failover
|Routes connections through preferred WAN link while others stand-by. Sequentially activate another link if preferred link failure occurs.
| | |Priority
|Routes connections through preferred WAN link while others stand-by. Sequentially activate other links if overflow occurs.
| | |Weighted Round-Robin
|Evenly distribute the traffic over all working WAN links in circular order according to the specified weights
| | |Custom Route
|Routing through the selected WAN for each specific traffic ex: TCP/UDP port number and IP address.
|*Future Release
**Optional
※Standard test of the following bands are not listed in EN 301 908-1 report:
(EUNA not listed bands) LTE = B2, B4, B5, B12, B13, B25, B26, B29, B30, B41
WCDMA = B2, B4, B5;
ORDERING INFORMATION
- M12 models are available with -M12 model names (-2S/-4S/-2SA/-2SB/-2S2SA/-2S2SB are RJ45 models only)
- 2 RS422 models are available with -2SA; 2 RS485 models are available with -2SB; 2 RS232+ 2 RS422 models are available with -2S2SA; 2 RS232+ 2 RS485 models are available with -2S2SB (RJ45 models only)
- For 24V model are all available with -IGN model name (w/ ignition)
12V model
24V model
EMMC Flash Storage
OPTIONAL ACCESSORIES - Management System
OPTIONAL ACCESSORIES - Cellular Antenna
| 2G/3G/4G dipole antenna, 791-960/1710~2170/2500~2700MHz, 3dBi, SMA plug, EU |
| ANT11000042
| 2G/3G/4G dipole antenna, 704-960/1710~2170MHz, 3dBi, SMA plug, US |
| ANT11000046
| LTE hinge rotatable antenna, 698-960MHz, 1710-2690MHz, Diameter 10mm, Length 108mm, SMA Connector |
OPTIONAL ACCESSORIES - GPS Antenna
| SMA GPS antenna, 28dB, 300m |
OPTIONAL ACCESSORIES - Wi-Fi Antenna
| 2.4/5GHz SMA dipole Wi-Fi antenna, 3dBi (2.4GHz), 4dBi (5GHz) |
| ANT11000056
| Wi-Fi hinge rotatable antenna, WiFi Dual Bands 2.4/5.8GHz, SMA Connector |
OPTIONAL ACCESSORIES - Antenna Base
| Magnetic antenna base for Wi-Fi, RP SMA Jack Base, Length : 1M |
| ADA11000053
| Magnetic antenna base for 3G/4G, RP SMA Jack Base, Length : 1M |
