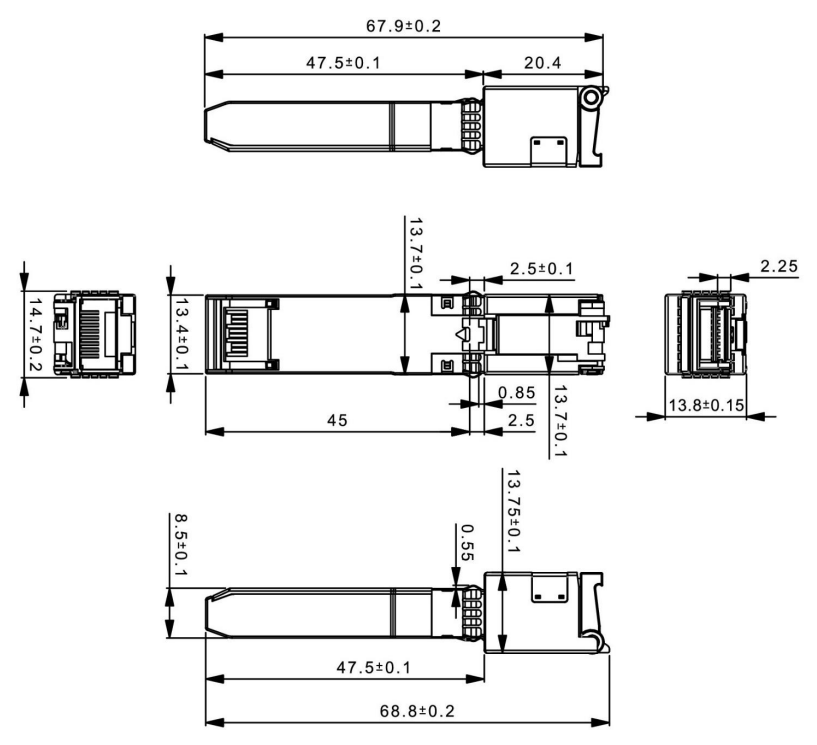

SFP+ 10Gbps Copper (30M)
10G Copper SFP+ Transceiver, 30M
OVERVIEW
Lantech SFP-10GB-T Small Form Factor Pluggable SFP+ Copper transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. The high performance designed is integrated full duplex data link at 10Gbps over four pair Category 6a/7 cable up to 30m links. It is specifically designed for high speed communication links that require 10 Gigabit Ethernet over copper cable.
FEATURES
- Compliant with IEEE 802.3az, 802.3ab and 802.3 standard
- Compliant with SFP+ MSA (SFF-8431, SFF-8432)
- Support 10GBase-T/ 5GBase-T/ 2.5GBase-T/ 1000Base-T
- Hot Pluggable
- Auto-negotiates with other 10GBase-T PHYs
- Auto-detect MDI/MDI-X
- Support RX_LOS function
- I2C 2-wire interface for serial ID and PHY register access
- RJ-45 connector
- Single +3.3V power supply
- 10G link length up to 30m with Cat.6a/7, 2.5G/5G link length up to 50m with Cat.5E, 1G link length up to 100m with Cat.5E
- RoHS Compliant
SPECIFICATIONS
Absolute Maximum Ratings
Parameter
|Symbol
|Min.
|Max.
|Unit
|Note
| | --- | --- | --- | --- | --- | --- | |Storage Temperature
|TsT
|-40
|+85
|°C
|| |
Supply Voltage
|VccT, VccR
|-0.5
|+4.0
|V
|| |
Storage Relative Humidity
|RH
|5
|95
|%
||
Recommended Operating Conditions
Parameter
|Symbol
|Min.
|Typ.
|Max.
|Unit
|Note
| | --- | --- | --- | --- | --- | --- | --- | |Case Operating Temperature
|ToP
|0
|-
|+70
|°C
|| |
Case Operating Temperature (-E model)
|ToP
|-40
|-
|+85
|°C
|| |
Supply Voltage
|Vcc
|+3.13
|+3.3
|+3.47
|V
|| |
Supply Current
|Icc
||
|
880
|mA
|| |
Power Consumption @30M
|PCW
||
|
2.9
|W
||
General Specifications
Vcc= 3.15V to 3.46V, Top = 0 C to 70 C
Parameter
|Symbol
|Min.
|Typ.
|Max.
|Unit
|Note
| | --- | --- | --- | --- | --- | --- | --- | |Data Rate
|DR
|1
|10.3125
||
GB/sec
|| |
Bit Error Rate
|BER
||
|
10-12
||
|
High-Speed Electrical Interface, Host to SFP+
Vcc= 3.13V to 3.47V, Top = 0 C to 70 C
Parameters
|Symbol
|Min.
|Typ.
|Max.
|Unit
|Note
| | --- | --- | --- | --- | --- | --- | --- | |TD+, TD- Input Voltage Swing
|VIN+ / VIN-
|250
||
1200
|mV
|1
| |RD+, RD- Output Voltage Swing
|Vout+ / Vout-
|350
||
800
|mV
|1
| |Rise Time (Receiver)
|Tr
||
175
||
ps
|2
| |Fall Time (Receiver)
|Tf
||
175
||
ps
|2
| |Tx Input Impedeance
|Zin
||
50
||
Ohm
|1
| |Rx Output Impedeance
|Zout
||
50
||
Ohm
|1
|Note1: Single ended
Note2: 20% to 80% value
High-Speed Electrical Interface, Cable to SFP+
Vcc= 3.13V to 3.47V, Top = 0 C to 70 C
Parameters
|Symbol
|Min.
|Typ.
|Max.
|Unit
|Note
| | --- | --- | --- | --- | --- | --- | --- | |TX Output Impedance
|Zout.TX
||
100
||
Ohm
|1
| |RX Output Impedance
|Zin.RX
||
100
||
Ohm
|1
|Note1: Differential for frequencies ranging from 125MHz to 10.3125GHz
Pin Assignment
Pin Description
Pin
|Name
|Function / Description
| | --- | --- | --- | |1
|VeeT
|Transmitter Ground
| |2
|TX_Fault
|Transmitter Fault Indication (1)
| |3
|TX_Disable
|Transmitter Disable – Turns off transmitter laser output (2)
| |4
|SDA
|2-wire Serial Interface Data Line (SDA: Serial Data Signal) (3)
| |5
|SCL
|2-wire Serial Interface Clock (SCL: Serial Clock Signal) (3)
| |6
|Mod_ABS
|Module Absent, connected to VeeT or VeeR in the module (3)
| |7
|RS0
|Rate Select 0, optionally controls SFP+ module receiver (5)
| |8
|Rx_LOS
|Receiver Loss of Signal Indication (4)
| |9
|RS1
|Rate Select 1, optionally controls SFP+ module transmitter (5)
| |10
|VeeR
|Receiver Ground
| |11
|VeeR
|Receiver Ground
| |12
|RD-
|Receiver Inverted Data output, Differential LVPECL, AC coupled
| |13
|RD+
|Receiver Non-Inverted Data output, Differential LVPECL, AC coupled
| |14
|VeeR
|Receiver Ground
| |15
|VccR
|Receiver 3.3V Power Supply
| |16
|VccT
|Transmitter 3.3V Power Supply
| |17
|VeeT
|Transmitter Ground
| |18
|TD+
|Transmitter Non-Inverted Data Input, Differential LVPECL, AC coupled
| |19
|TD-
|Transmitter Inverted Data Input, Differential LVPECL, AC coupled
| |20
|VeeT
|Transmitter Ground
|Note1: TX Fault is not used and is always tied to ground through a 100 ohm resistor.
Note2: TX Disable as described in the MSA is not applicable to the Copper-T module, but is used for convenience as an input to reset the internal PHY IC. This pin is pulled up within the module with a 4.7KΩ resistor.
Low (0 – 0.8 V): Transceiver on ;
Between (0.8 V and 2.0 V): Undefined
High (2.0 – 3.465 V): Transceiver in reset state
Open: Transceiver in reset state
Note3: These are the module definition pins. They should be pulled up with a 4.7K~10KΩ resistor on the host board to supply less than VccT+0.3V or VccR+0.3V. Mod-ABS is grounded by the module to indicate that the module is present.
Note4: LVTTL compatible with a maximum voltage of 2.5V.
Note5: No connect on this module.
ORDERING INFORMATION
Part Number
|Speed mode
|Link
|Temp.
| | --- | --- | --- | --- | |8330-206-V1
|10GBase-T @Cat.6a/7 cable
|30 meters
|0~70°C
| | |5GBase-T/2.5GBase-T @Cat.5E cable
|50 meters
| | | |1000Base-T @Cat.5E cable
|100 meters
| | |8330-206E-V1
|10GBase-T @Cat.6a/7 cable
|30 meters
|-40~85°C
| | |5GBase-T/2.5GBase-T @Cat.5E cable
|50 meters
| | | |1000Base-T @Cat.5E cable
|100 meters
| |
