T(P)ES-0208TD
8 FE + 2 GE (PoE) M12 Unmanaged Ethernet Switch
OVERVIEW
Lantech T(P)ES-0208TD is an unmanaged Ethernet switch with 8 10/100TX and 2 10/100/1000T ports, equipped with M12 connectors. Designed with IP67/IP54 rated protection, it fulfills the high reliability requirements of industrial rolling stock applications. With EN50155, ITxPT, and E marking* certifications, it ensures compliance with world class standards.
Redundant dual 24VI/24TVI input with inrush current prevention and EN50155 verification with high ESD and polarity reverse protection ; PoE model supports up to 8 PoE at/af ports and PoE galvanic isolation
Complying with IEEE 802.3af/at standards, the PoE model to supply up to 30W per port with a total PoE budget of 80W for various IP PD devices. PoE galvanic isolation up to 1.5KVDC ensures insulation between the power input and PoE Ethernet ports, preventing cabling or grounding incidents from damaging the switch.
Sleep Mode & efficient PoE timer under Ignition-Off State
Compliant with ITxPT standards, the -IGN model features a 60-minute standby mode after ignition-off, maintaining network operation before entering sleep mode(0.048W)—preventing unnecessary reboots when power is restored.The PoE ignition model also supports a configurable PoE timer, with a default delay of 10 minutes after ignition-off.
E-marking certificate*; ISO 16750-2 P5A compliant
T(P)ES-0208TD features IP54 enclosure with M12 connectors for dust/water protection, compliant with EMI, safety, free fall, shock, vibration tests, and ISO 16750-2 P5A to resist motor pulse voltages, effectively minimizing the impact of high-frequency pulse voltages commonly generated by motor applications.
*Future release **Optional
SPECIFICATIONS
Hardware Specifications
IEEE Standard
|IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-T Ethernet
IEEE802.3ab 1000Base-T
IEEE802.3x Flow Control and Back Pressure
IEEE802.3at/af Power over Ethernet (PoE model)
Transfer Rate
|14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet por
Mac Address
|16K MAC address table
| |Connector
|10/100TX: 8 x ports M12 4-pole D-coded Push-Pull connector with Auto MDI/MDI-X function
10/100/1000T: 2 x M12, 8-pole X-coded Push-Pull connector with auto MDI/MDI-X function
Power connector: 1 x M12, 4-pole A-coded Push-Pull connector
LED
|Per unit: Power 1 (Green), Power 2 (Green),
Ethernet: Link/Activity (Green)
PoE: Active (Green)
PoE pin assignment (PoE model)
|M12 port # 1~ # 8 support IEEE 802.3at/af End-point. Per port provides up to 30W
PoE pin assignment:
P1,3: V+
P2,4: V-
Power Supply
|Dual input
9~36VDC (24VI model)
16.8~56VDC (24TVI model)
Power Consumption
|TBC
| |Power Budget
|Total 80W @ 24VDC and above
| |Operating Humidity
|5% to 95% (Non-condensing)
| |Operating Temperature
|-40°C ~ 75°C (-40°F ~ 167°F)
| |Storage Temperature
|-40°C ~ 85°C (-40°F ~ 185°F)

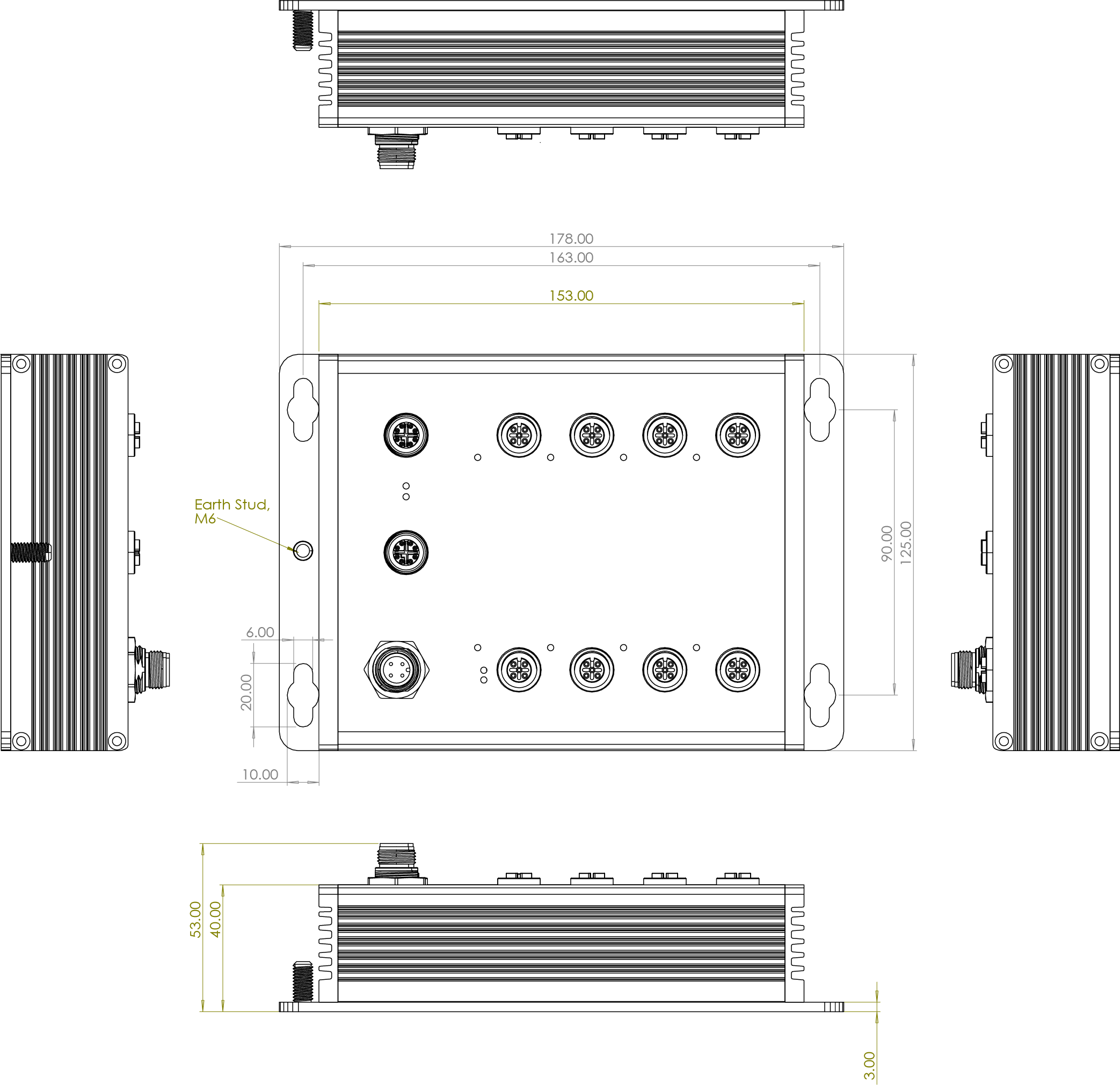

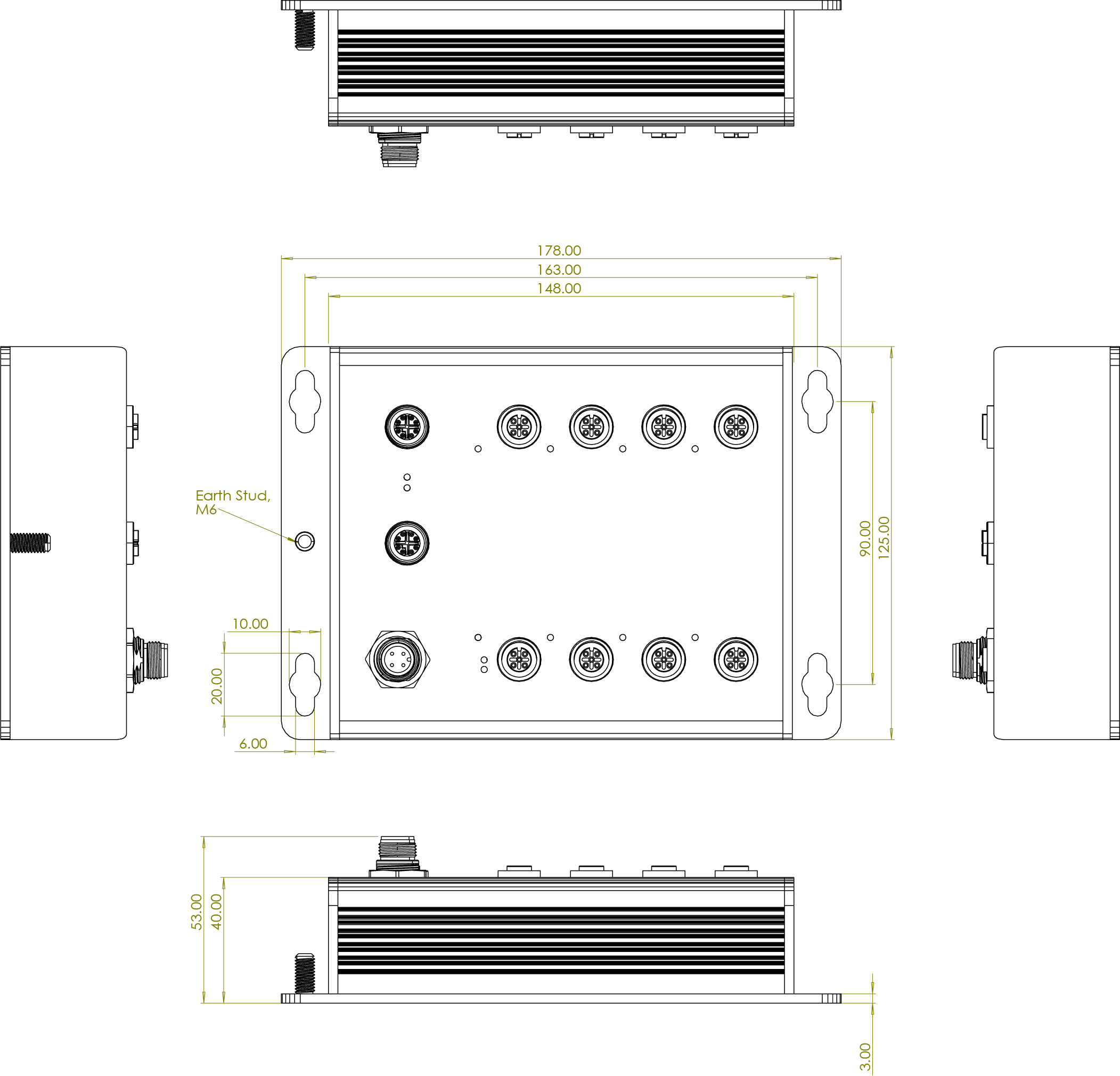

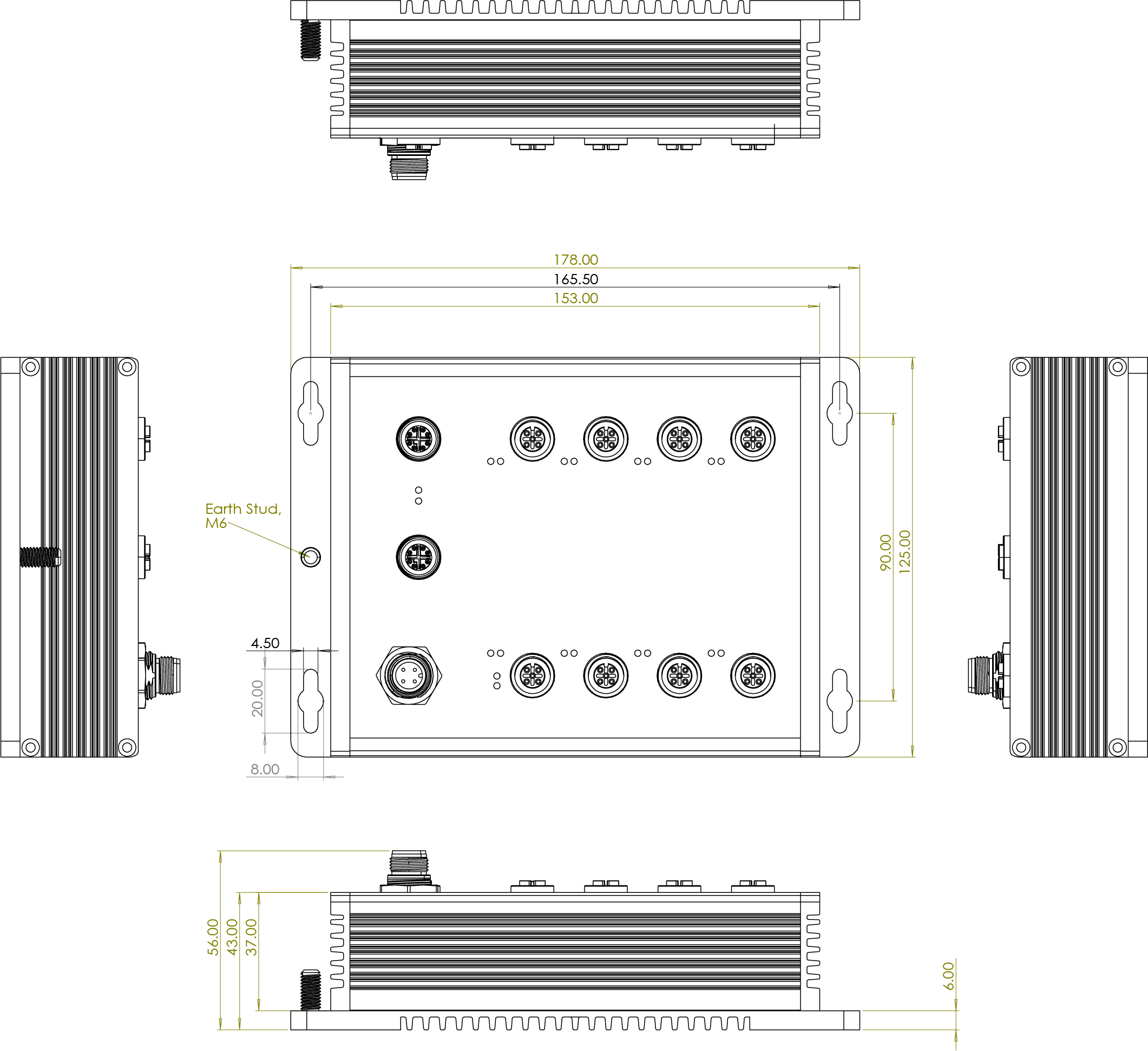

| |Case Dimension
|Aluminum case, IP67/IP54 rated
178mm(W)x125mm(H)x53mm(D)
Weight
|850g
| |Installation
|Wall Mount Design
| |EMC
|FCC Part 15, Subpart B ICES-003 Issue 7,
EN 55035:2017/A11:2020,
EN 55032:2015/A11:2020,
IEC 61000-4-2:2008,
IEC 61000-4-3:2020,
IEC 61000-4-4:2012,
IEC 61000-4-5:2014+AMD1:2017 CSV,
IEC 61000-4-6:2023,
IEC 61000-4-8:2009,
IEC 61000-6-2:2016,
IEC 61000-6-4:2018,
EN IEC 61000-6-2:2019,
EN IEC 61000-6-4:2019,
BS EN 55035:2017+A11:2020,
BS EN 55032:2015+A11:2020
Verification
|EN 50155: 2021
EN 50121-4: 2016/ A1: 2019
EN 50121-3-2: 2016/ A1: 2019
EN45545-1, EN 45545-2 Fire & Smoke
Vehicle Certificate
|E24 marking* (UN ECE R10), R118
ITxPT labeled
MTBF
|TBC
|*Future release **Optional
