OVERVIEW

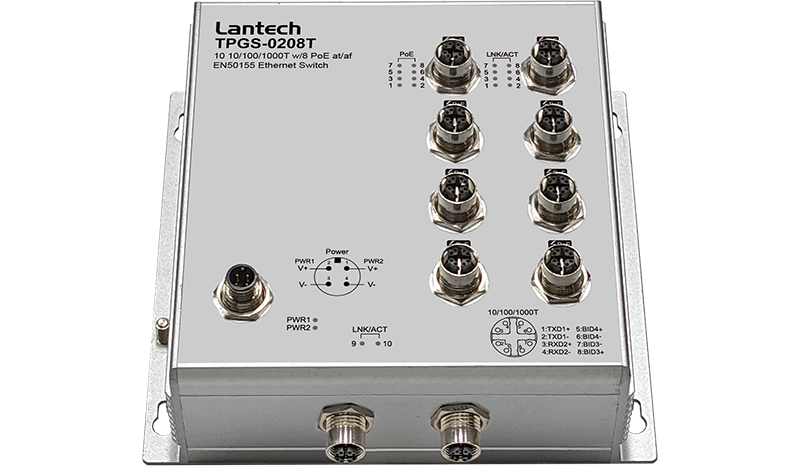

Lantech T(P)GS-0208T is a 10 10/100/1000T with M12 X-coded connector EN50155 (PoE) unmanaged Ethernet switch for IP54-rated protection, which meets the high-reliability requirements demanded by industrial rolling stock applications.

Dual 24VI/24TVI/WVI input with inrush current prevention and polarity reverse protection；PoE model supports up to 8 PoE at/af ports and PoE galvanic isolation
Complying with IEEE 802.3af/at standards, the PoE model to supply up to 30W per port with a total PoE budget of 80W for various IP PD devices. PoE galvanic isolation up to 1.5KVDC ensures insulation between the power input and PoE Ethernet ports, preventing cabling or grounding incidents from damaging the switch.

Sleep Mode & efficient PoE timer under Ignition-Off State
Compliant with ITxPT standards, the -IGN model features a 60-minute standby mode after ignition-off, maintaining network operation before entering sleep mode(0.048W)—preventing unnecessary reboots when power is restored.The PoE ignition model also supports a configurable PoE timer, with a default delay of 10 minutes after ignition-off.

EN50155, EN50121-4, EN45545 verification; High reliability and extended working temperature
T(P)GS-0208T (IP54) is designed to meet with a critical network environment with IP54 enclosure and M12 connectors for protection against dust and water. It has passed harsh environmental testing to comply with Rolling stock EMI and EMC, environmental shock & vibration and fire & smoke test with EN50155/EN50121-4 and EN45545-2 verification. For greater flexibility in application, the T(P)GS-0208T (IP54) supports an extended operating temperature range from -40°C to 75°C.

E-marking certificate; ISO 16750-2 P5A compliant
The T(P)GS-0208T is designed to meet a critical network environment with an IP54 enclosure and M12 connectors for protection against dust and water. It has passed harsh environmental testing to comply with Industrial EMI and Safety standards as well as stability testing such as Free fall, Shock, and vibration. It is compliant with ISO 16750-2 P5A which protects the switch from being damaged by high voltage that could be found at vehicle cranky start.

OPTIONAL FEATURE

Optional GigaT bypass
The optional bypass relay is set to bypass the switch to the next one when power is off in order to protect the network from crashing. Lantech bypass caters to remain in bypass mode until the switch is completely booting up when power is back to avoid another network lost. (-BT model)
