TES-0008D
8 FE M12 Unmanaged Ethernet Switch
OVERVIEW
Lantech TES-0008D is a compact unmanaged Ethernet switch featuring 8 × 10/100TX ports with M12 connectors and an IP54-rated enclosure for enhanced durability and secure connections. Designed to meet the stringent reliability requirements of industrial rolling stock, it is well-suited for vehicle and other rugged industrial applications with 24V power input.
Galvanic isolation for dual 24VI input
Galvanic isolation protection between power input and Ethernet port to case ground and it accepts dual power input 9~36VDC.
E-marking certificate, ISO 7637-2 compliant, high reliability with Ethernet isolation and polarity reversal protection design and extended working temperature ; ISO 16750-2 P5A compliant
TES-0008D is designed with dual power inputs and can withstand EMI/RFI interference in onboard and industrial networks. The redundant power input design integrates inrush current protection and safeguards against polarity reversal. In addition, the galvanic isolation feature shields the system from power transients commonly found in onboard and outdoor environments.Compliant with ISO 16750-2 P5A (24V system DC 174V/8Ω/350ms), it effectively reduces the impact of high-frequency pulse voltage generated by motor applications. With an extended operating temperature range of -40°C to 70°C, TES-0008D is suitable for deployment in extreme environments. The E-marking certificate further ensures its reliability for buses, carriages, and other vehicle applications.
OPTIONAL FEATURE
Sleep Mode & efficient timer under Ignition-Off State
Compliant with ITxPT standards, the -IGN model features a 60-minute standby mode after ignition-off, maintaining network operation before entering sleep mode(0.048W)—preventing unnecessary reboots when power is restored.
*Pending **Optional
SPECIFICATIONS
Hardware Specifications
IEEE Standard
|IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-T Ethernet
IEEE802.3x Flow Control and Back Pressure
Transfer Rate
|14,880pps for Ethernet port
148,800pps for Fast Ethernet port
Mac Address
|2K MAC address table
| |Connector
|10/100TX: 8 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function
Power connector: 1 x M12, 4-pole A coded, Male
LED
|Per unit: Power 1 (Green), Power 2 (Green),
Ethernet: Link/Activity (Green)
Power Supply
|Dual input
9~36VDC (24VI model)
Power Consumption
|3W
| |Operating Humidity
|5% to 95% (Non-condensing)
| |Operating Temperature
|-40°C ~ 70°C (-40°F ~ 158°F)
| |Storage Temperature
|-40°C ~ 85°C (-40°F ~ 185°F)
| |Galvanic Isolation
|Between power input and case ground
Between the Ethernet port and case ground
Between power input and Ethernet port

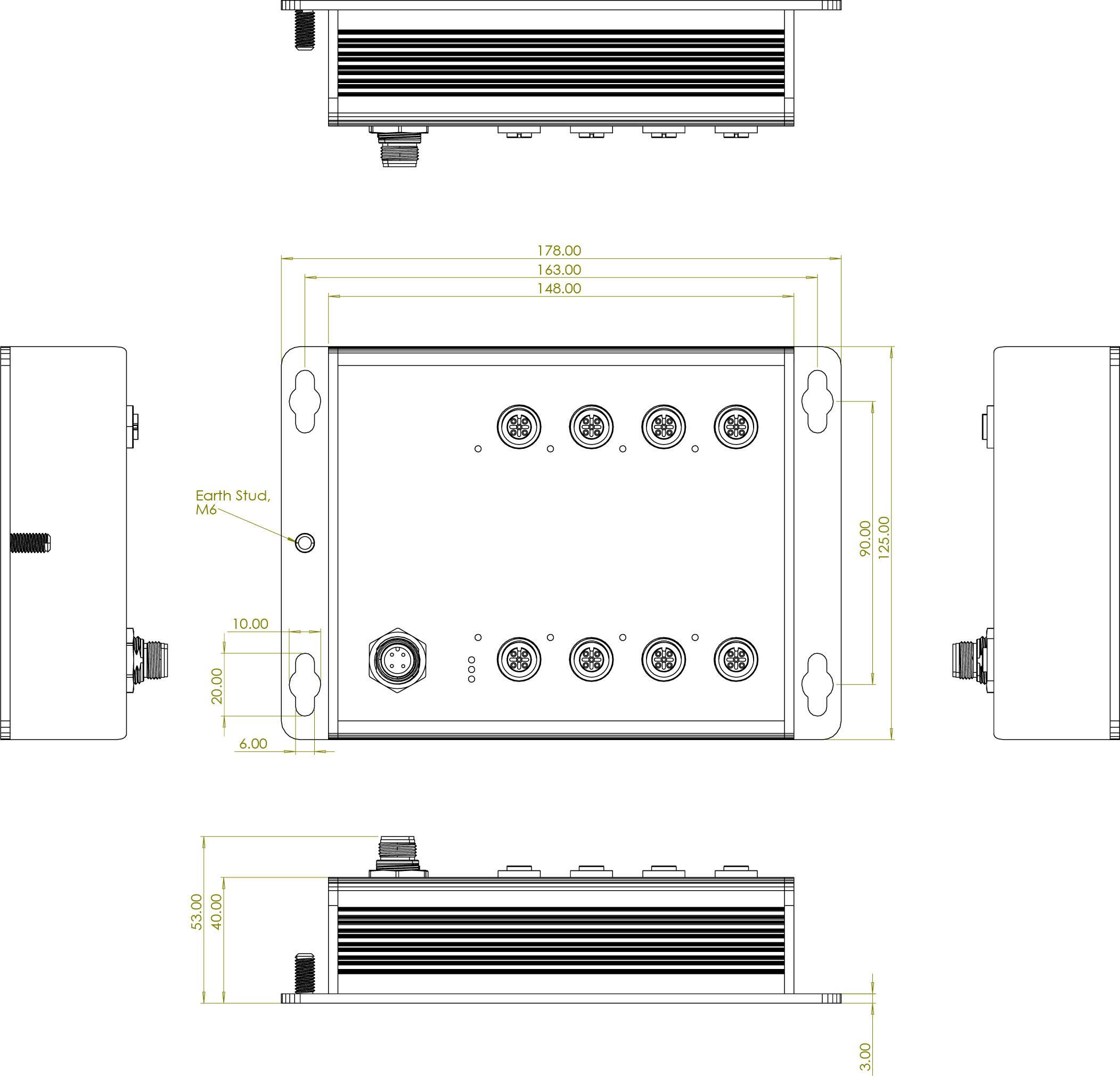

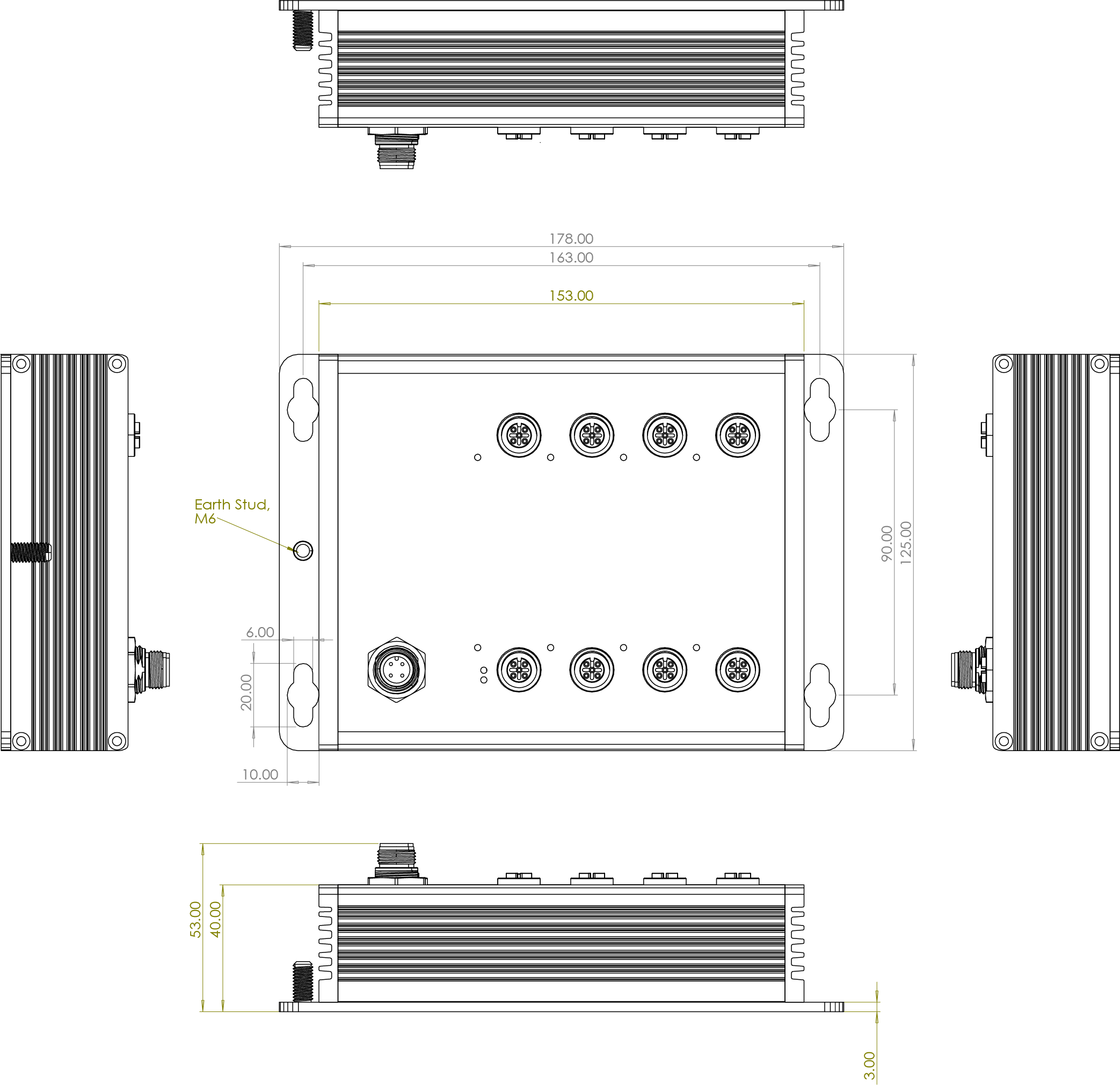

Case Dimension
|Aluminum case,
178mm(W)x125mm(H)x53mm(D) (IP54 model)
Weight
|700g
| |Installation
|Wall Mount Design
| |EMC
|FCC Class A, CE EN55011,
CE EN61000-4-2 (ESD),
CE EN61000-4-3 (RS),
CE EN61000-4-4 (EFT),
CE EN61000-4-5 (Surge),
CE EN61000-4-6 (CS),
CE EN61000-4-8 (Magnetic Field),
CE EN61000-6-2,
CE EN61000-6-4,
CE EN55032, CE EN55024
BS EN61000-4-2,
BS EN61000-4-3,
BS EN61000-4-4,
BS EN61000-4-5,
BS EN61000-4-6,
BS EN61000-4-8,
BS EN55032, BS EN55024
Vehicle certificate
|E24 marking (UN ECE R10), R118
ITxPT labeled**
MTBF
|1,058,248 (IEEE 62830 standards)
|*Pending **Optional
ORDERING INFORMATION
All model packages include M12 caps and wall mount bracket. All standard models are non-coating, optional coating models are available with –C model name.
| TES-0008D-54-24VI-E | 8 10/100TX IP54 rated unmanaged Ethernet Switch w/M12 connectors w/Ethernet galvanic isolation; 9~36VDC dual power inputs; -40°C to 70°C |
| 8351-1542 | TES-0008D-54-24VI-IGN-E | 8 10/100TX IP54 rated unmanaged Ethernet Switch w/M12 connectors w/Ethernet galvanic isolation; 9~36VDC dual power inputs; -40°C to 70°C w/ignition |
