TPGS-0008CB
8 GE PoE EN50155 Unmanaged Ethernet Switch
OVERVIEW

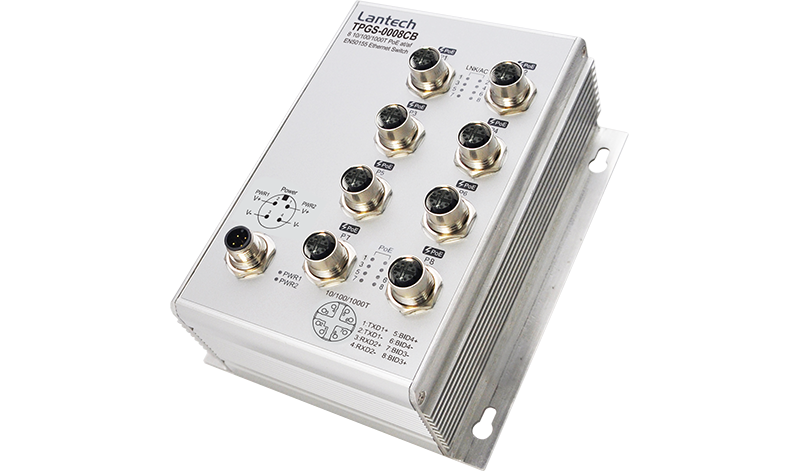

Lantech TPGS-0008CB is an 8 10/100/1000 Base-T with M12-connectors EN50155 unmanaged Ethernet switch with IP54 rated protection which meets the high-reliability requirements demanded by industrial rolling stock applications.
Redundant dual 24VI/24TVI input with max PoE budget; inrush current prevention and polarity reverse protection
The TPGS-0008CB 24VI model accepts 9~36VDC dual input and 24TVI model accepts 16.8~56VDC with galvanic isolation to PoE and all Ethernet ports. PoE feeding with 80W budget from internal power. The redundant power input design prevents inrush current and safeguards against polarity reversal.
E-marking certificate, ITxPT; ISO 7637-2 compliant and extended working temperature ; ISO 16750-2 P5A compliant
Certified with ITxPT and ISO 7637-2, it safeguards against high voltage surges during vehicle crank starts. Supporting -40°C to 75°C operation and ISO 16750-2 P5A compliance, it effectively minimizes high-frequency pulse voltages from motor applications.
Sleep Mode & efficient PoE timer under Ignition-Off State
Compliant with ITxPT standards, the -IGN model features a 60-minute standby mode after ignition-off, maintaining network operation before entering sleep mode(0.048W)—preventing unnecessary reboots when power is restored.The PoE ignition model also supports a configurable PoE timer, with a default delay of 10 minutes after ignition-off.※The optional PoE off-timer is available after February 23, 2024.
*Future release **Optional
SPECIFICATIONS
Hardware Specifications
IEEE Standard
|IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-T Ethernet
IEEE802.3ab 1000Base-T
IEEE802.3x Flow Control and Back Pressure
IEEE802.3at/af Power over Ethernet (For PoE Model)
Transfer Rate
|14,880pps for Ethernet port
148,800pps for Fast Ethernet port
Mac Address
|16K MAC address table
| |Connector
|10/100/1000T: 8 x M12, 8-pole X-coded, Female with auto MDI/MDI-X function
Power connector: 1 x M12, 4-pole A coded, Male
1 x M12, 5-pole A-coded, Male (-IGN model)
| |
LED
|Per unit: Power 1 (Green), Power 2 (Green),
Ethernet: Link/Activity (Green)
PoE: (Green)
PoE pin assignment
|M12 port # 1~ # 8 support IEEE 802.3at/af End-point. Per port provides up to 30W
Power Supply
|Dual input
9~36VDC (24VI model)
16.8~56VDC (24TVI model)
Power Consumption
|4.5W without PoE
| |Power Budget
|Total 80W @ 24VDC and above
| |Operating Humidity
|5% to 95% (Non-condensing)
| |Operating Temperature
|-40°C ~ 75°C (-40°F ~ 167°F)
| |Storage Temperature
|-40°C ~ 85°C (-40°F ~ 185°F)

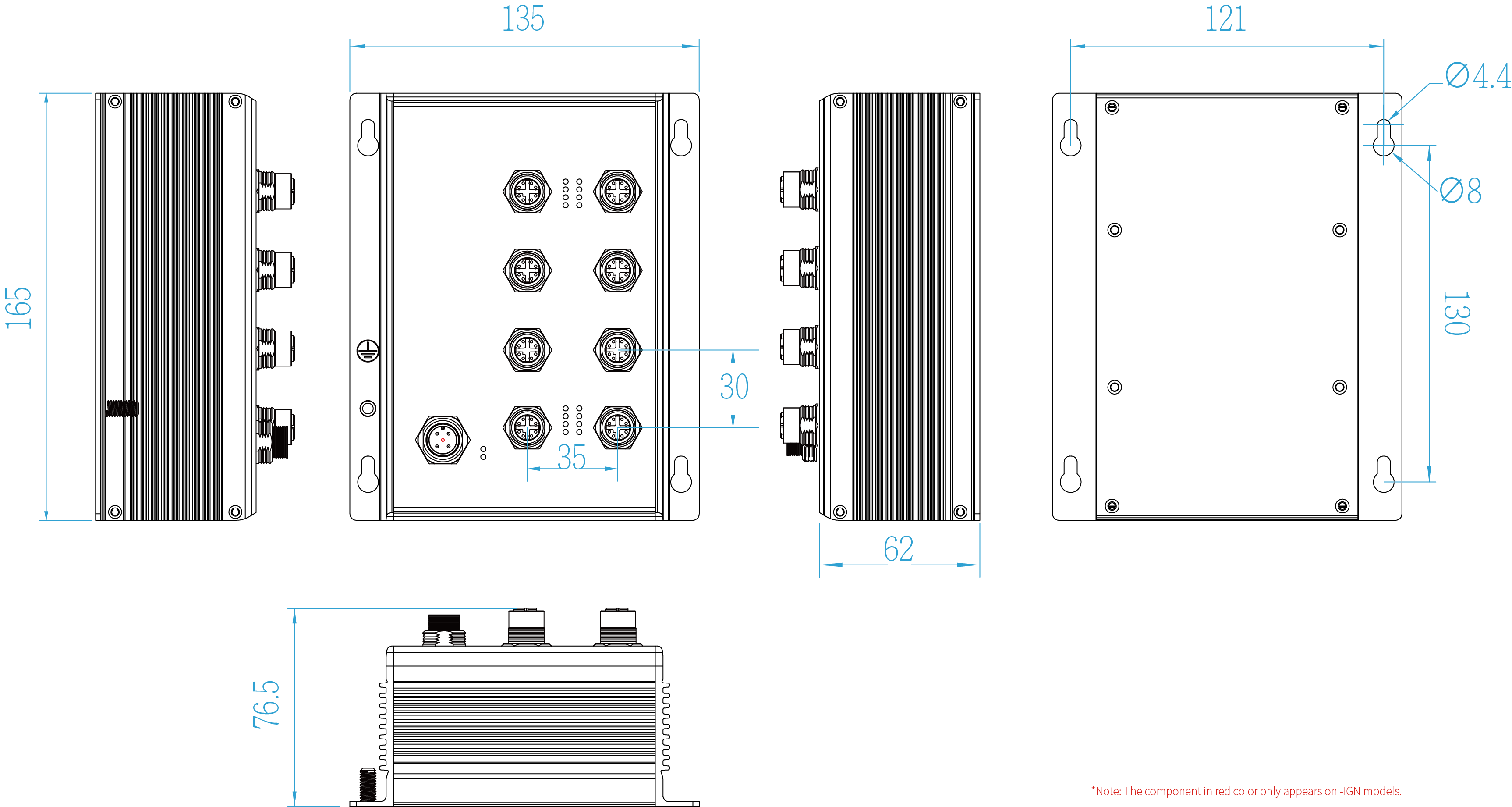

| |Case Dimension
|Aluminum case, IP54 rated
135mm(W)x165mm(H)x76.5mm(D)
Weight
|700g
| |Installation
|Wall Mount Design
| |EMC
|FCC Part 15, Subpart B ICES-003 Issue 7,
EN 55035:2017/A11:2020,
EN 55032:2015/A11:2020,
IEC 61000-4-2:2008,
IEC 61000-4-3:2020,
IEC 61000-4-4:2012,
IEC 61000-4-5:2014+AMD1:2017 CSV,
IEC 61000-4-6:2023,
IEC 61000-4-8:2009,
IEC 61000-6-2:2016,
IEC 61000-6-4:2018,
EN IEC 61000-6-2:2019,
EN IEC 61000-6-4:2019,
BS EN 55035:2017+A11:2020,
BS EN 55032:2015+A11:2020
Stability Testing
|EN 61373:2010 (Shock and Vibration)
| |Verifications & Report
|EN 50155:2021,
EN 50121-4:2016/A1:2019,
EN 50121-3-2:2016/A1:2019,
EN 50124-1:2017,
EN 45545-1, EN 45545-2 Fire & Smoke verification
Vehicle certificate
|E24 marked (24VI model),R118
ITxPT labeled (24VI-IGN model)
MTBF
|TBC
|*Future release **Optional
ORDERING INFORMATION
All model packages include M12 caps and wall mount brackets. All standard models are non-coating, optional coating models are available with –C model name. IGN model has two shut-down periods totaling 60 min, including a default PoE OFF timer of 10 min. *PoE timer can be customized on request.
| TPGS-0008CB-54-24VI | 8 10/100/1000T PoE at/af Ethernet Switch w/M12 connectors; 9~36VDC dual power inputs w/ PoE & Ethernet galvanic isolation; E-marking certified; IP54 rated; -40°C to 75°C |
| 8351-1464
| TPGS-0008CB-54-24TVI | 8 10/100/1000T PoE at/af Ethernet Switch w/M12 connectors; 16.8~56VDC dual power inputs w/ PoE & Ethernet galvanic isolation; IP54 rated; -40°C to 75°C |
| 8351-1465
| TPGS-0008CB-54-24VI-IGN | 8 10/100/1000T PoE at/af Ethernet Switch w/M12 connectors; 9~36VDC dual power inputs w/ PoE & Ethernet galvanic isolation; E-marking and ITxPT certified w/ignition; IP54 rated; -40°C to 75°C |
