BiDi SFP 125Mbps
125Mbps, WDM1310~1550, Single Fiber Bi-directional SFP, ONU Transceiver
OVERVIEW
Lantech 125Mbps Bi-directional (BiDi) Small Form Factor Pluggable (SFP) transceiver module series is specifically designed for the high performance integrated duplex data link over a single optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA). With the hot pluggability, these modules offer an easy way to be installed into SFP MSA compliant ports at any time without the interruption of the host equipments operating online.
Lantech 125Mbps BiDi SFP transceiver module series using a long wavelength FP or DFB laser diode and enable data transmission up to 80km on a single-mode (9/125μm) optical fiber.
FEATURES
- 125~155Mbps bi-directional single-fiber link
- Single LC receptacle
- 1310~1550nm FP/DFB transmitter
- 1310~1550nm PIN receiver
- 20km to 80km point-to-point transmission
- SFP Multi-Source Agreement compliant
- Serial ID functionality support
- Class 1 laser safety standard IEC 60825 compliant
- Low power dissipation

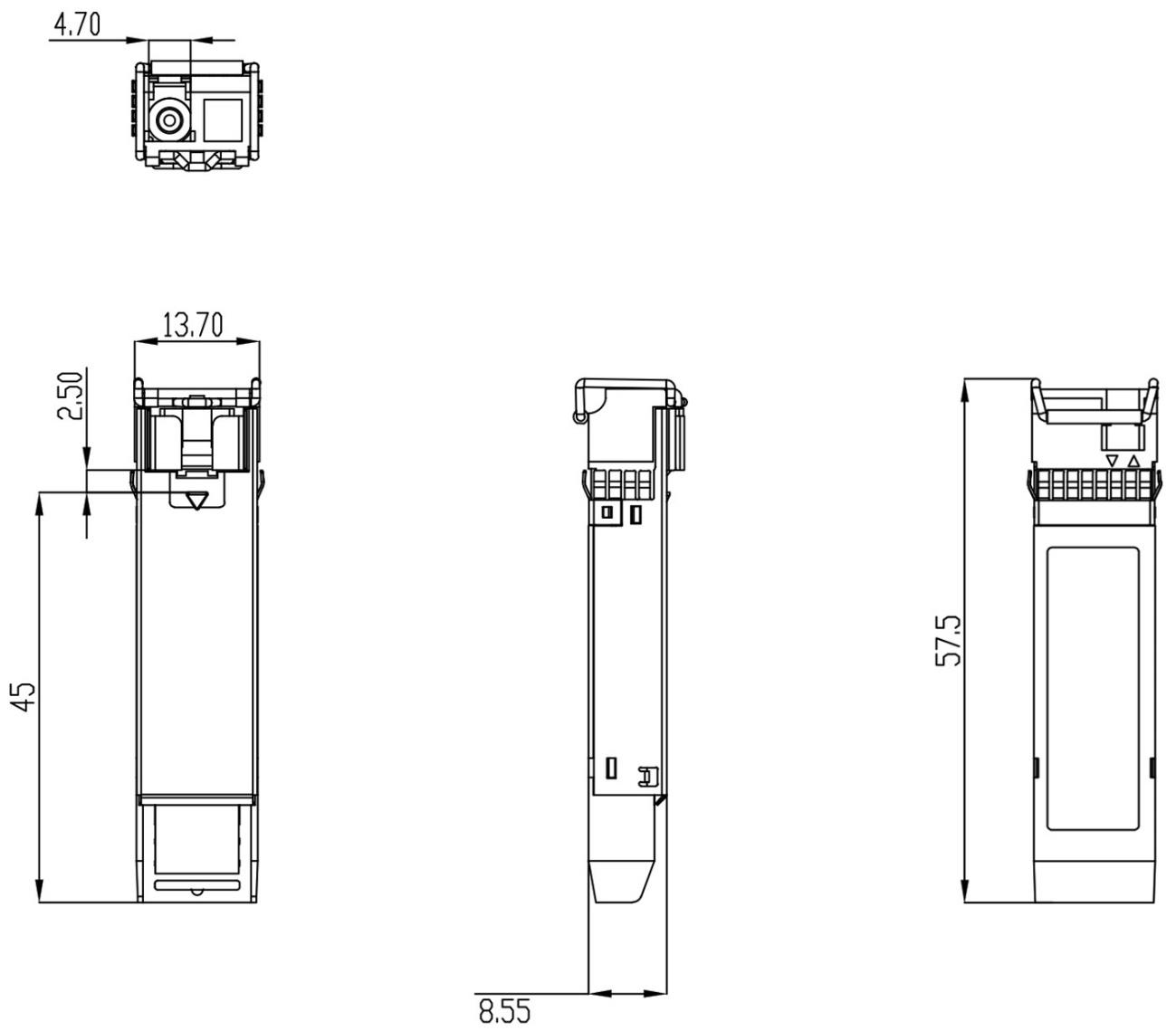

SPECIFICATIONS
Absolute Maximum Ratings
Parameter
|Symbol
|Min.
|Max.
|Unit
|Note
| | --- | --- | --- | --- | --- | --- | |Storage Temperature
|Ts
|-40
|+85
|°C
|| |
Supply Voltage
|Vcc
|-0.5
|4.0
|V
|| |
Storage Relative Humidity
|RH
|5
|95
|%
||
Recommended Operating Conditions
Parameter
|Symbol
|Min.
|Typ.
|Max.
|Unit
|Note
| | --- | --- | --- | --- | --- | --- | --- | |Case Operating Temperature
|Tc
|-10 / -40
||
70 / 85
|°C
|1
| |Supply Voltage
|VccT
VccR
3.1
|3.3
|3.5
|V
|| |
Supply Current
|ITX + IRX
||
150
|300
|mA
||
Notes: 1. Standard Operating Temperature / Wide Operating Temperature (-E model)
Transmitter Electro-Optical Interface
Parameter
| | |Symbol
|Min.
|Typ.
|Max.
|Unit
|Note
| | --- | --- | --- | --- | --- | --- | --- | --- | --- | |Transmitter Differential Input Voltage
| | |TD +/-
|400
||
2400
|mV
|| |
Tx Fault - High
| | |VFault_H
|2
||
VccT
|V
|| |
Tx Fault - Low
| | |VFault_L
|VeeT
||
VeeT+0.8
|V
|| |
Tx Disable - High
| | |VDisable_H
|2
||
VccT
|V
|| |
Tx Disable - Low
| | |VDisable_L
|VeeT
||
VeeT+0.8
|V
|| |
Optical Output Power
|20km
|WDM1310
|Po
|-14
||
-8
|dBm
|1
| | | |WDM1550
| |-14
| |-8
| | | | |40km
|WDM1310
| |-8
| |0
| | | | | |WDM1550
| |-8
| |0
| | | | |60km
|WDM1310
| |-5
| |0
| | | | | |WDM1550
| |-5
| |0
| | | | |80km
|WDM1310
| |0
| |+5
| | | | | |WDM1550
| |0
| |+5
| | | |Optical Extinction Ratio
| | |ER
|9
||
|
dB
|| |
Center Wavelength
|20km
|WDM1310
|λC
|1260
|1310
|1360
|nm
|| | | |
WDM1550
| |1480
|1550
|1580
| | | | |40km
|WDM1310
| |1260
|1310
|1360
| | | | | |WDM1550
| |1480
|1550
|1580
| | | | |60km
|WDM1310
| |1260
|1310
|1360
| | | | | |WDM1550
| |1480
|1550
|1580
| | | | |80km
|WDM1310
| |1260
|1310
|1360
| | | | | |WDM1550
| |1480
|1550
|1580
| | | |Spectral Width
|20km
|WDM1310
|Δλ
||
|
4
|nm
|| | | |
WDM1550
| | | |3
| | | | |40km
|WDM1310
| | | |2.5
| | | | | |WDM1550
| | | |1
| | | | |60km
|WDM1310
| | | |2.5
| | | | | |WDM1550
| | | |1
| | | | |80km
|WDM1310
| | | |2.5
| | | | | |WDM1550
| | | |1
| | | |Optical Rise / Fall Timet
| | |tr / tf
||
|
2
|ns
|| Notes: 1. Coupling into a 9/125μm single-mode fiber.
Receiver Electro-Optical Interface
Parameter
| | |Symbol
|Min.
|Typ.
|Max.
|Unit
|Note
| | --- | --- | --- | --- | --- | --- | --- | --- | --- | |Receiver Differential Output Voltage
| | |RD +/-
|400
||
2000
|mV
|| |
Receiver Overload
|20km
|WDM1310
|PINMAX
|-3
||
|
|
1
| | | |WDM1550
| |-3
| | | | | | |40km
|WDM1310
| |0
| | | | | | | |WDM1550
| |0
| | | | | | |60km
|WDM1310
| |0
| | | | | | | |WDM1550
| |0
| | | | | | |80km
|WDM1310
| |0
| | | |2
| | | |WDM1550
| |0
| | | |1
| |Receiver Sensitivity
|20km
|WDM1310
|PINMIN
||
|
-32
|dBm
|1
| | | |WDM1550
| | | | | | | | |40km
|WDM1310
| | | |-34
| | | | | |WDM1550
| | | | | | | | |60km
|WDM1310
| | | |-34
| | | | | |WDM1550
| | | | | | | | |80km
|WDM1310
| | | |-34
| |2
| | | |WDM1550
| | | | | |1
| |Operating Center Wavelength
|20km
|WDM1310
|λc
|1480
||
1580
|nm
|| | | |
WDM1550
| |1260
| |1360
| | | | |40km
|WDM1310
| |1480
| |1580
| | | | | |WDM1550
| |1260
| |1360
| | | | |60km
|WDM1310
| |1480
| |1580
| | | | | |WDM1550
| |1260
| |1360
| | | | |80km
|WDM1310
| |1480
| |1580
| | | | | |WDM1550
| |1260
| |1360
| | | |Return Loss
| | |RL
|12
||
|
dB
|3
| |Receiver Loss of Signal - TTL Low
|20km
|WDM1310
|PRX_LOSD
||
|
-32
|dBm
|| | | |
WDM1550
| | | | | | | | |40km
|WDM1310
| | | |-34
| | | | | |WDM1550
| | | | | | | | |60km
|WDM1310
| | | |-34
| | | | | |WDM1550
| | | | | | | | |80km
|WDM1310
| | | |-34
| | | | | |WDM1550
| | | | | | | |Receiver Loss of Signal - TTL High
| | |PRX_LOSA
|-45
||
|
dBm
|| |
Receiver Loss of Signal - Hysteresis
| | |PRX_LOSH
|0.5
||
|
dB
||
MTBF
| |
60% Confidence Level, 25°C
| |90% Confidence Level, 25°C
| | | --- | --- | --- | --- | --- | --- | | | |MTBF
|FIT
|MTBF
|FIT
| |20km
|WDM1310
|2532284
|395
|1012914
|987
| | |WDM1550
|2532284
|395
|1012914
|987
| |40km
|WDM1310
|813526
|1229
|325410
|3073
| | |WDM1550
|813526
|1229
|325410
|3073
| |60km
|WDM1310
|813526
|1229
|325410
|3073
| | |WDM1550
|813526
|1229
|325410
|3073
| |80km
|WDM1310
|813526
|1229
|325410
|3073
| | |WDM1550
|813526
|1229
|325410
|3073
|
ORDERING INFORMATION
Part Number
|TX
|LD
|RX
|IO
|LOS
|Link
|Mode
|Temp.
| | --- | --- | --- | --- | --- | --- | --- | --- | --- | |8330-068D-V1
|1550nm
|FP
|1310nm
|AC/AC
|TTL
|20km
|Single-mode
|-10° ~70°C
| |8330-068DE-V1
| |FP
| | | |20km
| |-40° ~ 85°C
| |8330-082D-V1
| |DFB
| | | |40km
| |-10° ~70°C
| |8330-082DE-V1
| |DFB
| | | |40km
| |-40° ~ 85°C
| |8330-083D-V1
| |DFB
| | | |60km
| |-10° ~70°C
| |8330-083DE-V1
| |DFB
| | | |60km
| |-40° ~ 85°C
| |8330-085D-V1
| |DFB
| | | |80km
| |-10° ~70°C
| |8330-085DE-V1
| |DFB
| | | |80km
| |-40° ~ 85°C
|Part Number
|TX
|LD
|RX
|IO
|LOS
|Link
|Mode
|Temp.
| | --- | --- | --- | --- | --- | --- | --- | --- | --- | |8330-069D-V1
|1310nm
|FP
|1550nm
|AC/AC
|TTL
|20km
|Single-mode
|-10° ~70°C
| |8330-069DE-V1
| |FP
| | | |20km
| |-40° ~ 85°C
| |8330-080D-V1
| |FP
| | | |40km
| |-10° ~70°C
| |8330-080DE-V1
| |FP
| | | |40km
| |-40° ~ 85°C
| |8330-081D-V1
| |FP
| | | |60km
| |-10° ~70°C
| |8330-081DE-V1
| |FP
| | | |60km
| |-40° ~ 85°C
| |8330-084D-V1
| |FP
| | | |80km
| |-10° ~70°C
| |8330-084DE-V1
| |FP
| | | |80km
| |-40° ~ 85°C
|
