OVERVIEW

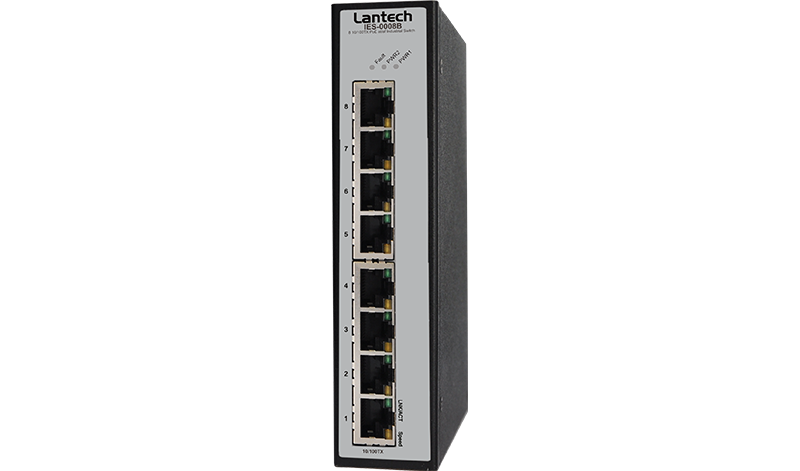

Lantech I(P)ES-0008Bis a high-performance all 8 10/100TX industrial Ethernet switch with w/8/6 PoE802.3af/at ports.
Galvanicisolation for dual 48V, 12V, 24V input with max PoE budget
The IPES-0008B supports IEEE802.3at/af standard which canfeed HI-power up to 30W at each PoE port for big power consumption devices likePTZ IP camera, High power wireless AP etc.
The IPES-0008B-12V accepts power input 9~56VDC withIEEE802.3at/af standard and feed up to 30W per PoE port with maximum 120W@24Vand 80W@12V output (at dual input). The 24V model is also compliant with ISO7637-2 which protects switch from being damaged by high voltage that could befound at vehicle cranky start.
IPES-0008B-12V with E-markingaccepts input 9~36VDC for vehicle transient protection.
PoE 48V model accepts 45~56VDC power input and can feed 48Voutput for PoE feeding in vehicle at max 240W @48V input.
E-markingcertificate, High reliability and extended working temperature
Lantech I(P)ES-0008Bprovides ±2000VEFT and ±6000V ESD protection, which can reduce unstable situation caused bypower line and Ethernet. It has high reliability and robustness coping withextensive EMI/RFI phenomenon, environmental vibration and shocks usually foundin Automation, transportation, surveillance, Wireless backhaul, Semi-conductorfactory and assembly lines.
The -E modelcan be used in extreme environments with an operating temperature range of-40°C to 75°C.
The E-markingcertificate makes it the most suitable PoE switch for bus, carriage, othervehicles application as well as for industrial areas where the power source islimited with 12V but has demand of IP surveillance or VoIP applications. Only12V or 24VDC input system is applicable for E-mark approval.
SPECIFICATIONS
Hardware Specifications
Standards
| [cite_start]IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX, IEEE802.3x Flow Control and Back Pressure, IEEE802.3at/af Power over Ethernet [cite: 1]
| |Switch Architecture
| [cite_start]Back-plane (Switching Fabric): 1.6Gbps [cite: 1]
| |Transfer Rate
| [cite_start]14,880pps for Ethernet port, 148,800pps for Fast Ethernet port [cite: 1]
| |Mac Address
| [cite_start]16K MAC address table [cite: 1]
| |Connectors
| [cite_start]10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function, Power & P-Fail connector: 1 x 6-pole terminal block [cite: 1]
| |Jumbo frame
| [cite_start]10KB [cite: 1]
| |Network Cable
|10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable, EIA/TIA-568 100-ohm (100m); 100Base-TX: 2-pair UTP/STP Cat. [cite_start]5/ 5E/ 6 cable, EIA/TIA-568 100-ohm (100m) [cite: 1]
| |LED
|Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red); Ethernet port: Link/Activity (Green); [cite_start]PoE: Active (Green) [cite: 1]
| |Operating Humidity
| [cite_start]5% ~ 95% (Non-condensing) [cite: 1]
| |Operating Temperature
| [cite_start]-20°C~60°C / -4°F~140°F (Standard model), -40°C~75°C / -40°F~167°F (-E model) [cite: 1]
| |Storage Temperature
| [cite_start]-40°C~85°C / -40°F~185°F [cite: 1]
| |Power Supply
|Non-PoE model: 9~60VDC (12V model), 9~36VDC (12V model with E-marking), 9~36VDC (24V model); [cite_start]PoE model: 9~56VDC (12V model), 9~36VDC (12V model with E-marking), 9~36VDC (24V model), 44~56VDC (48V model) [cite: 1]
| |PoE Budget
|240W for 45~56V input (48V model), 80W at 12V input, 120W at 24V input; (50-57VDC input is recommended for 802.3at 30W applications). [cite_start]Higher PoE budget can be applied upon request. [cite: 1]
| |PoE pin assignment
|-8 model: RJ-45 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides up to 30W; -6 model: RJ-45 port # 1~#6 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides up to 30W. Positive (VCC+): RJ-45 pin 1,2. [cite_start]Negative (VCC-): RJ-45 pin 3,6 [cite: 1]
| |Power Consumption
| [cite_start]5W [cite: 1]
| |Galvanic Isolation
| [cite_start]Between power input and case ground, Between Ethernet port and case ground, Between power input and Ethernet port [cite: 1]
| |Case Dimension

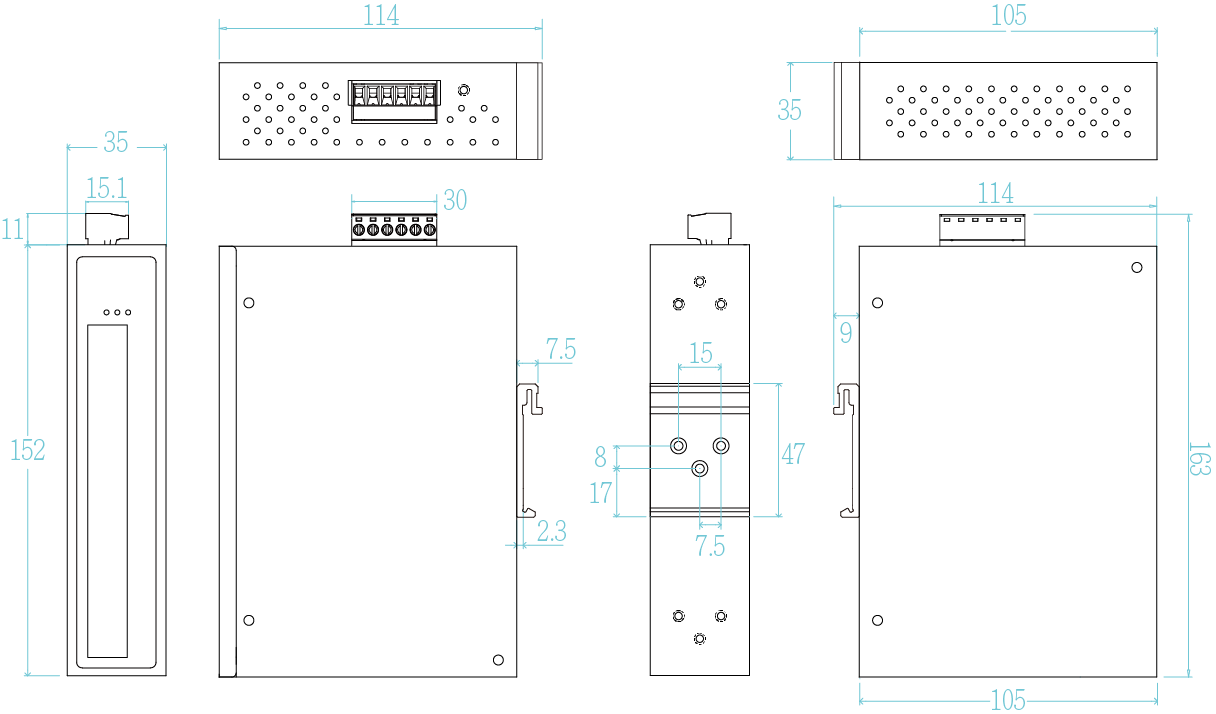

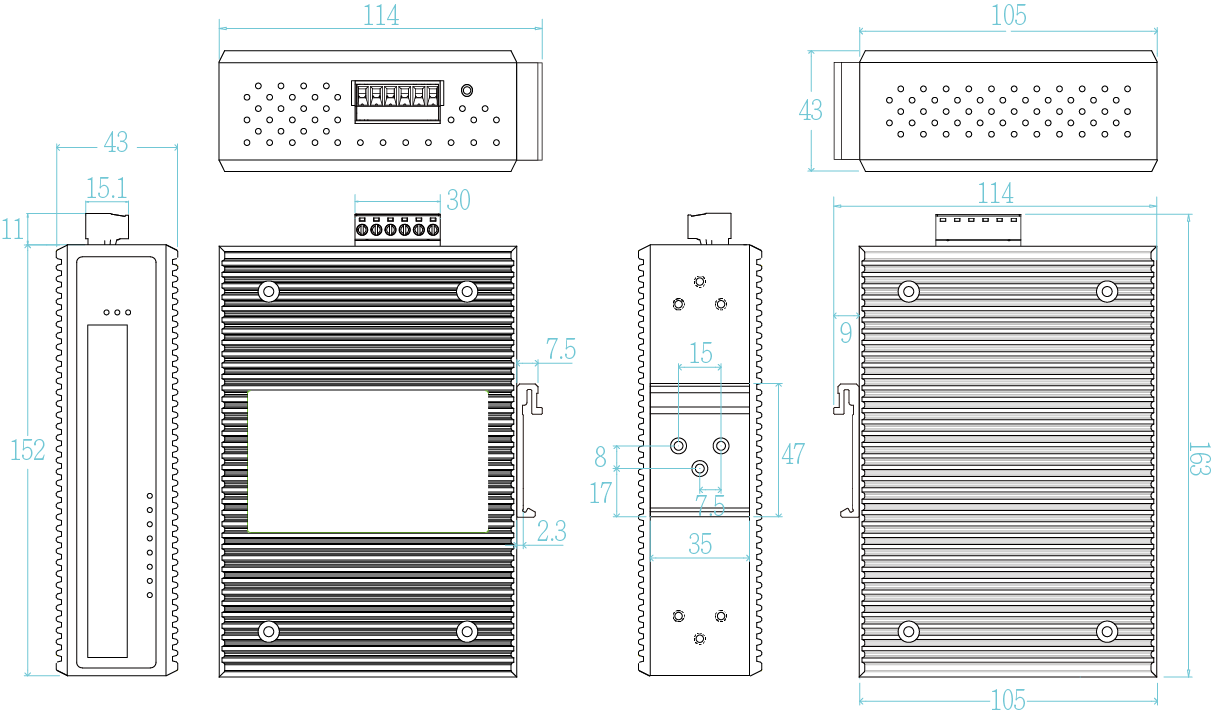

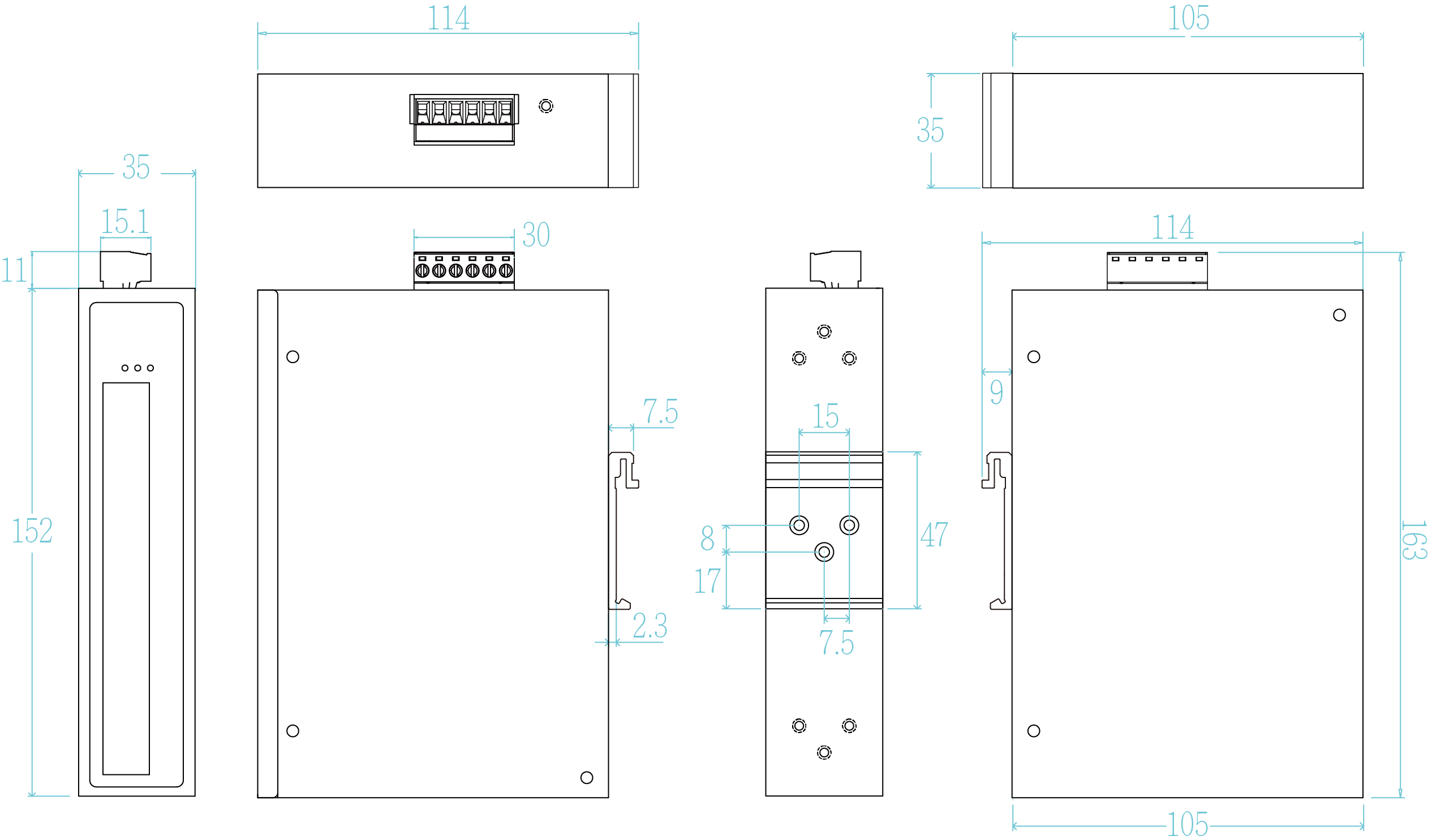

|Metal case. IP-30 & IP40; PoE model: 43 (W) x 105 (D) x 152 (H) mm; [cite_start]Non-PoE model: 35 (W) x 105 (D) x 152 (H) mm [cite: 1]
| |Weight
| [cite_start]900 g [cite: 1]
| |Installation
| [cite_start]DIN Rail and Wall Mount Design [cite: 1]
| |Relay Alarm
|Provides one relay output for power fail and alarm. [cite_start]Alarm Relay current carry ability: 1A @ DC24V [cite: 1]
| |EMI & EMS
| [cite_start]FCC Class A, CE EN55032 Class A, CE EN55024, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE EN61000-4-8, CE EN61000-6-2 [cite: 1]
| |Safety
| [cite_start]EN62368 (LVD) [cite: 1]
| |Stability Testing
| [cite_start]IEC 60068-2-27 (Shock), IEC 60068-2-31 (Shock), IEC 60068-2-64 (Vibration), IEC 60068-2-80 (Vibration) [cite: 1]
| |Vehicle certificate
| [cite_start]E13 marking (-12V; -24V model) [cite: 1]
| |MTBF
|1,022,402 Hrs. (IEC62830 standards) [cite_start][cite: 1]
|*Future Release **Optional
ORDERING INFORMATION
All part no. with WALL are models with wallmount kit instead of DIN Rail
