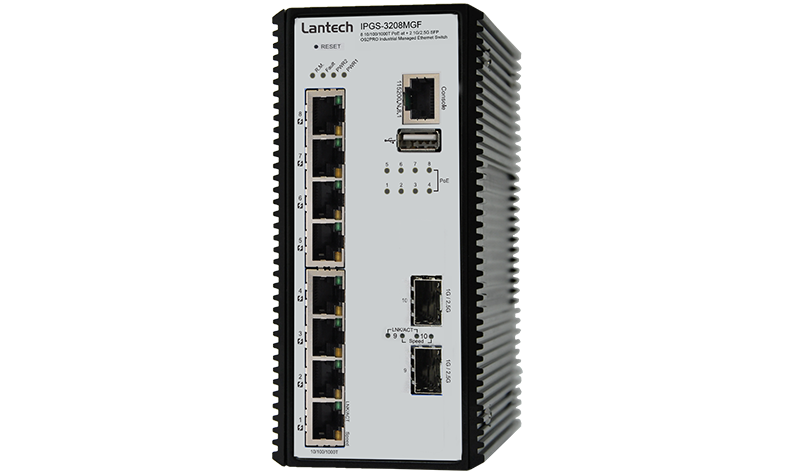

The Lantech I(P)GS-3208MGF(OS2 Pro platform) is a compact router switch, offering a total PoE budget up to 240W (52V model), designed for 24V/52V input applications. It features 810/100/1000T + 2 1G/2.5G SFP ports, along with 8 PoE 802.3af/at Ethernet ports. The switch offers Layer 2 management, NAT, unique AUTO-FEED configuration, MQTT, advanced security functions and Health diagnostic snapshot maintenance to ensure reliable and easy onboard network deployment. Its WebGUI and complete CLI interface make configuration straightforward for all skill levels. Additionally, the OPEN API document format enhances central management efficiency, making it ideal for fleet management and AIoT applications.

PoE budget up to 240W (52V model) for 8 Ports with PD detection, auto PD reboot, scheduling and PoE & Ethernet power input galvanic isolation; support Perpetual*/Fast PoE

IPGS-3208MGFsupports maximum PoE budget of 240W for 52V model, 120W for 24V and 80W for 24VImodel with advanced PoE management features, including PoE auto-detection and scheduling. The PoE detection function can identify if a connected Powered Device (PD) becomes unresponsive and then auto-restart the PD. Moreover, PoE scheduling allows for a pre-set power feeding schedule based on a routine timetable. Each PoE port can be enabled or disabled, and it provides information on voltage, current, power (W), and temperature.

Perpetual* and Fast PoE provides immediate and continuous power to devices during PSE switch reboots.

Galvanic isolation between the power input and Ethernet power system enhances safety.Extra PoE galvanic isolation on 802.3at/af ports insulates the power input fromPoE Ethernet ports, preventing damage from cabling and grounding incidents tothe Ethernet switch.

PoEmodels: Dual power 24Vdc/52Vdc input, high PoE budget

The PoE modelis designed with dual power supply at 12-57VDC input (24VI model) and can provide 80W PoE budget. 24V model can support dual power 12-57VDC and canprovide 120W PoE budget, the 52V model can support dual power 52-57VDC input and can offer 240W PoE budget.

NonPoE models: Dual power 24Vdc input voltage selection

The non-PoE model is designed with dual power supply at 12-57VDC input (24VI model). The Ethernet galvanic isolation is built in.

Comprehensive Network Protection Against DDoS and Layer 2 Threats

LantechOS2Pro generation integrates advanced security mechanisms to safeguard both switches and networks.
Key features include DDoS attack mitigation, 802.1X port-based authentication, Dynamic ARP Inspection (DAI), IP Source Guard, and Port Security, providing multi-layer protection against spoofing, unauthorized access, and traffic floods. These security capabilities ensure stable, resilient network operation.

LantechOS2 PRO Platform with advanced L2 management and L3 routing protocols incl. OSPF and RIP V1&V2
The switch developed on Lantech OS2 Pro platform is equipped with Layer 2management and some Layer 3 routing protocols, including OSPF and RIP V1,V2. Engineered for diverse applications, this platform also supports a range of features such as NAT, Port forwarding, multiple Static IP address, DHCP server/option/client/relay/port based, VLAN, IGMP, RSTP/ G.8032 enhanced ring recovery, LACP etc.

Support Open API document for Restful API for better switch performance

The switch supports an OPEN API that uses JSON format to access and manipulate data using GET, PUT, POST, and DELETE methods, thereby avoiding the CPU utilization associated with traditional SNMP management.

mDNS (Multicast DNS)and DNS server/client feature and MQTT-role of Publisher or Broker

It supports mDNS (Multicast DNS) which enables hosts in the LAN to discover and communicate with devices each other incompliance with the DNS protocol, without requiring a traditional DNS server. The switch can act as MQTT Publisher or Broker that can send data to the broker then broker distributors the “payload” to the subscribers all in a very lightweight protocol.

Reliable eMMC for better power efficiency and reliability

The switch utilizes eMMC for firmware storage. The eMMC’s standard interface streamlines the design process while delivering improved power efficiency and enhanced reliability, thereby extending the storage’s lifespan.

Auto feed configuration for swapped new switches for Seamless Network Maintenance, USB port for backup, restoring configuration and upgrading firmware

The switch supports auto-feed configuration features that revolutionize network switch setup and management. It ensures that new and replacement switches automatically receive the correct configurations without manual intervention. Additionally, it supports the traditional way of uploading or downloading the firmware / configuration through a USB dongle.

User-friendly GUI, Auto topology drawing, Editable configuration text file, Enhanced Environmental Monitoring, CPU watchdog, Snapshot switch information for trouble-shooting analysis

The user-friendly UI, innovative auto topology drawing, and topology demo make the Lantech switch much easier to use. The complete CLI enables professional engineers to configure settings via the command line. The configuration file can be exported as a text file, allowing it to be easily edited and reconfigured for mass deployment. It supports enhanced environmental monitoring of actual input voltage, current, ambient temperature, and total power load where user can set threshold to trigger an alert or event log. The built-in watchdog design can automatically reboot the switch if the CPU becomes unresponsive. With the distinctive Snapshot feature, the switch can gather data, including port statistics, system core information, configuration, and event logs, either at a specific point in time or by scheduling, to address switch issues and analyze the root cause promptly.

‍

OPTIONAL FEATURES

Optional IEC 62443-4-2Model with Physical Tamper Resistance and a Variety of Security Measures
For enhanced cybersecurity, the optional IEC 62443-4-2 is available on standard models. This includes over 90 security measures such as vulnerability checking, encrypted files, public key management, strong password enforcement, account management, and both penetration and stress testing. It emphasizes protection against unauthorized access, tampering, and malware through detailed log events and roots of trust security IC.

Optional LantechView for Lantech devices maintenance

LantechView** can automatically discover Lantech devices on the network, providing seamless configuration management across multiple IP subnets and VLAN areas (single device and batch). It also supports firmware management, allowing single and batch verification and simultaneous upgrades to the latest firmware versions.

To learn more about Lantech LantechView** software solutions, please refer to  https://www.lantechcom.tw/global/eng/download/datasheet/D-LantechView.pdf

‍

OS2 Pro vs. OS2 Pro - SEC models comparison‍

‍

‍
