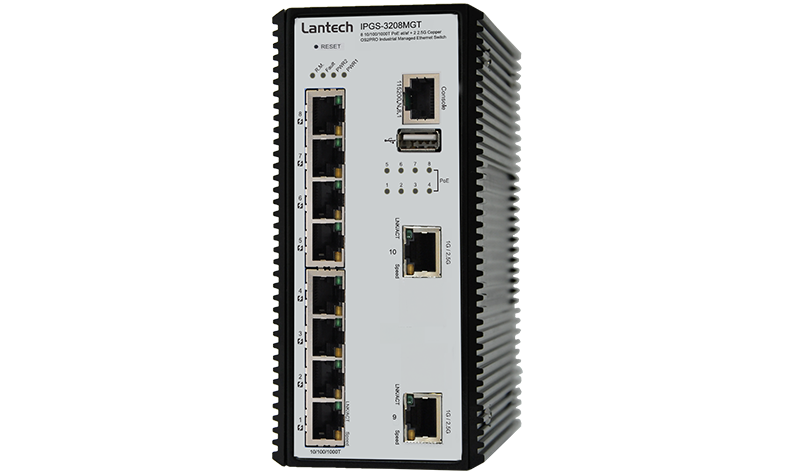

The Lantech I(P)GS-3208MGT(OS2 Pro platform) is a compact router switch, offering a total PoE budget upto 240W, designed for 24V/48V input applications. It features 8 10/100/1000T +2 1G/2.5G Copper ports, along with 8 PoE 802.3af/at Ethernet ports. The switchoffers Layer 2 management, NAT, unique AUTO-FEED configuration, MQTT, advancedsecurity functions and Health diagnostic snapshot maintenance to ensurereliable and easy onboard network deployment. Its WebGUI and complete CLIinterface make configuration straightforward for all skill levels.Additionally, the OPEN API document format enhances central managementefficiency, making it ideal for fleet management and AIoT applications.

PoEbudget up to 240W for 8 Ports with PD detection, auto PD reboot, scheduling andPoE & Ethernet power input galvanic isolation; support Perpetual*/Fast PoE

IPGS-3208MGTsupports maximum PoE budget of 240W with advanced PoE management features,including PoE auto-detection and scheduling. The PoE detection function canidentify if a connected Powered Device (PD) becomes unresponsive and then auto-restartthe PD. Moreover, PoE scheduling allows for a pre-set power feeding schedulebased on a routine timetable. Each PoE port can be enabled or disabled, and itprovides information on voltage, current, power (W), and temperature.

Perpetual* and Fast PoE provides immediate andcontinuous power to devices during PSE switch reboots.

There isgalvanic isolation between the power input and the Ethernet power system.

PoEmodels: Dual power 24V/48V input, high PoE budget

The PoE modelis designed with dual power supply at 9V~36VDC input (24V model) and canprovide 120W PoE budget. The 48V model can support dual power 44VDC~56VDC inputand can have 240W PoE budget.

NonPoE models: 24VI input voltage selection

The non-PoEmodel is designed with dual power supply at 9V~36VDC input (24VI model). Theswitch is able to work at dual 24VDC. The Ethernet galvanic isolation is builtin.

ComprehensiveNetwork Protection Against DDoS and Layer 2 Threats

LantechOS2Pro generation integrates advanced security mechanisms to safeguard bothswitches and networks.
Key features include DDoS attack mitigation, 802.1X port-based authentication,Dynamic ARP Inspection (DAI), IP Source Guard, and Port Security, providingmulti-layer protection against spoofing, unauthorized access, and trafficfloods. These security capabilities ensure stable, resilient network operation.

LantechOS2 PRO Platform with advanced L2 management and L3 routing protocols incl. OSPFand RIP V1&V2
Theswitch developed on Lantech OS2 Pro platform is equipped with Layer 2management and some Layer 3 routing protocols, including OSPF and RIP V1,V2. Engineeredfor diverse applications, this platform also supports a range of features suchas NAT, Port forwarding, multiple Static IP address, DHCP server/option/client/relay/portbased, VLAN, IGMP, RSTP/ G.8032 enhanced ring recovery, LACP etc.

Support Open APIdocument for Restful API for better switch performance

The switch supports an OPEN API that uses JSONformat to access and manipulate data using GET, PUT, POST, and DELETE methods,thereby avoiding the CPU utilization associated with traditional SNMPmanagement.

mDNS (Multicast DNS)and DNS server/client feature and MQTT-role of Publisher or Broker

It supports mDNS (Multicast DNS) which enableshosts in the LAN to discover and communicate with devices each other incompliance with the DNS protocol, without requiring a traditional DNS server. Theswitch can act as MQTT Publisher or Broker that can send data to the brokerthen broker distributors the “payload” to the subscribers all in a verylightweight protocol.

ReliableeMMC for better power efficiency and reliability

The switchutilizes eMMC for firmwarestorage. The eMMC’s standardinterface streamlines the design process while delivering improved powerefficiency and enhanced reliability, thereby extending the storage’s lifespan.

Auto feedconfiguration for swapped new switches for Seamless Network Maintenance, USBport for backup, restoring configuration and upgrading firmware

The switch supports auto-feed configuration features that revolutionize network switchsetup and management. It ensures that new and replacement switchesautomatically receive the correct configurations without manual intervention.Additionally, it supports the traditional way of uploading or downloading thefirmware / configuration through a USB dongle.

User-friendlyGUI, Auto topology drawing, Editable configuration text file, EnhancedEnvironmental Monitoring, CPU watchdog, Snapshot switch information fortrouble-shooting analysis

Theuser-friendly UI, innovative auto topology drawing, and topology demo make the Lantech switch much easier to use. Thecomplete CLI enables professional engineers to configure settings via thecommand line. The configuration file can be exported as a text file, allowingit to be easily edited and reconfigured for mass deployment. It supports enhancedenvironmental monitoring of actual input voltage, current, ambient temperature,and total power load where user can set threshold to trigger an alert orevent log. The built-in watchdog design can automatically reboot the switch ifthe CPU becomes unresponsive. With the distinctive Snapshot feature, the switchcan gather data, including port statistics, system core information,configuration, and event logs, either at a specific point in time or byscheduling, to address switch issues and analyze the root cause promptly.

OPTIONAL FEATURES

Optional IEC 62443-4-2Model with Physical Tamper Resistance and a Variety of Security Measures
Forenhanced cybersecurity, the optional IEC 62443-4-2 is available on standardmodels. This includes over 90 security measures such as vulnerability checking,encrypted files, public key management, strong password enforcement, accountmanagement, and both penetration and stress testing. It emphasizes protectionagainst unauthorized access, tampering, and malware through detailed log eventsand roots of trust security IC.

Optional LantechViewfor Lantech devices maintenance

LantechView** can automatically discoverLantech devices on the network, providing seamless configuration managementacross multiple IP subnets and VLAN areas (single device and batch). It also supportsfirmware management, allowing single and batch verification and simultaneousupgrades to the latest firmware versions.

To learn more about Lantech LantechView** softwaresolutions, please refer to  https://www.lantechcom.tw/global/eng/download/datasheet/D-LantechView.pdf

‍

OS2 Pro vs. OS2 Pro - SEC models comparison‍

‍

‍
