I(P)GS-5400-2P
4 Modular Slots L2+ Industrial Managed (PoE at) Ethernet Switch
I(P)GS-5400-2P
4 Modular Slots L2+ Industrial Managed (PoE at) Ethernet Switch
I(P)GS-5400-2P
4 Modular Slots L2+ Industrial Managed (PoE at) Ethernet Switch
OVERVIEW
Lantech I(P)GS-5400-2P is a high performance L2 + managed industrial Ethernet switch which provides L2 wire speed and advanced security function for network aggregation and backbone deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also supports train ring, enhanced mode, multiple VLAN mode with easy configuration. The comprehensive QoS, QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, TACACS+**, SSH v2/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ are supported and also required in large network. It also supports Cisco Discovery Protocol (CDP) for Ciscoworks to detect the switch info and show on L2 map topology.

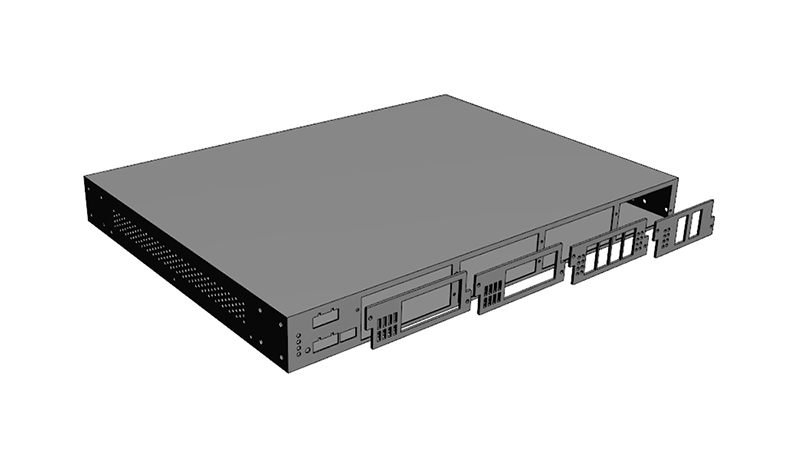

The highly flexible modular design consisting of maximum 24x Gigabit T+4xDual SFP,24x Giga PoE at/af (IPGS-5400-2P)+4xDual SFP, 28xGigabit/100M SFP, 18x100M ST/SC + 4 Gigabit SFP covers the widest deployment of applications.
Enhanced G.8032 ring, 16 MSTI MSTP; MRP ring
Lantech I(P)GS-5400-2P features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering Multicast packets. It also supports various ring topologies that covers double ring, multi-chain (under enhanced ring), train ring, basic ring, multiple-VLAN ring and auto-ring by easy setup than others. The innovative auto-Ring configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows each spanning tree for each VLAN for redundant links with 16 MSTI.
MRP (Media Redundancy Protocol) can be supported for industrial automation networks.
Miss-wiring avoidance, Loop protection, Node failure protection
The I(P)GS-5400-2P also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech I(P)GS-5400-2P is able to alert with the LED indicator and disable ring automatically. Node failure protection ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. This feature prevents the broken ring and keep ring alive without any re-configuration needed. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.
QoS by VLAN for legacy device
QoS by VLAN can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.
QinQ, QoS and GVRP supported
It supports the QinQ, QoS, GVRP for large VLAN segmentation.
802.1X security by MAC address
MAC-based port authentication is an alternative approach to 802.1x for authenticating hosts connected to a port. By authenticating based on the host's source MAC address, the host is not required to run a user for the 802.1x protocol. The RADIUS server that performs the authentication will inform the switch if this MAC can be registered in the MAC address table of switch.
IGMPv3,GMRP, router port, static multicast forwarding and multicast Ring protection
The unique multicast protection under enhanced G.8032 ring can offer immediate self-recovery instead of waiting for IGMP table timeout. It also supports IGMPv3, GMRP, router port and static multicast forwarding binding by ports for video surveillance application.
Reliable network protection, node failure protection
The I(P)GS-5400-2P also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech I(P)GS-5400-2P is able to alert with the LED indicator and send out an email or traps. Node failure protection ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. This feature prevents the broken ring and keep ring alive without any re-configuration needed. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.
DHCP option 82 & Port based, Mac based DHCP, Option66, DHCP Snooping, IPv6 DHCP server
DHCP server can assign dedicated IP address by MAC or by port (Port based for single switch) , it also can assign IP address by port for multiple switches with single DHCP option82 server. DHCP Snooping is supported. For the ending device which need to download file from TFTP server, DHCP Option66 server can offer IP address of TFTP server to DHCP client. Basic IPv6 DHCP service can be supported.
Auto-provisioning for firmware/configuration update
The switch supports auto-provisioning for switch to auto-check the latest software image and configuration through TFTP server.
User friendly UI, Auto topology drawing, complete CLI
The user friendly UI, innovative auto topology drawing and topology demo makes I(P)GS-5400-2P much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line.
Editable configuration file
The configuration file of Lantech I(P)GS-5400-2P can be exported and edited with word processor for the other switches configuration with ease. The factory reset button can restore the setting back to factory default. The built-in watchdog design can automatically reboot the switch when CPU is found dead.
Environmental monitoring for switch inside information
The environmental monitoring can detect switch overall temperature, total PoE load, voltage and current where can send the SNMP traps and email when abnormal.The PoE modules support advanced PoE management including PoE detection and scheduling. PoE detection can detect if the connected PD is hang up then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. It also supports per-port PoE status including current, voltage, watt and temperature information.
Event log & message; 2 DI + 2DO
In case of event, the I(P)GS-5400-2P is able to send an email to pre-defined addresses as well as SNMP Traps out immediately. It provides 2DI and 2DO. When disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.
Various power input, high ESD protection
Lantech I(P)GS-5400-2P chassis and modules are designed for easy maintenance and installation; It also supports dual power supplies (DC12~48V/ isolated 36~75VDC)and (isolated 100~240VAC/120~370VDC) to increase the network reliability. It also supports terminal block for connecting DC 48V PoE power source(IPGS-5400-2P).
LantechI(P)GS-5400-2P features high reliability and robustness withstanding extensive EMI/RFI phenomenon, inductive load switching, high ESD (±8000V ESD/ ±3000VEFT), high fault current environment usually found in Steel automation, Mining and Process control etc. IGS-5400-2P-E can run under operational temperature ranging from -40°C~75°C for the harsh and critical environment.
*Future Release
**Optional
***Optional DDM SFP required
SPECIFICATIONS
Hardware Specifications
IEEE Standards
| [cite_start]IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Ethernet, IEEE 802.3ab 1000Base-T Ethernet, IEEE 802.3z Gigabit Fiber, IEEE 802.3x Flow Control Capability, ANSI/IEEE 802.3 Auto-negotiation, IEEE 802.1Q VLAN, IEEE 802.1p Class of Service, IEEE 802.1X Access Control, IEEE 802.1D Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Tree, IEEE 802.3ad Link Aggregation Control Protocol (LACP), IEEE 802.1AB Link Layer Discovery Protocol (LLDP), IEEE 802.1x User Authentication (Radius), IEEE 802.3at/af PoE (IPGS-5400-2P) [cite: 1]
| |Switch Architecture
| [cite_start]Back-plane (Switching Fabric): 56Gbps [cite: 1]
| |Transfer Rate
| [cite_start]14,880pps for Ethernet port, 148,800pps for Fast Ethernet port, 1,488,000pps for Gigabit Ethernet / Gigabit Fiber port [cite: 1]
| |MAC Address
| [cite_start]16K MAC address table [cite: 1]
| |Jumbo frame
| [cite_start]10KB [cite: 1]
| |Connectors
|Max. [cite_start]28 10/100/1000T RJ-45 with auto MDI/MDI-X function, Max 28 100M Mini-GBIC: SFP sockets, Max 28 1000M Mini-GBIC: SFP sockets, RS-232 console: Female DB-9, USB for automatic backup and edited restoration configuration [cite: 1]
| |LED
|Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red), R.M (Green); [cite_start]Link/Activity (Green), Full duplex/collision (Yellow), MINI GBIC (Link/Activity) (Green) [cite: 1]
| |Power Supply
| [cite_start]2 X VAC/VDC isolated 3000V 100~240VAC/120~370VDC, 2x VDC isolated 1600V 36~75VDC, Dual input for 12V~56VDC, PoE power dual input for 45~56VDC (50-56VDC input is recommended for 802.3at 30W applications) (IPGS-5400-2P) [cite: 1]
| |Power Consumption
| [cite_start]Full load: 33W / Unload: 13W [cite: 1]
| |PoE Budget (IPGS-5400-2P)
|Max. 720W at rear side with external dual 45~56VDC input (50-56VDC input is recommended for 802.3at 30W applications); [cite_start]Higher PoE budget can be applied upon request [cite: 1]
| |Relay Alarm
|Provides one relay output for port breakdown, power fail and alarm; [cite_start]Alarm Relay current carry ability: 1A @ DC24V [cite: 1]
| |DI/DO
|2 Digital Input (DI): Level 0: -30~2V / Level 1: 10~30V (Max. input current: 8mA); [cite_start]2 Digital Output (DO): Open collector to 40 VDC, 200mA [cite: 1]

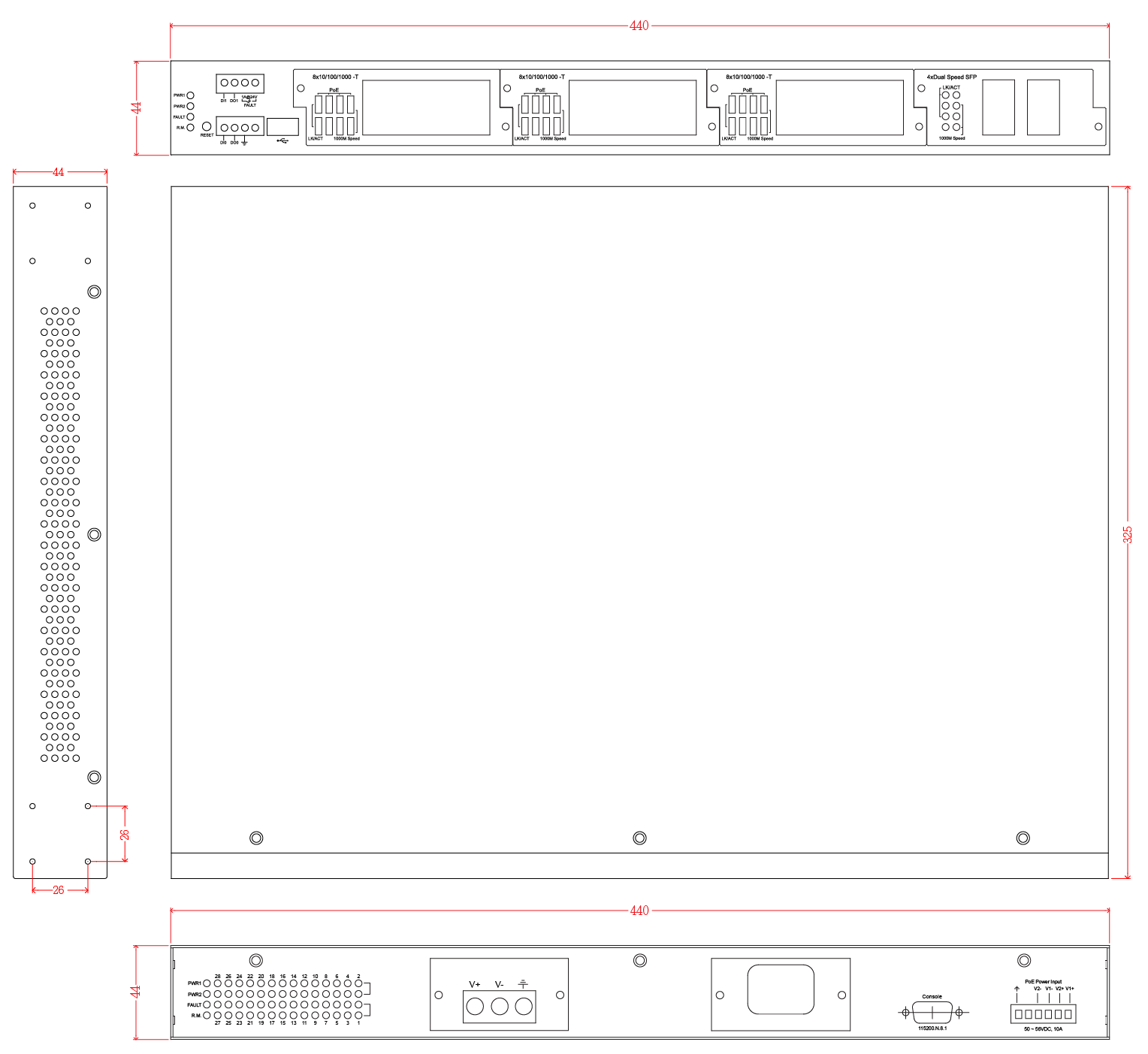

| |Case Dimension
| [cite_start]19” Metal case, IP-30; 440mm(W)x325mm(D)x44mm(H) [cite: 1]
| |Weight
| [cite_start]2.9 kgs [cite: 1]
| |Operating Humidity
| [cite_start]5%~95% (Non-condensing) [cite: 1]
| |Operating Temperature
|Standard: -20°C ~60°C; [cite_start]-E model: -40°C ~75°C [cite: 1]
| |Storage Temperature
| [cite_start]-40°C ~85°C [cite: 1]
| |EMI
| [cite_start]FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN55032 Class A, CE EN55024 [cite: 1]
| |Railway verification
| [cite_start]EN50121-4 [cite: 1]
| |Safety
| [cite_start]EN IEC 62368-1 [cite: 1]
| |Stability Testing
| [cite_start]IEC 60068-2-6: 2007 (Vibration), IEC 60068-2-27: 2008 (Shock) [cite: 1]
| |MTBF
| [cite_start]572,361hrs [cite: 1]
| |Warranty
| [cite_start]5 years [cite: 1]
|Software Specifications
Management
| [cite_start]SNMP v1 v2c, v3/ Web/Telnet/CLI Management [cite: 1]
| |SNMP MIB
| [cite_start]MIB, MIBII, SNMP MIB, Bridge MIB, IF MIB, RMON MIB, Private MIB [cite: 1]
| |VLAN
|Port Based VLAN IEEE 802.1Q Tag VLAN (256 entries) /VLAN ID (Up to 4K, VLAN ID can be assigned from 1 to 4096.) GVRP, QinQ, Protocol based VLAN; [cite_start]IPv4 Subnet based VLAN [cite: 1]
| |Port Trunk with LACP
| [cite_start]LACP Port Trunk: 8 Trunk groups [cite: 1]
| |LLDP
| [cite_start]Support LLDP to allow switch to advise its identification and capability on the LAN [cite: 1]
| |CDP
| [cite_start]Cisco Discovery protocol for topology mapping [cite: 1]
| |ITU G.8032
| [cite_start]Support ITU G.8032 v2/2012 for Ring protection in less than 20ms for self-heal recovery (single ring enhanced mode), Support various ring/chain topologies, Includes train ring, auto ring, basic single ring, enhanced ring, multiple-VLAN ring, Enhanced G.8032 ring configuration with ease, Cover multicast & data packets protection [cite: 1]
| |User friendly UI
| [cite_start]Auto topology drawing, Topology demo, DDM threshold monitoring with dB values***, Complete CLI supported [cite: 1]
| |PoE Management
|PoE Detection to check if PD is hang up then restart the PD, PoE Scheduling to On/OFF PD upon routine time table, Per-port PoE status including current, voltage, watt and temperature [cite: 1]
| |Spanning Tree
|Supports IEEE802.1d Spanning Tree and IEEE802.1w Rapid Spanning Tree, IEEE802.1s Multiple Spanning Tree 16 MSTI [cite: 1]
| |Quality of Service
|The quality of service determined by port / CoS / ToS / VLAN [cite: 1]
| |Class of Service
|Support IEEE802.1p class of service, per port provides 8 priority queues [cite: 1]
| |Port Mirror
|Support 3 mirroring types: “RX, TX and Both packet” [cite: 1]
| |IGMP
|Support IGMP snooping v1,v2,v3; Supports IGMP static route; 1024 multicast groups; IGMP router port ; IGMP query; GMRP [cite: 1]
| |Static MAC-Port Bridge
|Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application [cite: 1]
| |Bandwidth Control
|Support ingress packet filter and egress packet limit. The egress rate control supports all of packet type, the limit rates are 0~100Mbps. Ingress filter packet type combination rules are Broadcast/Multicast/Flooded Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all types of packet. The packet filter rate can be set from 0 to 100Mbps. The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter and the egress packet limit. [cite: 1]
| |Network Security
|Support 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder. 802.1X access control for port based and MAC based authentication/MAC-Port binding; Management access control with priority; Ingress/Egress ACL L2/L3; SSL/ SSH v2 for Management; HTTPS for secure access to the web interface; TACACS+** for Authentication [cite: 1]
| |MLD Snooping
| [cite_start]Support IPv6 Multicast stream [cite: 2]
| |Flow Control
| [cite_start]Support Flow Control for Full-duplex and Back Pressure for Half-duplex [cite: 4]
| |Protection
| [cite_start]Miss-wiring avoidance, Node failure protection, Loop protection [cite: 6, 7, 8]
| |System Log
| [cite_start]Support System log record and remote system log server [cite: 10]
| |SNMP Trap
| [cite_start]Up to 10 trap stations; trap types including: Device cold start, Authorization failure, Port link up/link down, DI/DO open/close, Typology change(ITU ring), Power failure, Environmental abnormal [cite: 12, 13, 14, 15, 16, 17, 18, 19]
| |DHCP
|Provide DHCP Client/ DHCP Server/DHCP Option 82 (Client & Server)/Port based DHCP; [cite_start]DHCP Snooping, DHCP Option 66; basic IPv6 DHCP server [cite: 21, 22]
| |Mac based DHCP Server
| [cite_start]Assign IP address by Mac [cite: 24]
| |DNS
| [cite_start]Provide DNS client feature [cite: 26]
| |SNTP
| [cite_start]Support SNTP to synchronize system clock in Internet [cite: 28]
| |Diagnostic
| [cite_start]Support Ping and DDM information [cite: 30]
| |Environmental Monitoring
| [cite_start]Internal sensor to detect temperature, voltage and current and send SNMP traps and emails if any abnormal events [cite: 32]
| |Factory reset button & watch dog design
|Factory reset button to restore back to factory default settings. [cite_start]Watch dog design can reboot switch automatically under certain circumstances [cite: 34]
| |Firmware Update
|Supports TFTP firmware update, TFTP backup and restore; [cite_start]HTTP firmware upgrade [cite: 36]
| |USB Configuration backup and restore
|Supports text editable configuration file for system quick installation to backup and restore; [cite_start]USB dongle for automatic back up and editable restore [cite: 38, 39]
| |Auto Provision
| [cite_start]To verify switch firmware with the latest or certain version [cite: 41]
|*Future Release
**Optional
***Optional DDM SFP required

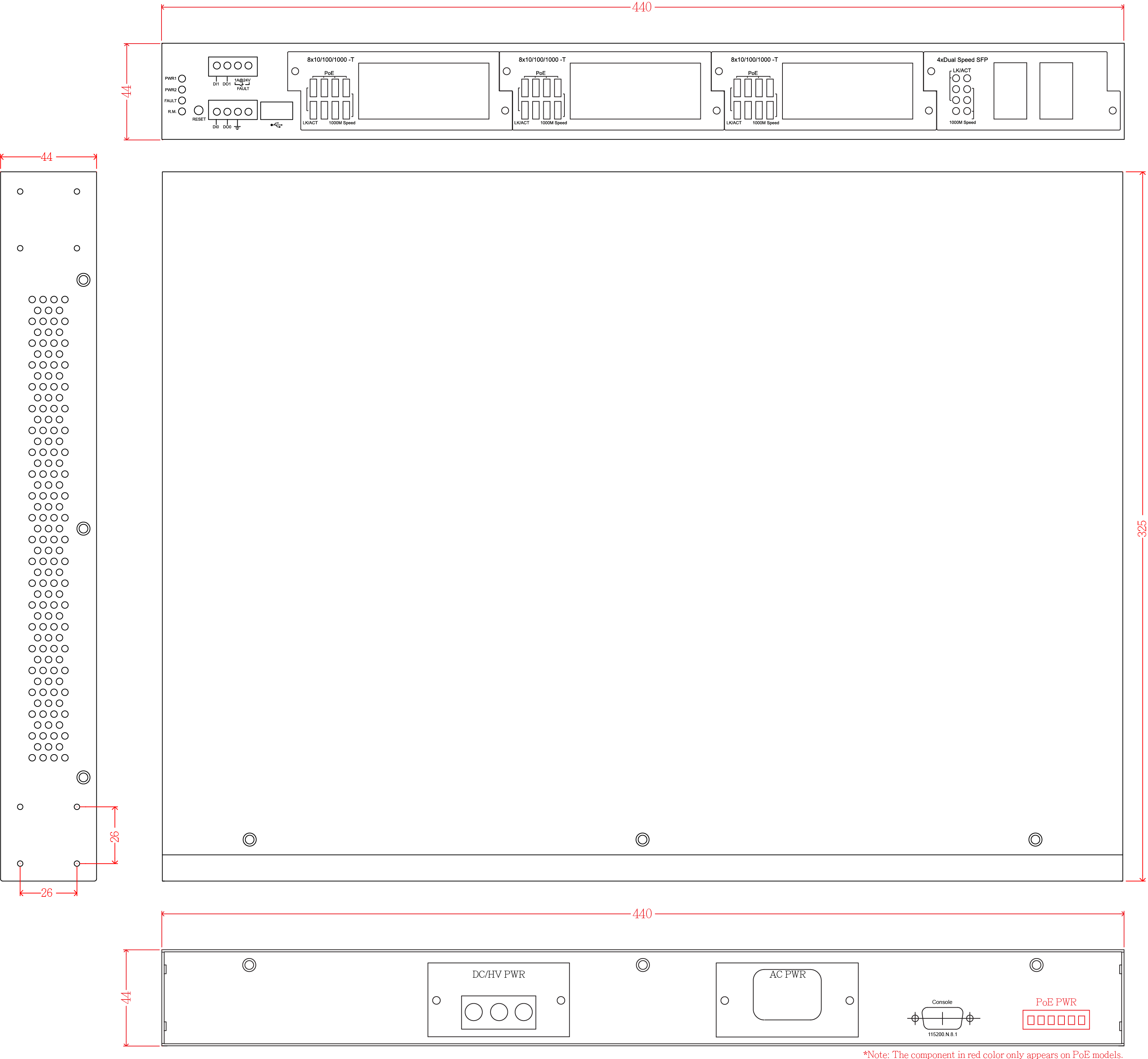

GS-5400-2P-20260427.png)
ORDERING INFORMATION
For optional power supply, add +DC, +DCI, +AC, or +HV to the part number. Note: the modules will be factory pre-installed.
Modules for Slot 1-3
Note: the modules will be factory pre-installed.
Modules for Slot 4
Note: the modules will be factory pre-installed.
OPTIONAL ACCESSORIES - Power
|
| EOTH000702 | Isolation Power 36-75VDC, 2.5A
|
| EOTH000703 | Isolation Power 100-240VAC IEC320 socket, 2.0A max, 47-63HZ
|
| EOTH000704 | Power Input Module 12-56VDC, 2.5A
|
OPTIONAL ACCESSORIES - DIN Rail Power for PoE
OPTIONAL ACCESSORIES - Mini GBIC (SFP)
