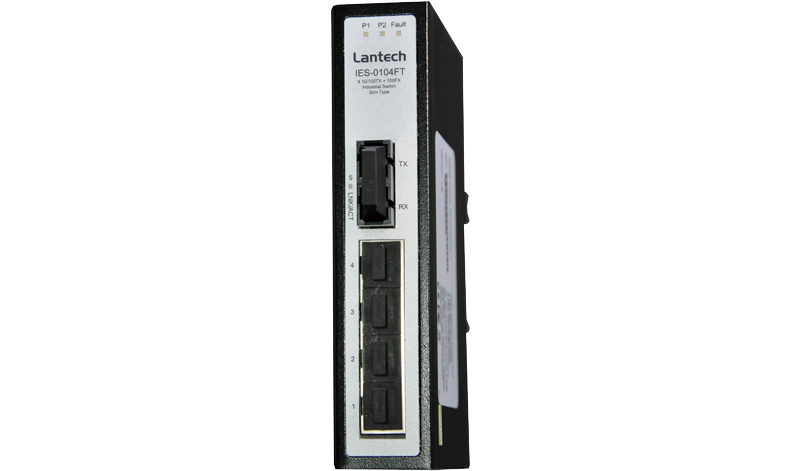

IES-0104FT
4 10/100TX + 1 100FX Industrial Unmanaged Switch
OVERVIEW
The Lantech IES-0104FT is a 4-port 10/100TX + 1-port 100FX Industrial Switch for plug-and-play installation. It can auto detect power inputs and supports wide input range from 9 to 56VDC/ -9 to -56VDC. To increase reliability, the IES-0104FT provides redundant power design with polarity reverse protection as well as EFT and ESD protections.
The Lantech IES-0104FT is designed to meet the demands of industrial environments, comes packaged in a robust IP-30 housing and has been tested extensively to meet Industrial EMI and EMC standards. Rigorous mechanical testing has also been undertaken with free fall, shock, and vibration stability test, which ensure long term reliability in critical industrial environments. The -E model can be used in extreme environments with an operating temperature range from -40°C to 70°C.
FEATURES
- RJ-45 port support Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- Back-plane (Switching Fabric): 1.0Gbps
- 2K MAC address table
- Supports Wide Operating Temperature (-40°C~70°C)
- Provides EFT protection ±2000 VDC for power line
- Supports ±6000 VDC Ethernet ESD protection
- Provides broadcast storm protection
- IP-30 Protection with DIN Rail and Wall Mount Design
- Power Supply
- Wide-range Redundant Power Design
- Power Polarity Reverse Protect
- Overload Current Re-settable Fuse Present
SPECIFICATIONS
Hardware Specifications
Standards
|IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX and 100Base-FX
Fast Ethernet
IEEE802.3x Flow Control and Back Pressure
Switch Architecture
|Back-plane (Switching Fabric): 1.0Gbps
Packet size throughput : 64bytes~1522bytes
Transfer Rate
|14,880pps for Ethernet port
148,800pps for Fast Ethernet port
Mac Address
|2K MAC address table
| |Connectors
|10/100TX: 4 x RJ-45 with auto MDI/MDI-X function
100M fiber: 1 x SC type connector for Single-mode or Multi-mode type fiber cable
[Multi-Mode] power budget: Min: 9dB , MAX: 19dB.
[Single-Mode] power budget: Min: 19dB , MAX: 26dB.
Network Cable
|10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable EIA/TIA-568 100-ohm (100m)
Optical Cable
|Multi-mode: 50/125um~62.5/125um
Single-mode: 9/125um
Available distance: 2km (Multi-mode)
30km (Single-mode)
Wavelength: 1310nm (Multi-mode/Single-mode)
Protocol
|CSMA/CD
| |LED
|Per port:
Link/Activity (Green), Full duplex/Collision (Yellow)
Per unit:
Power 1 (Green), Power 2 (Green), Fault(Red)
Reserve polarity protection
|Present
| |Overload current protection
|Present
| |Power Supply
|24 VDC (9~56VDC), 12~36VAC**,Redundant power with polarity reverse protect function and removable terminal block
| |Power Consumption
|4.44 Watts
| |Operating Humidity
|5% ~ 95% (Non-condensing)
| |Operating Temperature
|-20°C~60°C / -4°F~140°F (Standard model)
-40°C~70°C / -40°F~158°F (-E model)
Storage Temperature
|-40°C~85°C / -40°F~185°F

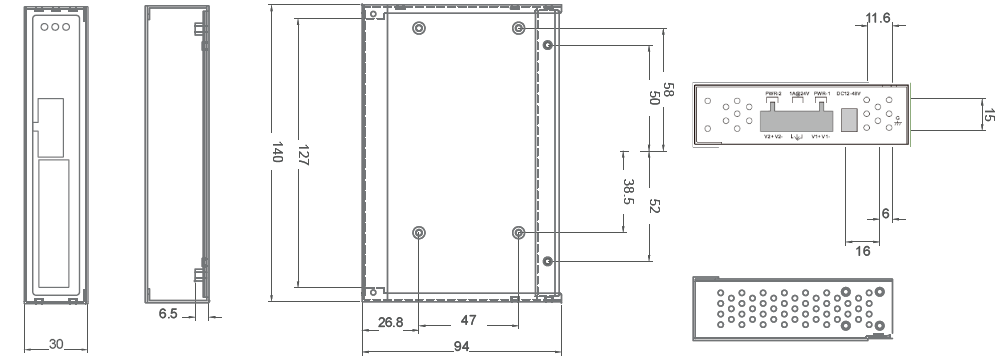

| |Case Dimension
|Metal case. IP-30, 30 (W) x 95 (D) x 140(H) mm
| |Weight
|800 g
| |Installation
|DIN Rail and Wall Mount Design
| |EMI & EMS
|FCC Class A,
CE EN61000-4-2 (ESD),
CE EN61000-4-3 (RS),
CE EN61000-4-4 (EFT),
CE EN61000-4-5 (Surge),
CE EN61000-4-6 (CS),
CE EN61000-4-8,
CE EN61000-4-11,
CE EN61000-4-12,
CE EN61000-6-2,
CE EN61000-6-4
Safety
|CE/EN60950-1
| |Stability Testing
|IEC60068-2-32 (Free fall),
IEC60068-2-27 (Shock),
IEC60068-2-6 (Vibration)
MTBF
|380717 hrs
|*Optional
