IGS-0204DSFP
4 10/100/1000T + 2 Dual Speed SFP Industrial Switch
IGS-0204DSFP
4 10/100/1000T + 2 Dual Speed SFP Industrial Switch
IGS-0204DSFP
4 10/100/1000T + 2 Dual Speed SFP Industrial Switch
OVERVIEW

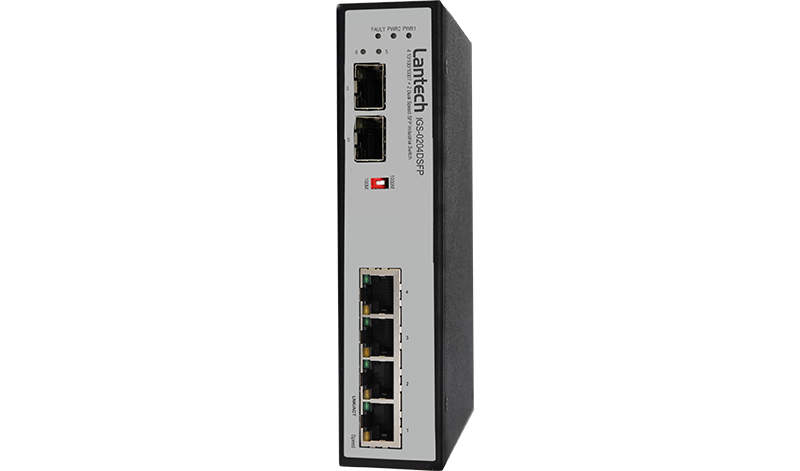

The Lantech IGS-0204DSFP is a 4 10/100/1000T + 2 Dual Speed SFP Industrial Switch. This slim switch is wall-mountable** or DIN rail mountable, making installation easier and flexible.
The Lantech IGS-0204DSFP is designed to meet the demands of Industrial environments, comes packaged in a robust IP30 housing and has been tested extensively to meet Industrial EMI and EMC standards.
The switch supports wide operating temperature, range from -40°C to 75°C.
SPECIFICATIONS
Hardware Specifications
Standards
|IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T Ethernet
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
Standards
| [cite_start]IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T Ethernet, IEEE802.3z Gigabit fiber, IEEE802.3x Flow Control and Back Pressure [cite: 1]
| |Switch Architecture
| [cite_start]Back-plane (Switching Fabric): 12Gbps [cite: 1]
| |Transfer Rate
| [cite_start]14,880pps for Ethernet port, 148,800pps for Fast Ethernet port, 1,488,000pps for Gigabit Ethernet port [cite: 1]
| |Packet Buffer
| [cite_start]1Mbits [cite: 1]
| |Mac Address
| [cite_start]8K MAC address table [cite: 1]
| |Jumbo frame
| [cite_start]10KB [cite: 1]
| |Connector
| [cite_start]10/100/1000T: 4 x RJ-45 with Auto MDI/MDI-X function, Mini-GBIC: 2 x 100/1000 Dual Speed SFP Sockets [cite: 1]
| |DIP Switch
| [cite_start]SFP Speed 1000M or 100M [cite: 1]
| |Protocol
| [cite_start]CSMA/CD [cite: 1]
| |LED
|Per unit: Power 1 (Green), Power 2 (Green), Fault (Red); 4 port 10/100/1000T: Link/Activity (Green), Full duplex/Collision (Yellow); [cite_start]SFP port: LNK/ACT(Green) [cite: 1]
| |Power Supply
| [cite_start]Dual DC 12V~56V [cite: 1]
| |Operating Humidity
| [cite_start]5% to 95% (Non-condensing) [cite: 1]
| |Operating Temperature
| [cite_start]-40°C ~ 75°C [cite: 1]
| |Storage Temperature
| [cite_start]-40°C ~ 85°C [cite: 1]
| |Case Dimension

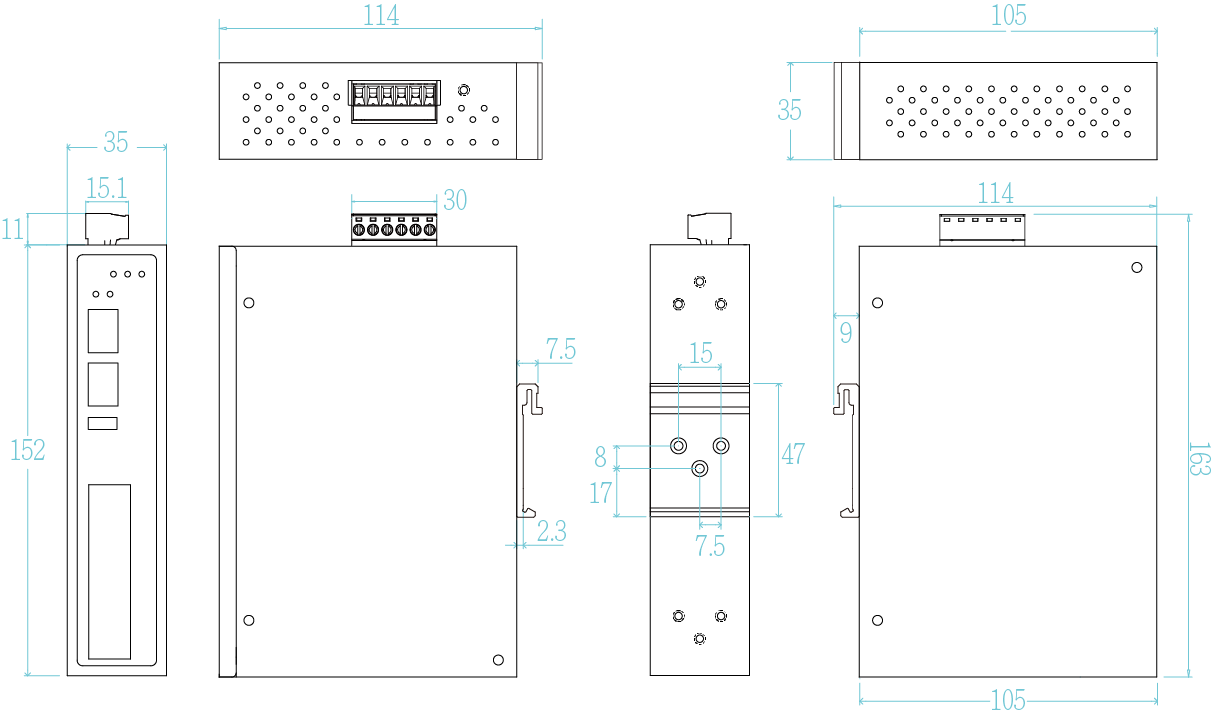

| [cite_start]Metal case IP-30, 35mm (W) x 152mm (H) x 105mm (D) [cite: 1]
| |Weight
| [cite_start]文件中此段落未標註 (Not specified in this section) [cite: 1]
| |Installation
| [cite_start]DIN rail or Wall mounting design [cite: 1]
| |EMC/EMI
| [cite_start]FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN55032 Class A, CE EN55024 [cite: 1]
| |Safety
| [cite_start]EN 60950-1 [cite: 1]
| |MTBF
| [cite_start]1,890,546 hrs [cite: 1]
| |Warranty
| [cite_start]5 years [cite: 1]
|
ORDERING INFORMATION
OPTIONAL ACCESSORIES - DIN Rail Power
OPTIONAL ACCESSORIES - Mini GBIC (SFP)
