OVERVIEW

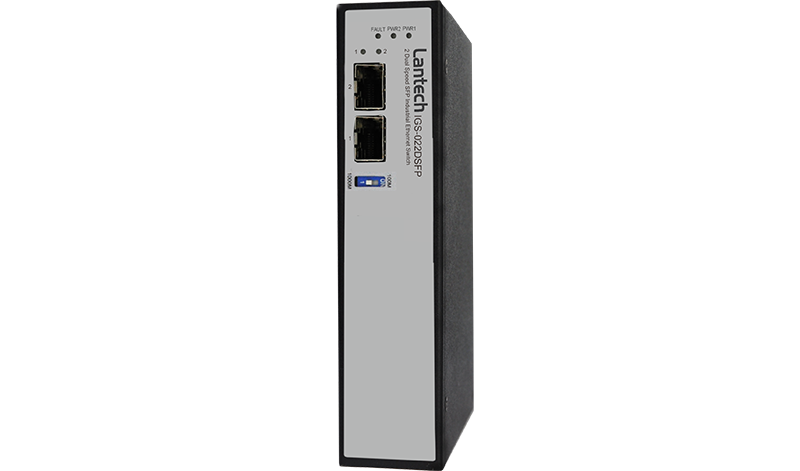

The Lantech IGS-022DSFP is a 1 100M/1000M SFP + 1 1000M SFP Industrial Ethernet Switch Converter with LLF function. This slim Converter is wall-mountable** or DIN rail mountable, making installation easier and flexible.
The Lantech IGS-022DSFP is designed to meet the demands of Industrial environments, comes packaged in a robust IP30 housing and has been tested extensively to meet Industrial EMI and EMC standards. Rigorous mechanical testing has also been undertaken to comply with free fall, shock and vibration stability test requirements.
The switch converter supports wide operating temperature, range from -40°C to 75°C.
FEATURES
- DIP switch to adjust SFP 100M or 1000M speed on first SFP port
- Built in Link Loss Forwarding Technology
- Supports wide operating temperature (-40°C~75°C)
- Redundant power with polarity reverse protection
- IP-30 protection with DIN Rail and Wall Mount design
- Relay output for power fail and alarm
SPECIFICATIONS
Hardware Specifications
Transfer Rate
|148,800pps for 100M speed SFP
1,488,000pps for Gigabit speed SFP
Link Loss Forward
|Ensures high availability by disabling both bridged interfaces if one interface fails
| |Connector
|Mini-GBIC: 1 x 100M/1000M Dual Speed SFP Socket (adjust by DIP switch)
1 x 1000M SFP Socket
DIP Switch
|SFP Speed 1000M or 100M
| |LED
|Per unit: Power 1 (Green), Power 2 (Green), Fault (Red)
SFP port: LNK/ACT(Green)
Power Supply
|Dual DC 9.5V~56V
| |Operating Humidity
|5% to 95% (Non-condensing)
| |Operating Temperature
|-40°C ~ 75°C
| |Storage Temperature
|-40°C ~ 85°C

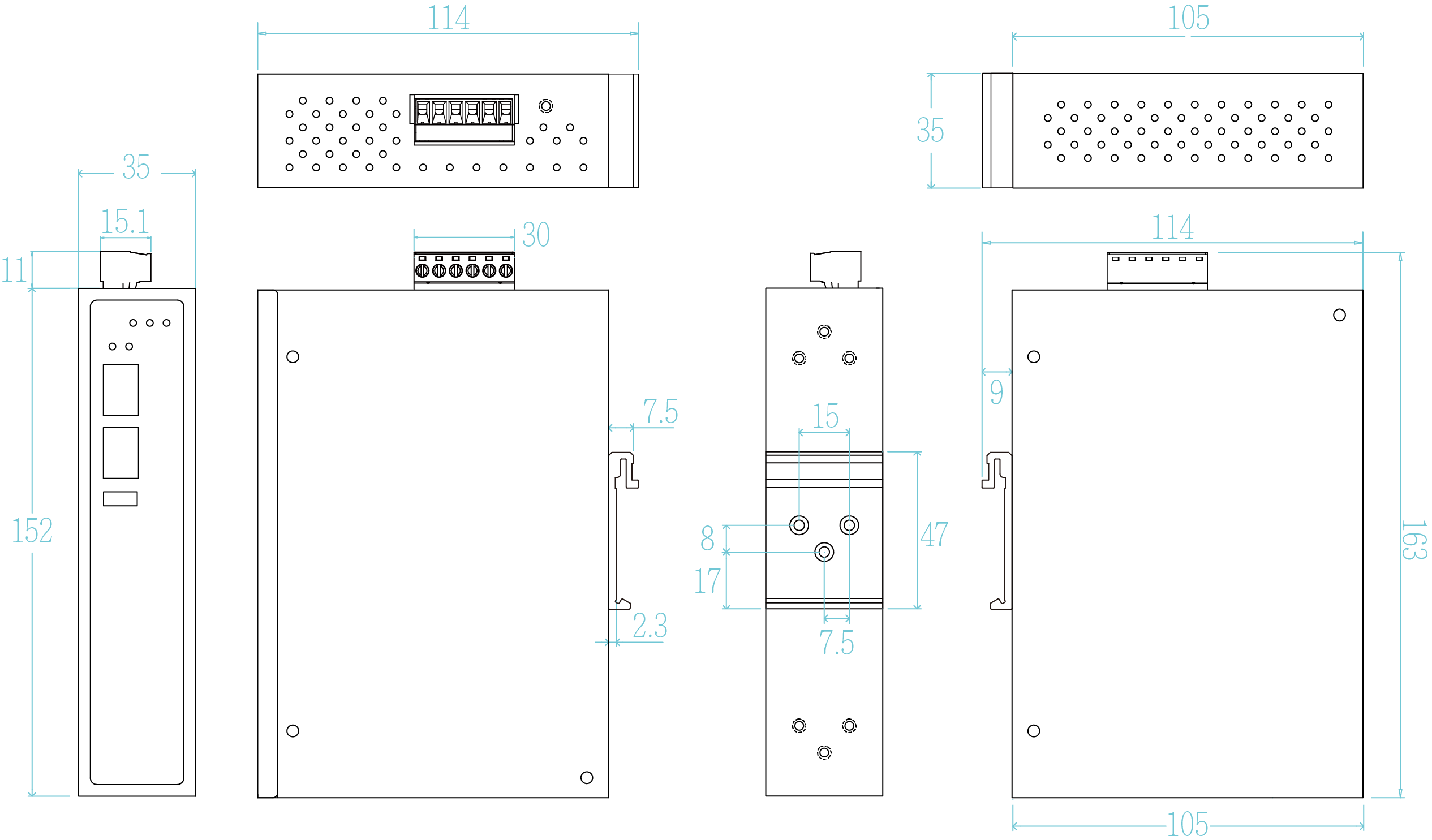

| |Case Dimension
|IP30, 35mm (W) x 152mm (H) x 105mm (D)
| |Installation
|DIN rail or Wall mounting design
| |EMC/EMI
|FCC Class A,
CE EN61000-4-2 (ESD),
CE EN61000-4-3 (RS),
CE EN-61000-4-4 (EFT),
CE EN61000-4-5 (Surge),
CE EN61000-4-6 (CS),
CE EN61000-4-8,
CE EN55032 Class A, CE EN55024
Safety
|EN 60950-1
| |MTBF
|1,890,546 hrs (IEC 62380 standards)
| |Warranty
|5 years
|
