OVERVIEW

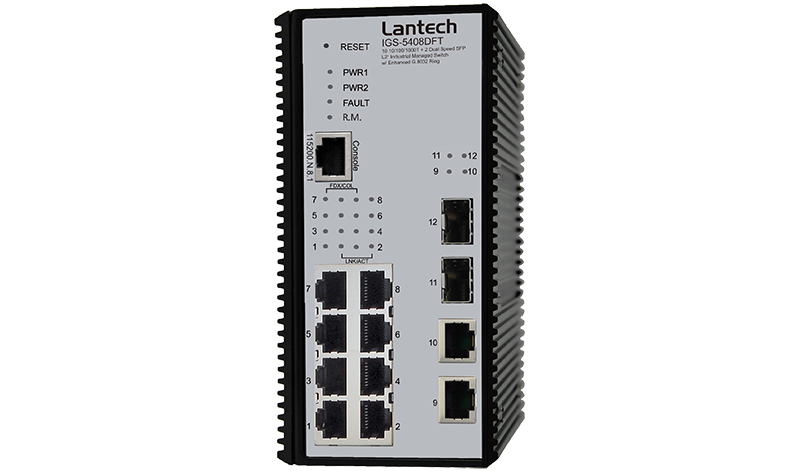

LantechIGS-5408DFT-PT is a high performance L2+ (Gigabit uplink) switch with 810/100/1000T + 2 10/100/1000T + 2 Dual Speed SFP that complies with IEC 61850-3& IEEE 1613. It delivers ITU G.8032 enhanced ring recovery less than 20msin single ring while also supports train ring, enhanced mode, multiple VLANmodel. The comprehensive QoS, QoS by VLAN, advanced security includingINGRESS/EGRESS ACL L2/L3, TACACS+**, SSH v2/SSL, Mac based DHCP server, DHCPOption 82, DHCP server, IGMPv1/v2/v3/router port, QinQ are supported and alsorequired in large network.
The built-inMMS server allows SCADA to control & monitor switch for data modeling.
Miss-wiring avoidance, Loop protection, Node failure protection
The IGS-5408DFT also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IGS-5408DFT is able to alert with the LED indicator and disable ring automatically. Node failure protection ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. This feature prevents the broken ring and keep ring alive without any re-configuration needed. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.
Enhanced G.8032 ring, 16 MSTI MSTP; MRP ring
Lantech IGS-5408DFT features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering Multicast packets. It also supports various ring topologies that covers double ring, multi-chain (under enhanced ring), train ring, basic ring multiple-VLAN ring and auto-ring by easy set up than others. The innovative auto-Ring configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows RSTP over VLAN for redundant links with 16 MSTI.
MRP (Media Redundancy Protocol) can be supported for industrial automation networks
DHCP option 82 & Port based, Mac based DHCP, Option66, DHCP Snooping, IPv6 DHCP server
DHCP server can assign dedicated IP address by MAC or by port (Port based for single switch) , it also can assign IP address by port for multiple switches with single DHCP option82 server. DHCP Snooping is supported. For the ending device which need to download file from TFTP server, DHCP Option66 server can offer IP address of TFTP server to DHCP client. Basic IPv6 DHCP service can be supported.
QoS by VLAN for legacy devices
QoS by VLAN can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.
QinQ, QoS and GVRP supported
It supports the QinQ, QoS, GVRP for large VLAN segmentation.
802.1X security by MAC address
MAC-based port authentication is an alternative approach to 802.1x for authenticating hosts connected to a port. By authenticating based on the host's source MAC address, the host is not required to run a user for the 802.1x protocol. The RADIUS server that performs the authentication will inform the switch if this MAC can be registered in the MAC address table of switch.
IGMPv3,GMRP, router port, MLD Snooping, static multicast forwarding and multicast Ring protection
The unique multicast protection under enhanced G.8032 ring can offer immediate self-recovery instead of waiting for IGMP table timeout. It also supports IGMPv3, GMRP, router port, MLD snooping and static multicast forwarding binding by ports for video surveillance application.
Auto-provisioning for firmware/configuration update
The switch supports auto-provisioning for switch to auto-check the latest software image and configuration through TFTP server.
User friendly UI, Auto topology drawing
The user friendly UI, innovative auto topology drawing and topology demo makes IGS-5408DFT much easier to get hands-on. The IGS-5408DFT supports DMI interface that can correspond with DDM SFPs (Digital diagnostic monitor) to display the five parameters in Lantech’s UI, including optical output power, input power,temperature, laser bias current and transceiver supply voltage***. The TXpower/RX power raw data is automatically converted to dB values for installer,making it easier to calculate the fiber distance. The complete CLI enables professional engineer to configure setting by command line.
Editable configuration file; Factory reset button
The configuration file of Lantech IGS-5408DFT can be exported and edited with word processor for the other switches configuration with ease. The factory reset button can restore the setting back to factory default and built-in watchdog design can automatically reboot the switch when CPU is found dead.

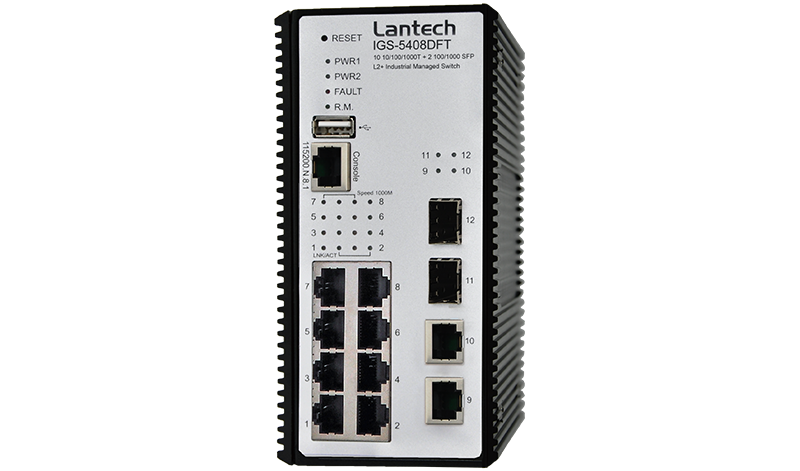

USB port for configuration upload & download (-U model)
The built-in USB port can have configuration upload & download by USB dongle. (-U model)
Event log & message; 2 DI / 2DO
In case of event, the IGS-5408DFT is able to send an email to pre-defined addresses as well as SNMP Traps out immediately. It provides 2DI and 2DO when disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.
Optional environmental monitoring for switch inside information (-M model)
The optional environmental monitoring can detect switch overall temperature, voltage and current where can send the SNMP traps, email when abnormal.
Wide range dual DC powered input with galvanic isolation; Relay contact alarm
The Lantech IGS-5408DFT is designed with wide range dual power input from 36V~72VDC with galvanic isolation. Featured with relay contact alarm function, the IGS-5408DFT is able to connect with alarm system in case of power failure or port disconnection. The IGS-5408DFT also provides ±2000V EFT/SURGE and ±4000 VDC (Contact) / ±8000 VDC (Air) Ethernet ESD protection, which can reduce unstable situation caused by power line and Ethernet.
Industrial hardened design for extended temperature operation
Lantech IGS-5408DFT features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, mining , process control and railway(EN50121-4). It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines.
The -E model can be used in extreme environments with an operating temperature range of -40°C to 75
FEATURES
- 8 10/100/1000T+ 2 10/100/1000T + 2 Dual Speed SFP (Total 12 Ports Switch)
- Back-plane(Switching Fabric): 24Gbps
- 16K MACaddress table
- DDM tosupport SFP diagnostic function***
Automatically convert the raw data into dBvalues for TX power/RX power, making it easier to measure the fiber distance
- 10KB Jumboframe
- User friendlyUI, auto topology drawing, topology demo, complete CLI for professional setting
- EnhancedG.8032 Ring recovery < 20ms in single ring
Support various ring/chain topologies,including train ring, enhanced ring, basic ring, auto ring & multiple VLANring
Enhanced G.8032 ring configuration with ease
Auto ring configuration (auto mode) for singlering
Covers multi-cast and data packets
- Provides EFTprotection ±2000 VDC for power line.
- Supports±4000 VDC (Contact) and ±8000 VDC (Air) Ethernet ESD protection
- Built-in RTC(Real Time Clock) to keep track of time
- Supports IEEE802.1p Class of Service, per port provides 8 priority queues Port base, TagBase and Type of Service Priority
- IEEE 802.1dSTP, IEEE 802.1w RSTP,802.1s MSTP VLAN redundancy with with 16 MSTI
- 4K 802.1QVLAN, Port based VLAN, GVRP, QinQ, QoS
- Supports IEEE802.1ab LLDP, Cisco CDP; LLDP info can be viewed via Web/ Console
- DHCP server /client / DHCP Option 82 relay / DHCP Option 82 server Port based DHCP server;DHCP Option 66; DHCP Snooping; basic IPv6 DHCP server
- Mac basedDHCP server to assign IP address
- BandwidthControl
Ingress packet filter and egress rate limit
Broadcast/multicast packet filter control
- Relay alarmoutput system events
- Miss-wiringavoidance
LED indicator
- Node failureprotection
Ensure the switches in a ring to survive afterpower breakout is back
The status can be shown in NMS when each switchis back
- TFTP/ HTTPfirmware upgrade
- Configurationbackup and restoration
Supports text configuration file for systemquick installation
USB port for upload / download configuration byUSB dongle
- System EventLog and SNMP Trap for alarm support; 32 RMON counters
- Security
SSL/SSH v2/INGRESS/EGRESS ACL L2/L3
TACACS+**
MAC address table: MAC addressentries/Filter/MAC-Port binding
IP Security: IP address security management toprevent unauthorized intruder.
Management access control with priority
Login Security: IEEE802.1X/RADIUS
HTTPS for secure access to the web interface
- Staticmulticast forwarding forward reversed IGMP flow with multicast packets bindingwith ports for IP surveillance application
- IGMP routerport to assign query in ring for reversed multicast video flow
- IGMPv1,v2,v3with Query mode for multimedia; GMRP**
- Factory resetbutton to restore setting to factory default
- Watchdogdesign to auto reboot switch CPU is found dead
- Supports DIDO(2 Digital Input / 2 Digital Output)
- Wide rangedual input power from 36V to 72V with galvanic isolation
MLD Snooping for IPv6 Multicast stream
- Diagnosticincluding Ping / DDM information
- Optionalenvironmental monitoring for system input voltage, current, ambient temperature
- Environmentalmonitoring** for system input voltage, current and ambient temperature (-Mmodel)
- IP30 metalhousing with DIN rail and Wall-mount** design
- Auto Provision to verify switch firmware with the latest or certainversion
*Future release
**Optional
***Optional DDM SFP required
SPECIFICATIONS
Hardware Specifications
Standards
| [cite_start]IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T Ethernet, IEEE802.3z Gigabit fiber, IEEE802.3x Flow Control and Back Pressure, IEEE802.3ad Port trunk with LACP, IEEE802.1d Spanning Tree, IEEE802.1w Rapid Spanning Tree, IEEE802.1s Multiple Spanning Tree, IEEE802.3ad Link Aggregation Control Protocol (LACP), IEEE802.1AB Link Layer Discovery Protocol (LLDP) , IEEE802.1X User Authentication (Radius), IEEE802.1p Class of Service, IEEE802.1Q VLAN Tag, IEEE1588 Precision Time Protocol v2 [cite: 1]
| |Switch Architecture
| [cite_start]Back-plane (Switching Fabric): 24Gbps [cite: 1]
| |Transfer Rate
| [cite_start]14,880pps for Ethernet port, 148,800pps for Fast Ethernet port, 1,488,000pps for Gigabit Ethernet / Gigabit Fiber port [cite: 1]
| |Mac Address
| [cite_start]16K MAC address table [cite: 1]
| |Jumbo frame
| [cite_start]10KB [cite: 1]
| |Connectors
| [cite_start]10/100/1000T:10 x ports RJ-45 with Auto MDI/MDI-X function, Mini-GBIC: 2 x 100/1000 SFP socket with DDM, RS-232 connector: RJ-45 type, USB x 1 (-U model), Power & Relay connector: 1 x 6-pole terminal block, DIDO : 1 x 6-pole terminal block [cite: 1]
| |Network Cable
|10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable, EIA/TIA-568 100-ohm (100m); 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable, EIA/TIA-568 100-ohm (100m); 1000Base-TX: 2-pair UTP/STP Cat. [cite_start]5/ 5E/ 6 cable, EIA/TIA-568 100-ohm (100m) [cite: 1]
| |Optical Cable
|1.25Gbps: Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm); Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm). 125Mbps: Multi mode: 0 to 2 km/ 5 km, 1310 nm (62.5/125 μm); Single mode: 0 to 30 km, 1310 nm (62.5/125 μm). WDM 1.25Gbps: Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm). WDM 125Mbps: Single mode: 0 to 20 km/ 40 km/ 60 km/ 80 km, 1310 nm (9/125 μm); [cite_start]0 to 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm) [cite: 1]
| |LED
|Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red), RM(Green); Ethernet port: Link/Activity (Green), Speed (Green); [cite_start]Mini-GBIC: Link/Activity (Green) [cite: 1]
| |DI/DO
|2 Digital Input (DI): Level 0: -30~2V / Level 1: 10~30V, Max. input current: 8mA; [cite_start]2 Digital Output (DO): Open collector to 40 VDC, 200mA [cite: 1]
| |Operating Humidity
| [cite_start]5% ~ 95% (Non-condensing) [cite: 1]
| |Operating Temperature
| [cite_start]-20°C~60°C / -4°F~140°F (Standard model), -40°C~75°C / -40°F~167°F(-E model) [cite: 1]
| |Storage Temperature
| [cite_start]-40°C~85°C / -40°F~185°F [cite: 1]
| |Power Supply
| [cite_start]36 to 72 VDC with galvanic isolation [cite: 1]
| |Power Consumption
| [cite_start]10W [cite: 1]
| |Case Dimension

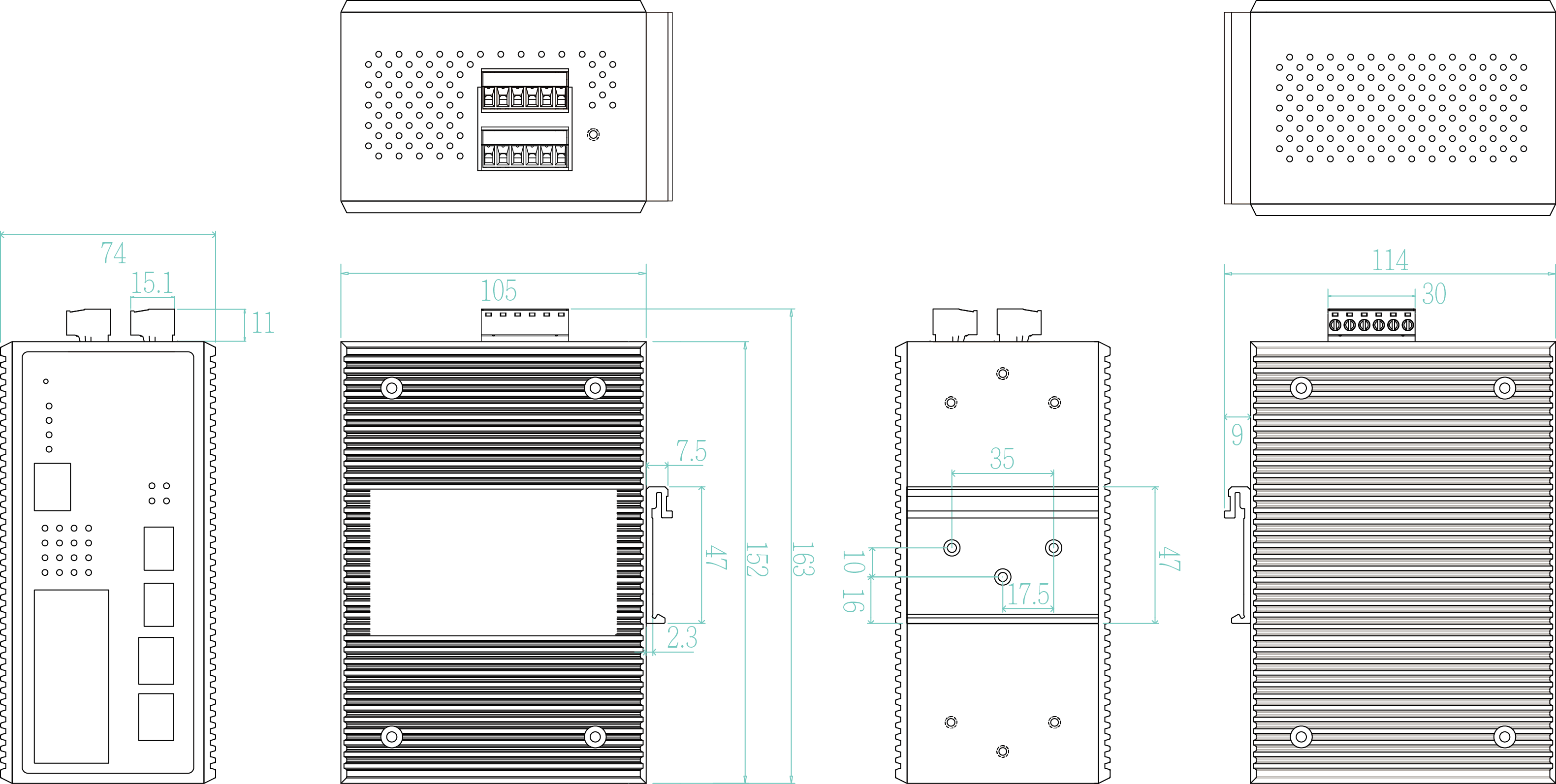

|Metal case. [cite_start]IP-30, 74 (W) x 105 (D) x 152 (H) mm [cite: 1]
| |Weight
| [cite_start]900 g [cite: 1]
| |Installation
| [cite_start]DIN Rail and Wall Mount** Design [cite: 1]
| |EMI & EMS
| [cite_start]FCC Class A, CE EN 55032, CE EN 55024, CE EN 61000-4-2, CE EN 61000-4-3, CE EN 61000-4-4, CE EN 61000-4-5, CE EN 61000-4-6, CE EN 61000-4-8, CE EN 61000-4-11, CE EN 61000-6-2, BS EN55032, BS EN55024, BS EN61000-4-2, BS EN61000-4-3, BS EN61000-4-4, BS EN61000-4-5, BS EN61000-4-6, BS EN61000-4-8 [cite: 1]
| |Stability Testing
| [cite_start]IEC 60068-2-32 (Free fall), IEC 60068-2-27 (Shock), IEC 60068-2-64 (Vibration) [cite: 1]
| |Railway compliance
| [cite_start]EN 50121-4, EN 50121-5 [cite: 1]
| |Safety
| [cite_start]EN 60950-1, IEC/BS EN IEC 62368-1 2020/A11:2020 [cite: 1]
| |MTBF
|830,589 hrs. (standards: IEC 62380) [cite_start][cite: 1]
| |Warranty
| [cite_start]5 years [cite: 1]
|Software Specifications
Management
| [cite_start]SNMP v1 v2c, v3/ Web/Telnet/CLI [cite: 1]
| |SNMP MIB
| [cite_start]MIB, MIBII, SNMP MIB, Bridge MIB, IF MIB, RMON MIB, Private MIB [cite: 1]
| |ITU G.8032
|Support ITU G.8032 v2/2012 for Ring protection in less than 20ms for self-heal recovery (single ring). Support various ring/chain topologies. Includes train ring, auto ring, basic single ring, enhanced ring, multiple-VLAN ring. Enhanced G.8032 ring configuration with ease. [cite_start]Protect multicast & unicast data. [cite: 1]
| |User friendly UI
| [cite_start]Auto topology drawing, Topology demo, Auto configuration for G.8032 (auto mode) for single ring, DDM threshold monitoring with dB values***, Complete CLI for professional setting [cite: 1]
| |Port Trunk with LACP
|LACP Port Trunk: 8 Trunk groups [cite: 1]
| |LLDP
|Supports LLDP to allow switch to advise its identification and capability on the LAN [cite: 1]
| |CDP
|Cisco Discovery Protocol for topology mapping [cite: 1]
| |Environmental Monitoring**
| [cite_start]System status for input voltage, current and ambient temperature to be shown in GUI and sent alerting if any abnormal status (-M models) [cite: 1]
| |VLAN
|Port Based VLAN IEEE 802.1Q Tag VLAN (256 entries)/ VLAN ID (Up to 4K, VLAN ID can be assigned from 1 to 4096.) GVRP, QinQ, Protocol based VLAN; [cite_start]IPv4 Subnet based VLAN [cite: 1]
| |RSTP/MSTP
| [cite_start]Supports IEEE802.1d Spanning Tree and IEEE802.1w Rapid Spanning Tree, IEEE802.1s Multiple Spanning Tree with 16 MSTI [cite: 1]
| |Quality of Service
| [cite_start]The quality of service determined by port / CoS / ToS / VLAN / 61375-3-4 [cite: 1]
| |Class of Service
| [cite_start]Support IEEE802.1p class of service, per port provides 8 priority queues [cite: 1]
| |MLD Snooping
| [cite_start]Support IPv6 Multicast stream [cite: 1]
| |Login Security
| [cite_start]Supports IEEE802.1X Authentication/RADIUS [cite: 1]
| |Port Mirror
| [cite_start]Support 3 mirroring types: “RX, TX and Both packet” [cite: 1]
| |Network Security
|Support 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder. 802.1X access control for port based and MAC based authentication/MAC-Port binding. Ingress/Egress ACL L2/L3. SSL/ SSH v2 for Management. HTTPS for secure access to the web interface. [cite_start]TACACS+** for Authentication. [cite: 1]
| |IGMP
|Support IGMP snooping v1, v2, v3; 1024 multicast groups; IGMP router port; IGMP query; [cite_start]GMRP** [cite: 1]
| |Static MAC-Port bridge
| [cite_start]Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application [cite: 1]
| |Bandwidth Control
|Support ingress packet filter and egress packet limit. The egress rate control supports all of packet type. Ingress filter packet type combination rules are Broadcast/Multicast/Flooded Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all types of packet. [cite_start]The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter and the egress packet limit. [cite: 1]
| |RTC
| [cite_start]Built-in Real Time Clock to keep track of time always [cite: 1]
| |Flow Control
| [cite_start]Supports Flow Control for Full-duplex and Back Pressure for Half-duplex [cite: 1]
| |System Log
| [cite_start]Supports System log record and remote system log server [cite: 1]
| |Relay Alarm
|Provides one relay output for port breakdown, power fail and alarm. [cite_start]Alarm Relay current carry ability: 1A @ DC24V [cite: 1]
| |Protection
| [cite_start]Miss-wiring avoidance, Node failure protection, Loop protection [cite: 1]
| |SNMP Trap
| [cite_start]Up to 10 trap stations; trap types including: Device cold start, Authorization failure, Port link up/link down, DI/DO open/close, Typology change (ITU ring), Power failure, Environmental abnormal** [cite: 1]
| |Diagnostic
| [cite_start]Support Ping and DDM information [cite: 1]
| |DHCP
|Provide DHCP Client/ DHCP Server/DHCP Option 82/Port based DHCP; DHCP Option 66; [cite_start]DHCP Snooping; basic IPv6 DHCP server [cite: 1]
| |Mac based DHCP Server
| [cite_start]Assign IP address by Mac [cite: 1]
| |DNS
| [cite_start]Provide DNS client feature [cite: 1]
| |SNTP
| [cite_start]Supports SNTP to synchronize system clock in Internet [cite: 1]
| |Firmware Update
|Supports TFTP firmware update, TFTP backup and restore; [cite_start]HTTP firmware upgrade [cite: 1]
| |Configuration backup & restore
|Supports text configuration file for system quick installation. [cite_start]USB port to upload/download firmware by USB dongle (-U model) [cite: 1]
| |Auto Provision
| [cite_start]To verify switch firmware with the latest or certain version [cite: 1]
|*Future Release
**Optional
***Optional DDM SFP required
ORDERING INFORMATION
OPTIONAL ACCESSORIES - DIN Rail Power
OPTIONAL ACCESSORIES - Mini GBIC (SFP)
All SFP# ended with Dare with DDM function
