OVERVIEW

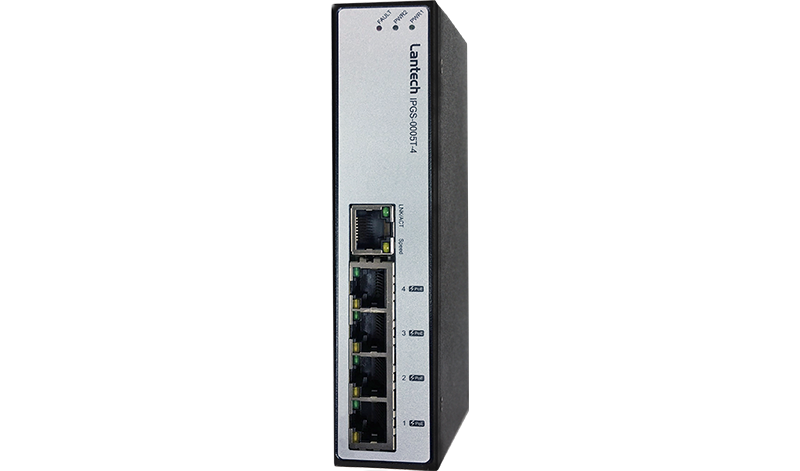

The Lantech IPGS-0005T-4 is a 4 10/100/1000T + 1 1000T with 4 IEEE 802.3at/af High Power PoE Industrial Switch.
The IPGS-0005T-4 is a cost-effective solution, which meets the high reliability requirements demanded by industrial applications. Besides, the equipment meets IEEE 802.3at standard, the switch can provides 30 Watts output per PoE port for Powered Devices. The switch supports wide operating temperature, range from -40°C to 75°C.
The Lantech IPGS-0005T-4 is designed to meet the demands of Industrial environments, comes packaged in a robust IP30 housing and has been tested extensively to meet Industrial EMI and EMC standards.
With voltage boost design, the IPGS-0005T-4-12V can work from 12/24V input power source and boost the voltage to 54VDC to feed the POE power over Ethernet cable for any vehicles that usually has 12/24V power source. It can provide PoE budget of 50W at 12V input or 90W at 24V/48V input. The slim compact design is able to fit in variety of cabinets and space.
SPECIFICATIONS
Hardware Specifications
Standards
|IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T Ethernet
IEEE802.3x Flow Control and Back Pressure
IEEE802.3at/af Power over Ethernet
Standards
| [cite_start]IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T Ethernet, IEEE802.3x Flow Control and Back Pressure, IEEE802.3at/af Power over Ethernet [cite: 1]
| |Switch Architecture
| [cite_start]Back-plane (Switching Fabric): 10Gbps [cite: 1]
| |Transfer Rate
| [cite_start]14,880pps for Ethernet port, 148,800pps for Fast Ethernet port, 1,488,000pps for Gigabit Ethernet / Gigabit Fiber port [cite: 1]
| |Packet Buffer
| [cite_start]1Mbits [cite: 1]
| |Mac Address
| [cite_start]8K MAC address table [cite: 1]
| |Jumbo frame
| [cite_start]10KB on all ports [cite: 1]
| |Connector
| [cite_start]10/100/1000T: 4 x RJ-45, 1000T: 1 x RJ-45 [cite: 1]
| |Protocol
| [cite_start]CSMA/CD [cite: 1]
| |PoE pin assignment
|RJ-45 port # 1~# 4 support IEEE 802.3at End-point, Alternative A mode. Per port provides 30W at 54V ability. Positive (VCC+): RJ-45 pin 1,2. [cite_start]Negative (VCC-): RJ-45 pin 3,6. [cite: 1]
| |LED
|Per unit: Power 1 (Green), Power 2 (Green), Fault (Red); 1 port 10/100/1000T: Link/Activity (Green), Speed (Yellow); [cite_start]4 port 10/100/1000T (PoE): Link/Activity (Green), PoE (Yellow) [cite: 1]
| |Power Supply
|DC 9.5V~56V; Redundant power (12V model), DC 44V~56V; [cite_start]Redundant power (48V model) [cite: 1]
| |Power Consumption
|90W (PoE Full load 48V / 24V input); 6W (switch); 50W (PoE full load 12V input); (50-57VDC input is recommended for 802.3at 30W applications) [cite_start][cite: 1]
| |Operating Humidity
| [cite_start]5% to 95% (Non-condensing) [cite: 1]
| |Operating Temperature
| [cite_start]-40°C ~ 75°C [cite: 1]
| |Storage Temperature
| [cite_start]-40°C ~ 85°C [cite: 1]

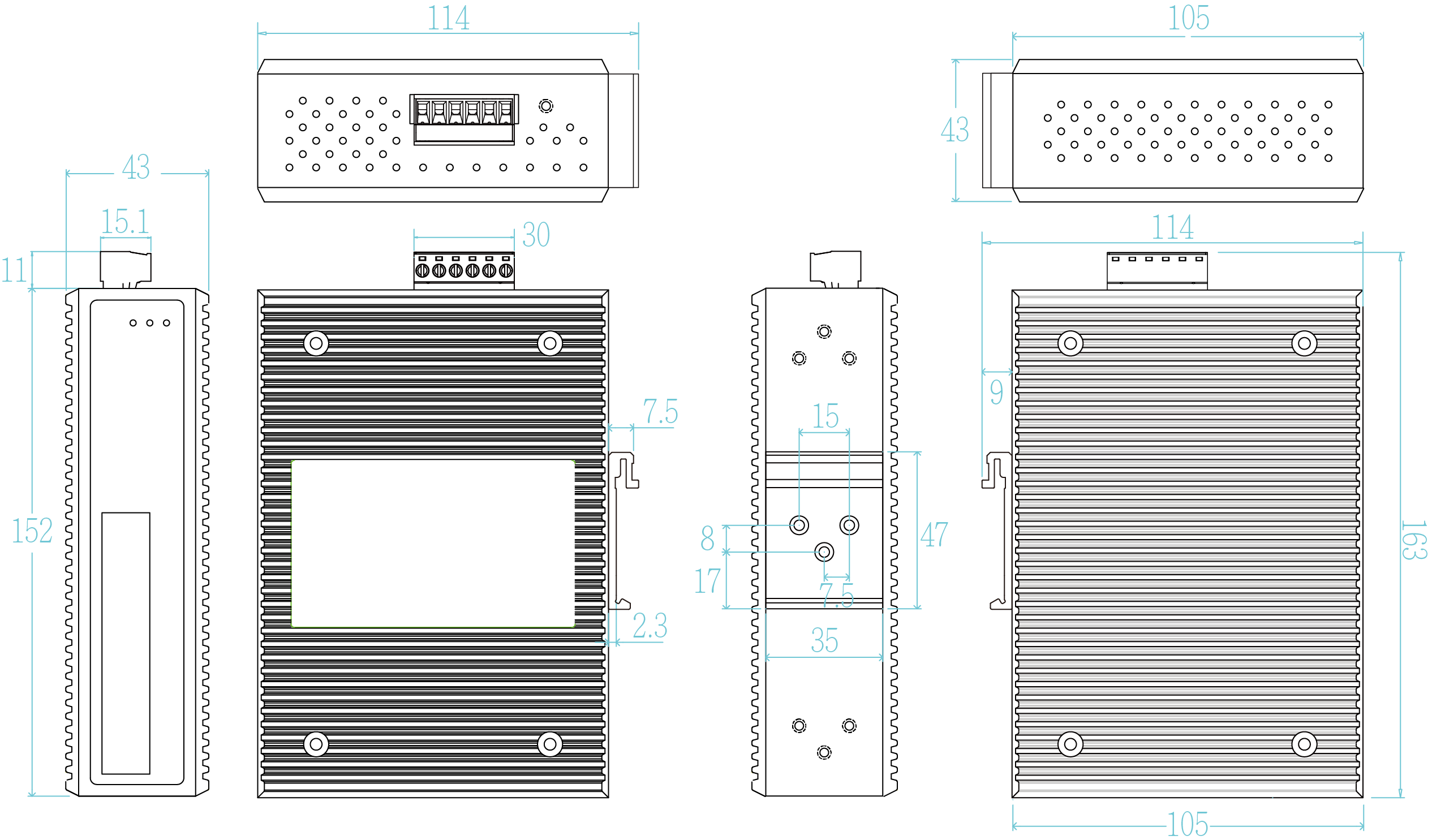

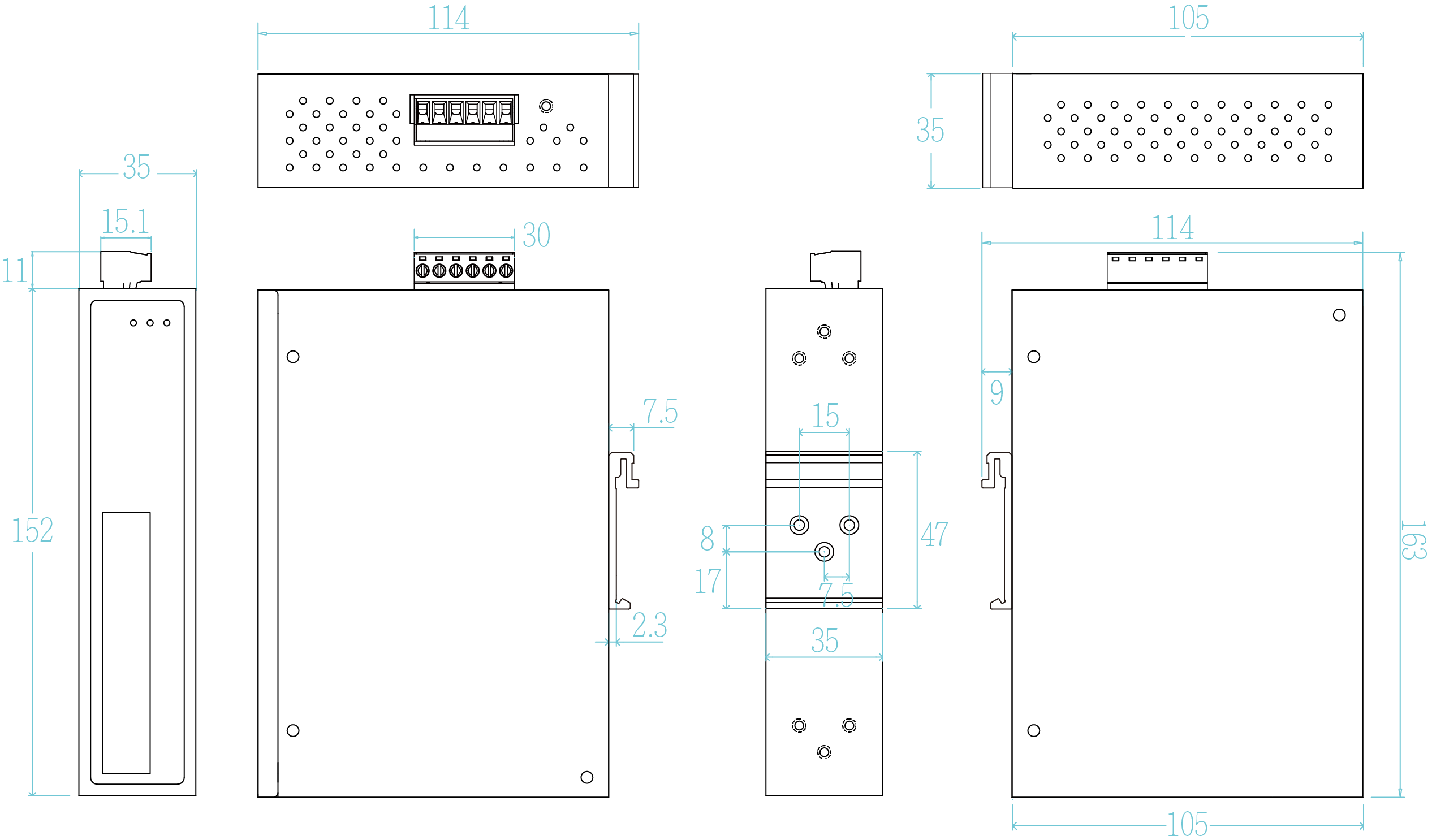

| |Case Dimension
| [cite_start]IP30, 43mm (W) x 152mm (H) x 105mm (D) (12V model), 35mm (W) x 152mm (H) x 105mm (D) (48V model) [cite: 1]
| |Installation
| [cite_start]DIN rail or Wall mounting** design [cite: 1]
| |EMC/EMI
| [cite_start]FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN55022 Class A, CE EN55024 [cite: 1]
| |Safety
| [cite_start]EN 60950-1 [cite: 1]
| |MTBF
|12V model: 1,291,990 hrs; [cite_start]48V model: 1,414,427 hrs [cite: 1]
| |Warranty
| [cite_start]5 years [cite: 1]
|**Optional
