IPGS-0204DSFP
4 10/100/1000T + 2 Dual Speed SFP Industrial Switch w/4 PoE 802.3at/af Injectors
IPGS-0204DSFP
4 10/100/1000T + 2 Dual Speed SFP Industrial Switch w/4 PoE 802.3at/af Injectors
IPGS-0204DSFP
4 10/100/1000T + 2 Dual Speed SFP Industrial Switch w/4 PoE 802.3at/af Injectors
OVERVIEW

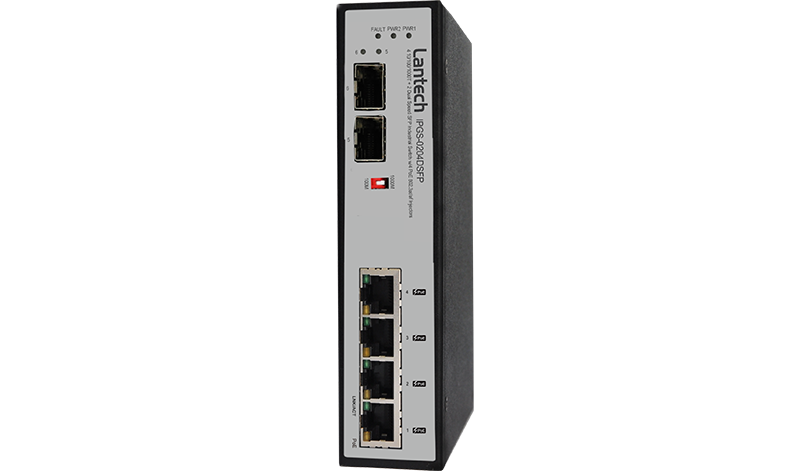

The Lantech IPGS-0204DSFP is a 4 10/100/1000T + 2 Dual Speed SFP with 4 IEEE 802.3at/af High Power PoE Industrial Switch.
The IPGS-0204DSFP is a cost-effective solution, which meets the high reliability requirements demanded by industrial applications. Besides, the equipment meets IEEE 802.3at standard, the switch can provides 30 Watts output per PoE port for Powered Devices. The switch supports wide operating temperature, range from -40°C to 75°C.
The Lantech IPGS-0204DSFP is designed to meet the demands of Industrial environments, comes packaged in a robust IP30 housing and has been tested extensively to meet Industrial EMI and EMC standards.
With voltage boost design, the IPGS-0204DSFP-12V can work from 12/24V input power source and boost the voltage to 48VDC to feed the POE power over Ethernet cable for any vehicles that usually has 12/24V power source. The slim compact design is able to fit in variety of cabinets and space.
SPECIFICATIONS
Hardware Specifications
Standards
| [cite_start]IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T Ethernet, IEEE802.3z Gigabit fiber, IEEE802.3x Flow Control and Back Pressure, IEEE802.3at/af Power over Ethernet
| |Switch Architecture
| [cite_start]Back-plane (Switching Fabric): 12Gbps
| |Transfer Rate
| [cite_start]14,880pps for Ethernet port, 148,800pps for Fast Ethernet port, 1,488,000pps for Gigabit Ethernet / Gigabit Fiber port
| |Packet Buffer
| [cite_start]1Mbits
| |Mac Address
| [cite_start]8K MAC address table
| |Jumbo frame
| [cite_start]10KB
| |Connector
|10/100/1000T: 4 x RJ-45 with Auto MDI/MDIX; [cite_start]Mini-GBIC: 2 x 100/1000 Dual Speed SFP Sockets
| |DIP Switch
| [cite_start]SFP Speed 1000M or 100M
| |Protocol
| [cite_start]CSMA/CD
| |PoE pin assignment
|RJ-45 port # 1~# 4 support IEEE 802.3at End-point, Alternative A mode. Per port provides 30W at 54V ability; Positive (VCC+): RJ-45 pin 1,2; [cite_start]Negative (VCC-): RJ-45 pin 3,6
| |LED
|Per unit: Power 1 (Green), Power 2 (Green), Fault (Red); 4 port 10/100/1000T: Link/Activity (Green), Full duplex/Collision (Yellow), PoE (Yellow); [cite_start]SFP port: LNK/ACT(Green)
| |Power Supply
|DC 9.5V~56V (12V model); [cite_start]Redundant power, DC45 to 56V; redundant power (48V model)
| |PoE budget
|90W@48/24VDC (50-57VDC input is recommended for 802.3at 30W applications); 50W@12VDC; [cite_start]Higher PoE budget can be applied upon request**
| |Power Consumption
| [cite_start]6W (switch)
| |Operating Humidity
| [cite_start]5% to 95% (Non-condensing)
| |Operating Temperature
| [cite_start]-40°C ~ 75°C
| |Storage Temperature
| [cite_start]-40°C ~ 85°C

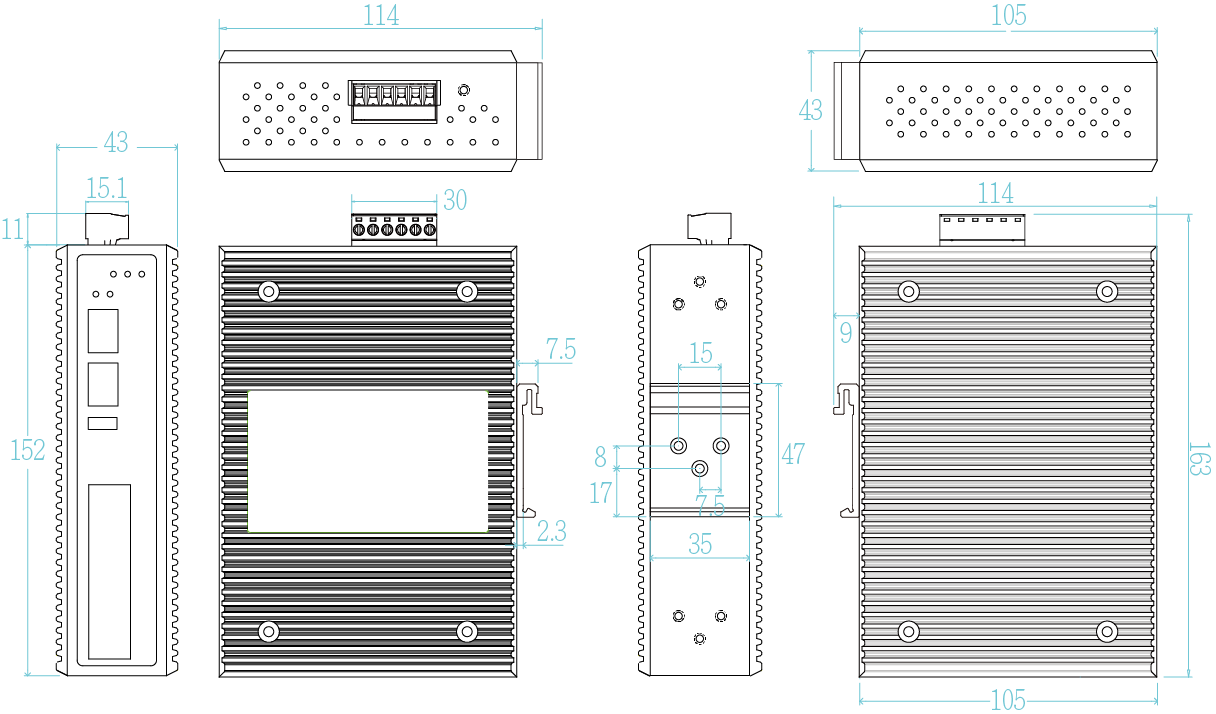

| |Case Dimension
|Metal case IP30; 43mm (W) x 152mm (H) x 105mm (D) (12V model); [cite_start]35mm (W) x 152mm (H) x 105mm (D) (48V model)
| |Weight
| [cite_start]文件中此段落未標註具體重量 (註：同系列其他型號約為 900g，但依此份內容為主)
| |Installation
| [cite_start]DIN rail or Wall mounting** design
| |EMC/EMI
| [cite_start]FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN55032 Class A, CE EN55024
| |Safety
| [cite_start]EN 60950-1
| |MTBF
|12V model: 1,291,990 hrs; [cite_start]48V model: 1,414,427 hrs
| |Warranty
| [cite_start]5 years
|**Optional
ORDERING INFORMATION
OPTIONAL ACCESSORIES - DIN Rail Power
OPTIONAL ACCESSORIES - Mini GBIC (SFP)
