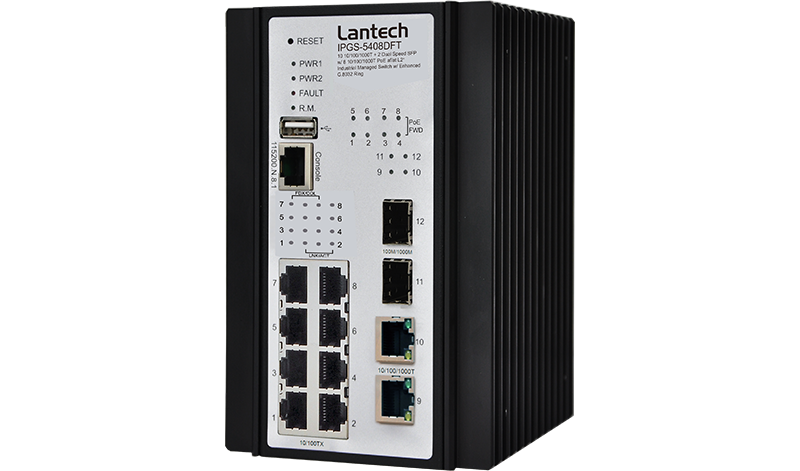

IPGS-5408DFT
2 10/100/1000T + 2 100/1000 SFP + 8 10/100/1000T w/8 PoE at/af L2+ Industrial Managed Ethernet Switch w/ Enhanced G.8032 Ring
IPGS-5408DFT
2 10/100/1000T + 2 100/1000 SFP + 8 10/100/1000T w/8 PoE at/af L2+ Industrial Managed Ethernet Switch w/ Enhanced G.8032 Ring
IPGS-5408DFT
2 10/100/1000T + 2 100/1000 SFP + 8 10/100/1000T w/8 PoE at/af L2+ Industrial Managed Ethernet Switch w/ Enhanced G.8032 Ring
OVERVIEW
Lantech IPGS-5408DFT is a high performance L2+ (All Gigabit) industrial Ethernet switch with 8 10/100/1000T PoE at/af + 2 10/100/1000T + 2 Dual Speed SFP which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also supports train ring, enhanced mode, multiple VLAN mode with easy configuration. The comprehensive QoS, QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, TACACS+**, SSH v2/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ are supported and also required in large network. It also supports Cisco Discovery Protocol (CDP) for Ciscoworks to detect the switch info and show on L2 map topology.
Up to 8 PoE at/af ports w/advanced PoE management
Compliant with 802.3af/at standard, the Lantech IPGS-5408DFT is able to feed each PoE port up to 30 Watt, total PoE budget 240W. Lantech IPGS-5408DFT supports advanced PoE management including PoE detection and scheduling. PoE detection can detect if the connected PD hangs then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. Each PoE ports can be Enabled/disabled, get the voltage, current, Watt, and temperature info displayed on WebUI.
Miss-wiring avoidance, Loop protection, Node failure protection
The IPGS-5408DFT also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IPGS-5408DFT is able to alert with the LED indicator and disable ring automatically. Node failure protection ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.
Enhanced G.8032 ring, 16 MSTI MSTP; MRP ring
Lantech IPGS-5408DFT features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering Multicast packets. It also supports various ring topologies that covers double ring, multi-chain (under enhanced ring), train ring, basic ring, multiple-VLAN ring and auto-ring by easy setup than others. The innovative auto-Ring configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows RSTP over VLAN for redundant links with 16 MSTI.
MRP (Media Redundancy Protocol) can be supported for industrial automation networks.
DHCP option 82 & Port based, Mac based DHCP, Option66, DHCP Snooping, IPv6 DHCP server
DHCP server can assign dedicated IP address by MAC or by port (Port based for single switch) , it also can assign IP address by port for multiple switches with single DHCP option82 server. DHCP Snooping is supported. For the ending device which need to download file from TFTP server, DHCP Option66 server can offer IP address of TFTP server to DHCP client. Basic IPv6 DHCP service can be supported.
QoS by VLAN for legacy devices
QoS by VLAN can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.
QinQ, QoS and GVRP supported
It supports the QinQ, QoS, GVRP for large VLAN segmentation.
802.1X security by MAC address
MAC-based port authentication is an alternative approach to 802.1x for authenticating hosts connected to a port. By authenticating based on the host's source MAC address, the host is not required to run a user for the 802.1x protocol. The RADIUS server that performs the authentication will inform the switch if this MAC can be registered in the MAC address table of switch.
IGMPv3,GMRP, router port, MLD Snooping, static multicast forwarding and multicast Ring protection
The unique multicast protection under enhanced G.8032 ring can offer immediate self-recovery instead of waiting for IGMP table timeout. It also supports IGMPv3, GMRP, router port, MLD snooping and static multicast forwarding binding by ports for video surveillance application.
Auto-provisioning for firmware/configuration update
The switch supports auto-provisioning for switch to auto-check the latest software image and configuration through TFTP server.
User friendly UI, Auto topology drawing
The user friendly UI, innovative auto topology drawing and topology demo makes IPGS-5408DFT much easier to get hands-on. The IPGS-5408DFT supports DMI interface that can correspond with DDM SFPs (Digital diagnostic monitor) to display the five parameters in Lantech’s UI, including optical output power, input power, temperature, laser bias current and transceiver supply voltage***. The TX power/RX power raw data is automatically converted to dB values for installer, making it easier to calculate the fiber distance. The complete CLI enables professional engineer to configure setting by command line.
Editable configuration file; Factory reset button
The configuration file of Lantech IPGS-5408DFT can be exported and edited with word processor for the other switches configuration with ease. The factory reset button can restore the setting back to factory default and built-in watchdog design can automatically reboot the switch when CPU is found dead.
USB port for configuration upload & download
The built-in USB port can have configuration upload & download by USB dongle.
Event log & message; 2 DI / 2DO
In case of event, the IPGS-5408DFT is able to send an email to pre-defined addresses as well as SNMP Traps out immediately. It provides 2DI and 2DO when disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.
Optional environmental monitoring for switch inside information (-M model)
The optional environmental monitoring can detect switch overall temperature, voltage, total PoE load and current where can send the SNMP traps, email when abnormal.
Wide range dual DC powered input; Relay contact alarm, High ESD protection
The Lantech IPGS-5408DFT is designed with wide range dual power input from ±44V~56VDC. Featured with relay contact alarm function, the IPGS-5408DFT is able to connect with alarm system in case of power failure or port disconnection. The IPGS-5408DFT also provides ±2000V EFT/SURGE and ±4000 VDC (Contact) / ±8000 VDC (Air) Ethernet ESD protection, which can reduce unstable situation caused by power line and Ethernet.
Industrial hardened design for extended temperature operation
Lantech IPGS-5408DFT features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, mining , process control and railway(EN50121-4). It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines.
The -E model can be used in extreme environments with an operating temperature range of -40°C to 75°C
*Future Release
**Optional
***Optional DDM SFP required
SPECIFICATIONS
Hardware Specifications
Standards
| [cite_start]IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T Ethernet, IEEE802.3z Gigabit fiber, IEEE802.3x Flow Control and Back Pressure, IEEE802.3ad Port trunk with LACP, IEEE802.1d Spanning Tree, IEEE802.1w Rapid Spanning Tree, IEEE802.1s Multiple Spanning Tree, IEEE802.3ad Link Aggregation Control Protocol (LACP), IEEE802.1AB Link Layer Discovery Protocol (LLDP) , IEEE802.1X User Authentication (Radius), IEEE802.1p Class of Service, IEEE802.1Q VLAN Tag, IEEE802.3at/af Power over Ethernet [cite: 1]
| |Switch Architecture
| [cite_start]Back-plane (Switching Fabric): 24Gbps [cite: 1]
| |Packet Buffer
| [cite_start]2Mbit [cite: 1]
| |Transfer Rate
| [cite_start]14,880pps for Ethernet port, 148,800pps for Fast Ethernet port, 1,488,000pps for Gigabit Ethernet / Gigabit Fiber port [cite: 1]
| |Mac Address
| [cite_start]16K MAC address table [cite: 1]
| |Jumbo frame
| [cite_start]10KB [cite: 1]
| |Connectors
| [cite_start]10/100/1000T:10 x ports RJ-45 PoE with Auto MDI/MDI-X function, Mini-GBIC: 2 x 100/1000 SFP socket with DDM, RS-232 connector: RJ-45 type, USB x 1, Power & Relay connector: 1 x 6-pole terminal block, DIDO: 1 x 6-pole terminal block [cite: 1]
| |PoE pin assignment
|RJ-45 port # 1~ # 8 support IEEE 802.3at/af End-point. [cite_start]Per port provides up to 30W, Positive (VCC+): RJ-45 pin 1,2, Negative (VCC-): RJ-45 pin 3,6 [cite: 1]
| |Network Cable
|10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable, EIA/TIA-568 100-ohm (100m); 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable, EIA/TIA-568 100-ohm (100m); 1000Base-TX: 2-pair UTP/STP Cat. [cite_start]5/ 5E/ 6 cable, EIA/TIA-568 100-ohm (100m) [cite: 1]
| |Optical Cable
|1.25Gbps: Multi-mode (850nm/1310nm), Single mode (1310nm/1550nm); 125Mbps: Multi-mode (1310nm), Single mode (1310nm); WDM 1.25Gbps: Single mode (1310nm/1490nm/1550nm); [cite_start]WDM 125Mbps: Single mode (1310nm/1550nm) [cite: 1]
| |LED
|Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red), RM(Green); Ethernet port: Link/Activity (Green), Speed (Green); [cite_start]Mini-GBIC: Link/Activity (Green) [cite: 1]
| |DI/DO
|2 Digital Input (DI): Level 0: -30~2V / Level 1: 10~30V (Max. input current: 8mA); [cite_start]2 Digital Output (DO): Open collector to 40 VDC, 200mA [cite: 1]
| |Operating Humidity
| [cite_start]5% ~ 95% (Non-condensing) [cite: 1]
| |Operating Temperature
| [cite_start]-20°C~60°C / -4°F~140°F (Standard model), -40°C~75°C / -40°F~167°F (-E model) [cite: 1]
| |Storage Temperature
| [cite_start]-40°C~85°C / -40°F~185°F [cite: 1]
| |Power Supply
| [cite_start]±44 to 56 VDC [cite: 1]
| |Power Consumption
| [cite_start]10W [cite: 1]
| |PoE Budget
|Max. [cite_start]240W (50-56VDC input is recommended for 802.3at 30W applications), Higher PoE budget can be applied upon request [cite: 1]

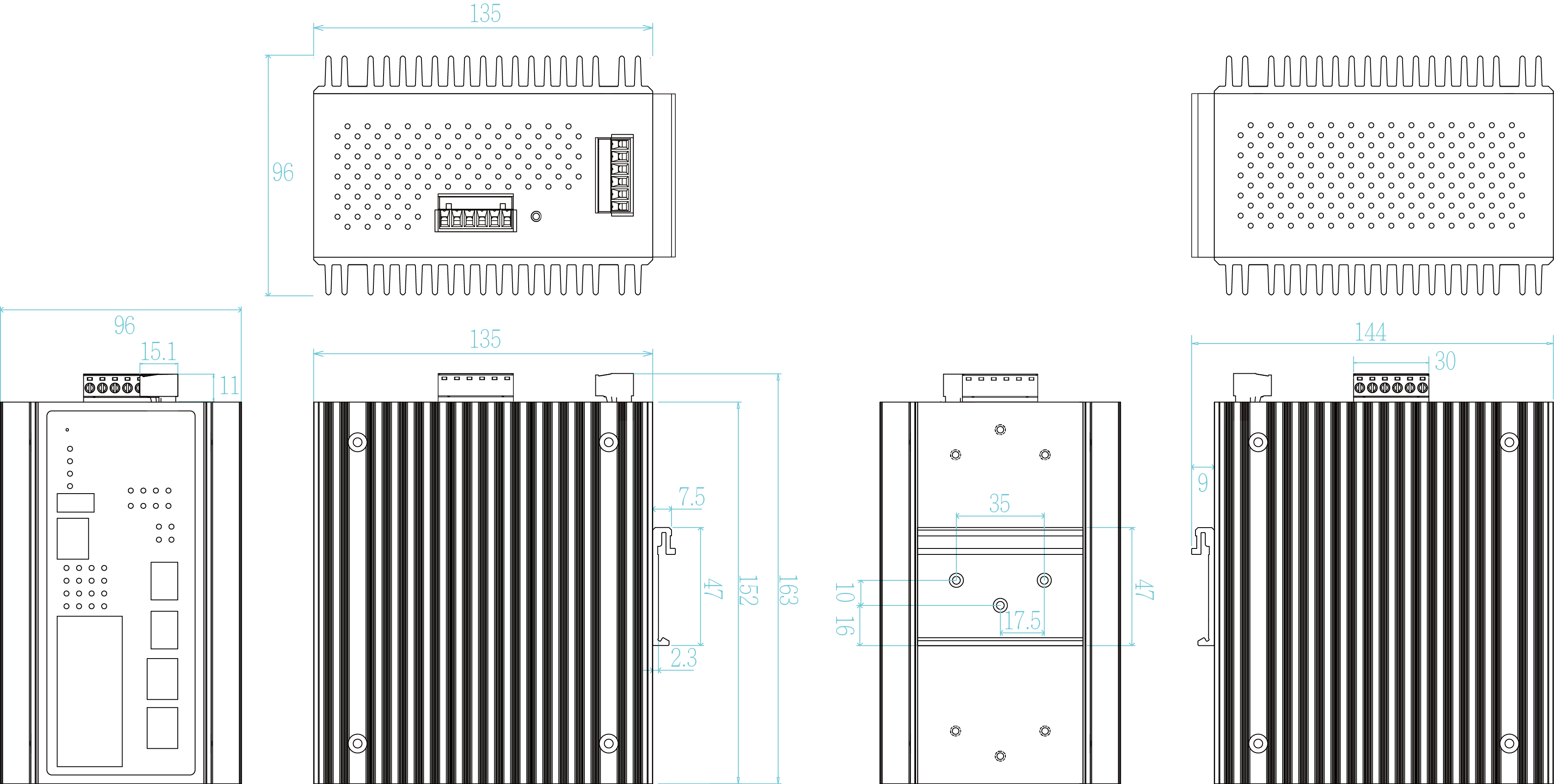

| |Case Dimension
| [cite_start]Metal case IP-30, 96 (W) x 135 (D) x 152 (H) mm [cite: 1]
| |Weight
| [cite_start]900 g [cite: 1]
| |Installation
| [cite_start]DIN Rail and Wall Mount Design [cite: 1]
| |EMI & EMS
| [cite_start]FCC Class A, CE EN 55032, CE EN 55024, CE EN 61000-4-2/3/4/5/6/8/11, CE EN 61000-6-2, BS EN55032, BS EN55024, BS EN61000-4-2/3/4/5/6/8 [cite: 1]
| |Stability Testing
| [cite_start]IEC 60068-2-32 (Free fall), IEC 60068-2-27 (Shock), IEC 60068-2-64 (Vibration) [cite: 1]
| |Railway compliance
| [cite_start]EN 50121-4, EN 50121-5 [cite: 1]
| |Safety
| [cite_start]IEC/BS EN IEC 62368-1 2020/A11:2020 [cite: 1]
| |MTBF
|830,589 hrs. (standards IEC 62380) [cite_start][cite: 1]
| |Warranty
| [cite_start]5 years [cite: 1]
|Software Specifications
Management
| [cite_start]SNMP v1 v2c, v3/ Web/Telnet/CLI Management [cite: 1]
| |SNMP MIB
| [cite_start]MIB, MIBII, SNMP MIB, Bridge MIB, IF MIB, RMON MIB, Private MIB [cite: 1]
| |ITU G.8032
|Support ITU G.8032 v2/2012 for Ring protection in less than 20ms for self-heal recovery (single ring), Support various ring/chain topologies, Includes train ring, auto ring, basic single ring, enhanced ring, multiple-VLAN ring, Enhanced G.8032 ring configuration with ease. [cite_start]Protect multicast & unicast data [cite: 1]
| |User friendly UI
| [cite_start]Auto topology drawing, Topology demo, Auto configuration for G.8032(auto mode) for single ring, DDM threshold monitoring with dB values***, Complete CLI for professional setting [cite: 1]
| |Port Trunk with LACP
|LACP Port Trunk: 8 Trunk groups [cite: 1]
| |LLDP
|Supports LLDP to allow switch to advise its identification and capability on the LAN [cite: 1]
| |CDP
|Cisco Discovery Protocol for topology mapping [cite: 1]
| |Environmental Monitoring**
| [cite_start]System status for input voltage, current, total PoE load and ambient temperature to be shown in GUI and sent alerting if any abnormal status (-M models) [cite: 1]
| |VLAN
|Port Based VLAN IEEE 802.1Q Tag VLAN (256 entries)/ VLAN ID (Up to 4K, VLAN ID can be assigned from 1 to 4096.) GVRP, QinQ, Protocol based VLAN; [cite_start]IPv4 Subnet based VLAN [cite: 1]
| |MLD Snooping
| [cite_start]Support IPv6 Multicast stream [cite: 1]
| |RSTP/MSTP
| [cite_start]Supports IEEE802.1d Spanning Tree and IEEE802.1w Rapid Spanning Tree, IEEE802.1s Multiple Spanning Tree with 16 MSTI [cite: 1]
| |Quality of Service
| [cite_start]The quality of service determined by port / CoS / ToS / VLAN / 61375-3-4 [cite: 1]
| |Class of Service
| [cite_start]Support IEEE802.1p class of service, per port provides 8 priority queues [cite: 1]
| |Login Security
| [cite_start]Supports IEEE802.1X Authentication/RADIUS [cite: 1]
| |Port Mirror
| [cite_start]Support 3 mirroring types: “RX, TX and Both packet” [cite: 1]
| |Network Security
| [cite_start]Support 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder., 802.1X access control for port based and MAC based authentication/MAC-Port binding, Ingress/Egress ACL L2/L3, SSL/ SSH v2 for Management, HTTPS for secure access to the web interface, TACACS+** for Authentication [cite: 1]
| |IGMP
|Support IGMP snooping v1,v2,v3; 1024 multicast groups; IGMP router port ; IGMP query; [cite_start]GMRP** [cite: 1]
| |Static MAC-Port bridge
| [cite_start]Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application [cite: 1]
| |Bandwidth Control
|Support ingress packet filter and egress packet limit. The egress rate control supports all of packet type. Ingress filter packet type combination rules are Broadcast/Multicast/Flooded Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all types of packet. [cite_start]The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter and the egress packet limit. [cite: 1]
| |Flow Control
| [cite_start]Supports Flow Control for Full-duplex and Back Pressure for Half-duplex [cite: 1]
| |System Log
| [cite_start]Supports System log record and remote system log server [cite: 1]
| |Relay Alarm
|Provides one relay output for port breakdown, power fail and alarm. [cite_start]Alarm Relay current carry ability: 1A @ DC24V [cite: 1]
| |Protection
| [cite_start]Miss-wiring avoidance, Node failure protection, Loop protection [cite: 1]
| |SNMP Trap
| [cite_start]Up to 10 trap stations; trap types including: Device cold start, Authorization failure, Port link up/link down, DI/DO open/close, Typology change (ITU ring), Power failure, Environmental abnormal** [cite: 1]
| |DHCP
|Provide DHCP Client/ DHCP Server/DHCP Option 82/Port based DHCP; DHCP Option 66; [cite_start]DHCP Snooping; basic IPv6 DHCP server [cite: 1]
| |Mac based DHCP Server
| [cite_start]Assign IP address by Mac [cite: 1]
| |DNS
| [cite_start]Provide DNS client feature [cite: 1]
| |Diagnostic
| [cite_start]Support Ping and DDM information [cite: 1]
| |SNTP
| [cite_start]Supports SNTP to synchronize system clock in Internet [cite: 1]
| |Firmware Update
|Supports TFTP firmware update, TFTP backup and restore; [cite_start]HTTP firmware upgrade [cite: 1]
| |Configuration backup & restore
| [cite_start]Supports text configuration file for system quick installation, USB port to upload/download configuration file by USB dongle [cite: 1]
| |Auto Provision
| [cite_start]To verify switch firmware with the latest or certain version [cite: 1]
|*Future Release
**Optional
***Optional DDM SFP required
