OVERVIEW

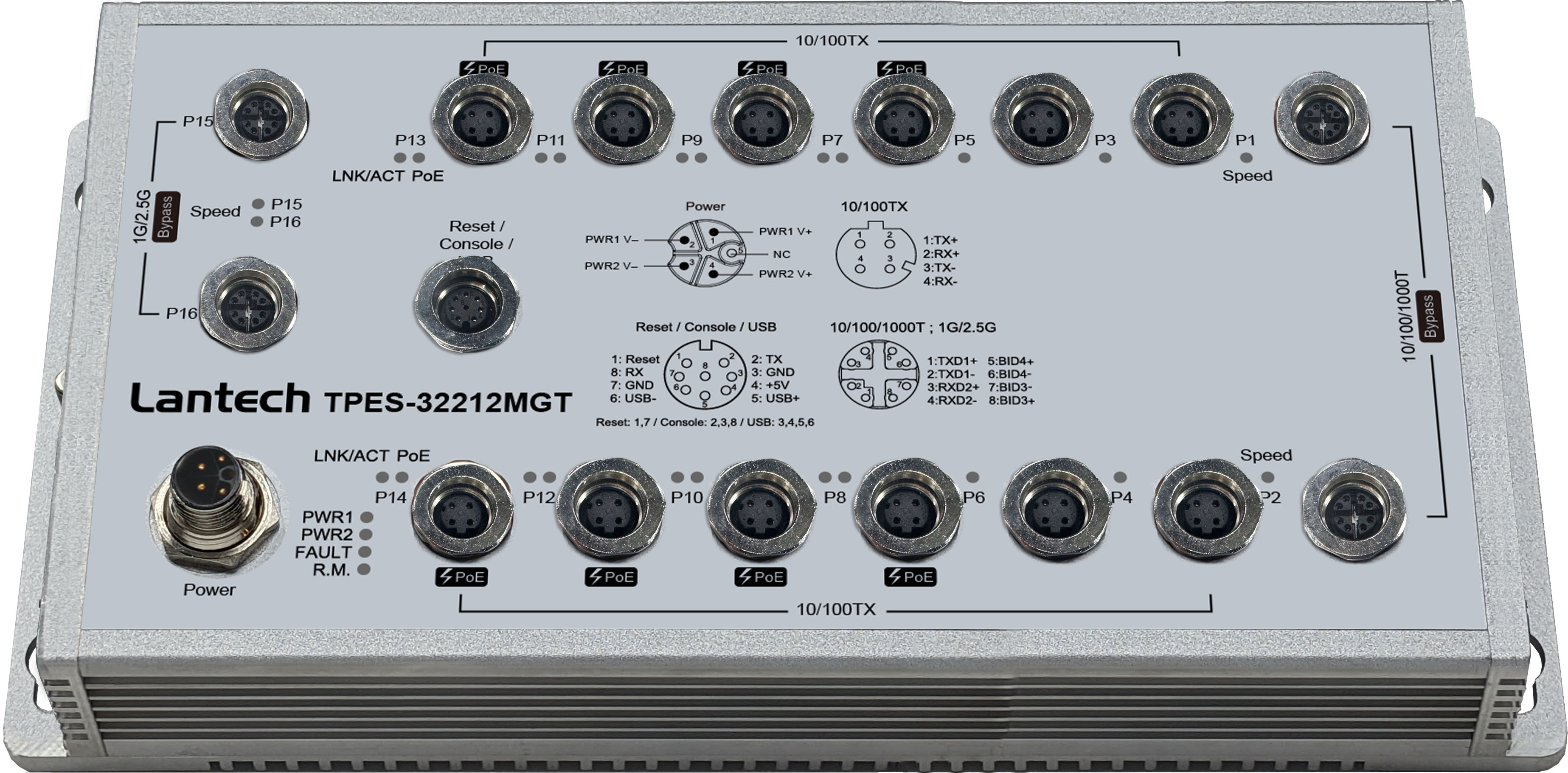

T(P)ES-32212MGT(OS2 Pro generation) is a compact router switch with a 80W PoE budget, designedfor rail, metro, and 24V vehicle Ethernet systems. It integrates 12 10/100TX + 21G/2.5G + 2 10/100/1000T ports and 8 PoE 802.3af/at ports. The switch supportsLayer 2 management, NAT, Ignition PoE timer off, AUTO-FEED configuration, MQTT,security functions, and health diagnostic snapshots for reliable onboardnetworking. With WebGUI, full CLI, and OPEN API support, it ensures easy setupand efficient central management, ideal for fleet and AIoT applications.Certified to EN50155, ITxPT, and E-marking, it guarantees proven performanceand reliability for transportation environments.

Redundant dual powerinput design; EN50155 verification with high ESD and inrush current preventionand reverse polarity protection; E-marking & ITxPT certificate; ISO 16750-2P5A compliant

 T(P)ES-32212MGT is designed with dual powerinputs that accept 9V~32VDC for 24VI vehicle use, and 16V-32VDC for 24TVI trainmodel and is capable of withstanding EMI/RFI interference in the onboardnetwork as well as environmental shocks and vibrations. The redundant powerinput design integrates inrush current protection also protect against polarityreversal. Additionally, the galvanic isolation feature shields the system frompower transients often present in onboard networks. The switch complies withITxPT public transport standards and E-marking. It also meets the requirements of ISO 16750-2P5A, reducing the impact of high-frequency pulse voltage that could be incurredby motor applications.

EmbeddedInner-lock push-pull connectors ensure fast installation and connectionreliability (-PP model)

 The built-in inner-lockpush-pull connectors give the switch small-footprint design and forspace-saving cabling installation. They ensure quick, tool-free installationwith a simple push. Most importantly, their secure locking mechanism providesunwavering reliability, preventing accidental disconnections crucial fornetwork uptime.

SupportPerpetual/Fast PoE; PoE budget up to 80W for 8 Ports with PD detection, auto PDreboot, scheduling and PoE & Ethernet galvanic isolation

 Fast PoE andPerpetual PoE combined provide uninterrupted power delivery for criticaldevices. Fast PoE instantly supplies power after startup, while Perpetual PoEmaintains power during switch reboots or upgrades. Together, they ensurecontinuous, reliable operation of Powered devices (PD) in mission‑critical environments.

TPES-32212MGTsupports maximum PoE budget of 80W with advanced PoE management features,including PoE auto-detectionand scheduling. The PoE detection function can identify if a connected PoweredDevice (PD) becomes unresponsive and then auto-restart the PD. Moreover, PoEscheduling allows for a pre-set power feeding schedule based on a routinetimetable. Each PoE port can be enabled or disabled, and it providesinformation on voltage, current, power (W), and temperature.

Galvanicisolation between the power input and Ethernet power system enhances safety.Extra PoE galvanic isolation on 802.3at/af ports insulates the power input fromPoE Ethernet ports, preventing damage from cabling and grounding incidents tothe Ethernet switch.

Sleep Mode & efficient PoE timerunder Ignition-Off Stateon IGN model

 The PoE-IGN model supports network operationfor up to 60 minutes before entering Sleep Mode (0.048W), preventingunnecessary reboots when power is restored. It also includes a configurable PoEtimer, with a default delay of 10 minutes after ignition-off.

The Ignition timer allows flexibleconfiguration of both individual PoE port shutdown delays and system shutdown(Sleep Mode), ranging from 30 seconds to 60 minutes (default: 60 minutes). Thisdesign eliminates the need for additional relay wiring and enables remote PoEtimer configuration anytime, from anywhere.

mDNS(Multicast DNS) and DNS server/client feature and MQTT-role of Publisher orBroker, ITxPTInventoryservice, X status

 T(P)ES-32212MGTsupports mDNS (Multicast DNS), enabling hosts within the LAN to discover andcommunicate with each other following DNS protocol, without the need for atraditional DNS server.

The switchalso functions as an MQTT Publisher or Broker, sending data to the broker whichthen distributes the “payload” to subscribers efficiently using a lightweightprotocol.

In addition,the switch supports ITxPT Inventory service, X status, DNS-SD, and MQTTprotocols for comprehensive remote monitoring of Ethernet switch status.

ReliableeMMC for better power efficiency and reliability

 T(P)ES-32212MGTutilizeseMMC for firmware storage, enhancing product reliability and effectivelyextending its lifespan under frequent power on/off conditions.

Comprehensive NetworkProtection Against DDoS and Layer 2 Threats

LantechOS2Pro generation integrates advanced security mechanisms to safeguard bothswitches and networks.
Key features include DDoS attack mitigation, 802.1X port-based authentication,Dynamic ARP Inspection (DAI), IP Source Guard, and Port Security, providingmulti-layer protection against spoofing, unauthorized access, and trafficfloods. These security capabilities ensure stable, resilient network operation.

LantechOS2 PRO Generation with L2 management and routing protocols incl. OSPF and RIPV1&V2

T(P)ES-32212MGTdeveloped on the Lantech OS2 Pro generation, is equipped with comprehensiveLayer 2 management and routing protocols, including inter-VLAN routing, OSPF,and RIP v1/v2. Designed for versatile vehicle applications, the generationfurther supports advanced networking functions such as NAT, port forwarding,multiple static IP addresses, DHCP (server/option/client/port-based), VLAN,DHCP over VLAN, IGMP, RSTP/G.8032 enhanced ring recovery, LACP, and more.

Open RESTful API for Seamless Integration andHigh-Performance Network Management

 The switch features a lightweight and efficient Open RESTful APIdesigned for seamless integration with centralized network management software.Using standard HTTP methods (GET, PUT, POST, DELETE) and JSON data structures,the API enables real-time access to configuration and operational data.

By leveraging modern web technologies, the switch minimizes CPUoverhead typically associated with traditional SNMP polling, delivering fasterresponse times, reduced system load, and improved scalability forhigh-performance network environments.

Autofeed configuration for swapped new switches for Seamless Network Maintenance, USBport for backup, restoring configuration and upgrading firmware

 The switchsupports auto-feed configurationfeatures that revolutionize network switch setup and management. It ensuresthat new and replacement switches automatically receive the correctconfigurations without manual intervention. Additionally, it supports the traditionalway of uploading or downloading the firmware / configuration through a USBdongle.

User-friendlyGUI, Auto topology drawing, Editable configuration text file, EnhancedEnvironmental Monitoring, CPU watchdog, Snapshot switch information fortrouble-shooting analysis

T(P)ES-32212MGToffers a user-friendly UI complemented by innovative auto topology drawing andtopology demo features, simplifying network management. Configuration files canbe exported as editable text files, facilitating easy modification and massdeployment. Its built-in watchdog function automatically reboots the switch ifthe CPU becomes unresponsive. It supports enhanced environmental monitoring ofactual input voltage, current, ambient temperature and total power load whereuser can set threshold to trigger an alert or event log. Additionally, theunique Snapshot feature enables data collection—including port statistics,system core info, configurations, and event logs—either on-demand or scheduled,helping quickly identify and resolve network issues.

‍

‍

OPTIONAL FEATURES

Optional IEC 62443-4-2Model with Physical Tamper Resistance and a Variety of Security Measures
Forenhanced cybersecurity, the optional IEC 62443-4-2 is available on standardmodels. This includes over 90 security measures such as vulnerability checking,encrypted files, public key management, strong password enforcement, accountmanagement, and both penetration and stress testing. It emphasizes protectionagainst unauthorized access, tampering, and malware through detailed log eventsand roots of trust security IC.

Optional LantechViewfor Lantech devices maintenance

LantechView** can automatically discoverLantech devices on the network, providing seamless configuration managementacross multiple IP subnets and VLAN areas (single device and batch). It also supportsfirmware management, allowing single and batch verification and simultaneousupgrades to the latest firmware versions.

To learn more about Lantech LantechView** softwaresolutions, please refer to  https://www.lantechcom.tw/global/eng/download/datasheet/D-LantechView.pdf

‍

OS2 Pro vs. OS2 Pro - SEC models comparison‍

‍
