TMR-5002
EN50155 Multifunction VPN Router + up to 2 LTE 4G + 2 serial ports + 2 Gigabit X-coded Ethernet (incl.1 PD) for Load Balancing VPN, Protocol Gateway, Storage**; WVinput; IP65/54
OVERVIEW
Lantech TMR-5002 series is a next generation EN50155 multi-function VPN router up to 2x LTE modem + 2x Gigabit Ethernet(incl.1 PD)+ 2 serial ports that supports advanced function of VPN, Load-balancing, EMMC Flash Storage**, Protocol gateway(Modbus), Storage**, and LTE dual SIM fail-over for on-board / onboard-to-ground applications. The dual core CPU with 1.6GHz + 256M flash enables the router to multi-task smoothly.
Dual concurrent LTE design 4G/3G for load-balancing
With dual LTE module design (2L model), 4 SIM card slots, TMR-5002 can allow auto-swap, failover & failback between multiple service providers for real non-stop connection. With concurrent LTE modules, it can also allocate bandwidth by “ Load Balancing with 8 schemes between multiple WANs.
Optional EMMC Flash storage**
The optional EMMC flash storage on the router can offer 8G/16G/32G capacity.
Optional eSIM**
By replacing physical SIM, optional eSIM chip will allow users to purchase data plans at low prices from local carriers in the world.
Load Balancing with 5 mechanisms for multi-WANs
TMR-5002 supports Load Balancing for LTE/WAN connections. There are five schemes for Load Balancing function:
Pack
|Algorithm
|Description
| | --- | --- | --- | |Basic
|Fixed
|All traffic will be distributed to a single WAN.
| | |Failover
|Routes connections through preferred WAN link while others stand-by. Sequentially activating another link if the preferred link fails.
| | |Priority
|Select the active WAN according to priority.
| | |Weighted Round-Robin
|Evenly distribute the traffic over all working WAN links in circular order according to the specified weights.
| | |Custom Route
|Routing through the selected WAN for each specific traffic, ex: TCP/UDP port number and IP address.
|2 port serial connection, Modbus gateway
It builds in 2 port serial connection for RS232; RS422/ 485 in which RS422/RS485 has 2.5KV isolation protection. The built-in Modbus gateway can convert Modbus RTU/ASCII to Modbus TCP for device control.
Support various VPN applications and firewall
Besides traditional VPN peer to peer tunneling, TMR-5002 support latest Multi-Site VPN function that is an efficient way for mesh tunneling. The registration is under cloud service and encrypted by SSH makes the connection easy and safe. It supports Multi-Site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE, and NAT for various VPN applications. The built-in Layer-4 firewall includes DDoS, IP address filter / Mac address filter / TCP/UDP port number.
Support Routing Protocol: Static route / RIPv2 / OSPF / BGP / EIGRP
Lantech router series supports two routing methods: static routing and dynamic routing. Dynamic routing makes use of RIPv2, OSPF, EIGRP and BGP. The user can either choose one routing method to establish the routing table.
DIDO for alarm & email notice; Event log; Remote Web control
2 sets of DIDO function can support additional high/low physical contact for designate applications besides Port / Power events, for example, DIDO function can trigger alarm if the router was moved or stolen. In case of events, the TMR-5002 will immediately send email and trap. When the router is at remote area with limited access, Web control can help to get router status or remotely reboot by Web.
Wide range dual input voltage from 16.8-137.5V (WV model)
The TMR-5002 is able to work from dual16.8V ~137.5V DC isolated input (WV model) that is particular good for vehicle, rail train, depot etc applications.
Environmental monitoring for inside router info& alerting; LTE signal strength
The built-in environmental monitoring can detect router ambient temperature, voltage, current where can send the syslog and email when abnormal.
Editable login page of captive portal
The TMR-5002 supports editable captive portal function that allows administrator to force end-users redirect to authentication page.
USB port for back up, restore configuration and upgrade firmware Dual image firmware
The built-in USB port can upload/download/upgrade the configurations through USB dongle for router replacementIt supports dual-image firmware to choose which one to start
Ruggedized EN50155 design and FCC/CE & E-marking** certificate
The TMR-5002 series is verified with EN50155, EN61373, EN45545 standard with IP65/54 housing. It passed tests under extensive Industrial EMI and environmental vibration and shocks standards. With CE & FCC radio certification for LTE and E-marking** certificate, the TMR-5002 is best for outdoor community, vehicle, power substation, process control automation etc application. For more usage flexibilities, TMR-5002 supports operating temperature from -40°C to 65°C.
*Future Release
**Optional
FEATURES
- Built-in two Gigabit ports X-coded incl. 1 PD; 1LAN+1WAN or 2LAN
- 6 xSMA/QMA** type connectors for LTE(2L model),
- HTTP/HTTPS/Telnet/SSH & Administration access
- Support IPv6 & IPv4 protocol
- Support Routing Protocol: Static route / RIPv2 / OSPF / BGP / EIGRP
- Dual concurrent LTE 4G/3G design (2L model)for auto-swap/failover/failback between multiple ISPs for continuous service (four SIM card slots)
- GPS/ GLONASS (built-in LTE module) connection
- EMMC-FLASH storage**8/16/32G
- eSIM** to allow data-plan globally
- Load Balancing supports 5 mechanisms between multiple WANs
- Built-in 2 x serial ports(RS232/RS422/RS485)
- Serial port with 2.5KV isolation on RS422/RS485
- Supports 2DI / 2DO(Digital Input / Output)
- Support Multi-Site VPN for mesh tunneling as well as Open VPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE and NAT for secured network connection
- The built-in Layer-4 firewall includes DDoS, IP address filter / Mac address filter / TCP/UDP port number
- NAT/ DMZ/ Port Forwarding
- Built-in Modbus gateway converting Modbus RTU/ASCII to Modbus/TCP
- Radius Authentication, EAP-TLS, EAP-TTLS, PEA
- Event alerting by Syslog, SNMP Trap, Email, Relay ; Permanent local log rotation / Maxi 1K records
- Remote Web control to get status or re-boot by Web
- Built-in RTC to keep track of time always
- Support SNTP to synchronize system clock
- Support LLDP discovery protocol
- Support DHCP Server and Client
- Built-in environmental monitoring for system input voltage, current and ambient temperature; Able to set alert when abnormal
- LTE signal strength
- Firmware upgradeable through TFTP/HTTP
- Configuration backup and restoration
- Supports editable configuration file for system quick installation
- USB port to upload/download configuration by USB dongle
- Dual image firmware
- Support editable captive portal login page
- IP 65/54 housing for water proof environment
- Wall-mount installation
- Operation temperature -40°C to 65°C
Pack
|Algorithm
|Description
| | --- | --- | --- | |Basic
|Fixed
|All traffic will be distributed to a single WAN.
| | |Failover
|Routes connections through preferred WAN link while others stand-by. Sequentially activating another link if the preferred link fails.
| | |Priority
|Select the active WAN according to priority.
| | |Weighted Round-Robin
|Evenly distribute the traffic over all working WAN links in circular order according to the specified weights.
| | |Custom Route
|Routing through the selected WAN for each specific traffic, ex: TCP/UDP port number and IP address.
|*Future Release
**Optional
SPECIFICATIONS
Cellular Interface
Location Solutions
|GPS, Glonass
| |Band Options
|Europe & North America (EUNA model)
LTE = B1, B2※, B3, B4※, B5※, B7, B8, B12※, B13※, B20, B25※, B26※, B29※, B30※, B41※ (TDD)
DC-HSPA+/ HSPA+/ HSPA/ UMTS = B1, B2※, B3※, B4※, B5※, B8
Data Rates – LTE
|Europe & North America (EUNA model)
Downlink (Cat 6):
FDD: 300 Mbps
TDD: 222 Mbps
Uplink (Cat 6):
FDD: 50 Mbps
TDD: 26 Mbps
Physical Ports & System
Connectors
|10/100/1000T: 2x ports M12 8-pole X-coded with Auto MDI/MDI-X function (one port PD; 1LAN+1WAN or 2LAN)
USB/Console connector: 1 x M12 8-pole A-coded
DI/DO : 1 x M12 5-pole A-coded
Power Input connector : 1 x M12 4-pole A-coded
Serial connector : 2 x M12 8-pole X-coded
SIM card slots : 4(2L) or 2(1L)
2L model
SMA/QMA** connector for LTE: 4 (female)
SMA/QMA** connector for GPS: 2 (female)
1L model
SMA/QMA** connector for LTE: 2 (female)
SMA/QMA** connector for GPS: 1 (female)
Serial Baud Rate
|1000Kbps high data rate,250kbps normal for RS232 ; 20Mbps high data rate,250kbps normal for RS422/RS485
| |Serial Data Bits
|5, 6, 7, 8
| |Serial Parity
|odd, even, none, mark, space
| |Serial Stop Bits
|1, 1.5, 2
| |RS-232
|TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
| |RS-422
|Tx+,Tx-, Rx+, Rx-,GND
| |RS-485 (2-wire)
|Data+, Data-,GND
| |Isolation protection
|RS422/RS485 2.5KV isolation; 8KV contact & 15KV air
RS232 8KV contact and 15KV air ESD
DIDO 2.5KV isolation
Input power 1.5KVA isolation
DI/DO
|2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 80 VDC, 50mA
EMMC Storage**
|8/16/32 GB
|LED Indicators
Power & System indicator
|Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red) , System Ready(Green), Serial1/Serial2(Green) ,
| |10/100/1000Base-T(X) port indicator
|Link/Activity (Green), Speed (Yellow) )
| |SIM
|Green for Link/Act
| |GPS
|Green for Link/Act
| |Fault
|Red: Ethernet link down or power down
|Fault Contact
Relay
|Relay output to carry capacity of 1A at 24VDC
|Power
Input power
|Dual DC input, isolated 16.8VDC~137.5VDC for (WV model)
| |Power consumption (Typ.)
|18W
|Physical Characteristic
Enclosure
|IP 65/54 aluminum case

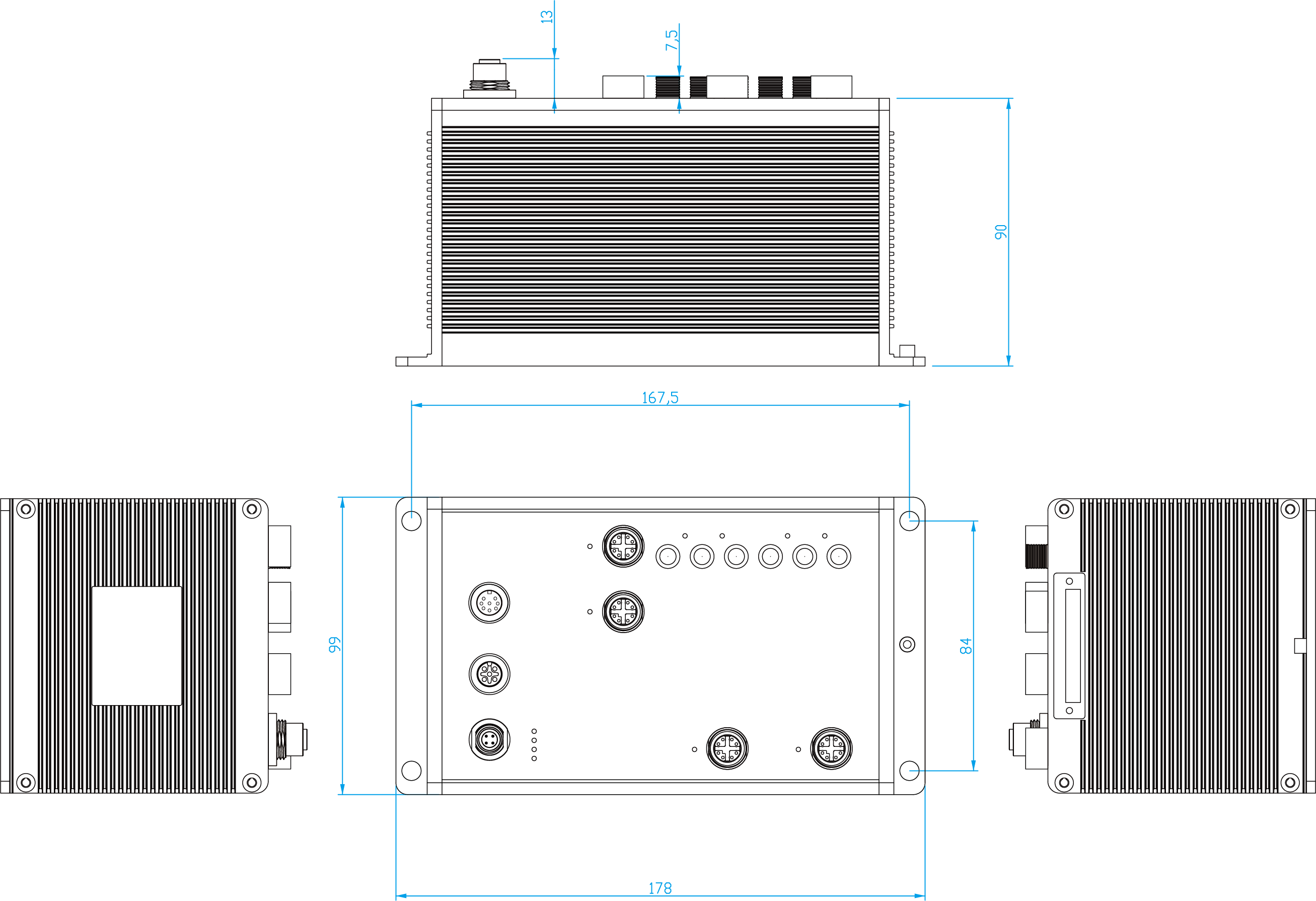

| |Dimension
|178 (W) x 99 (D) x 103 (H) mm
| |Weight
|1000g
|Environmental
Storage Temperature
|-40°C ~ 85°C (-40°F ~ 185°F)
| |Operating Temperature
|-40°C ~ 65°C (-40°F ~ 149°F)
| |Operating Humidity
|5% to 95% Non-condensing
|Regulatory Approvals
EMC
|FCC Part 15 Class A, EN55032, EN55024
| |EMS
|EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-6-2
| |Safety
|EN60950 (LVD), AS60950 (LVD)
| |Stability Testing
|EN61373 (Shock & Vibration)
| |Railway verification
|EN50155, EN50121-3-2, EN50121-4, EN 45545-1, EN 45545-2 Fire & Smoke verification
| |Radio Frequency
|EN 301 489-1,
EN 301 489-17,
EN 301 489-19,
EN 301 489-52,
EN 301 908-1※,
EN 303 413,
EN 62311
MTBF
|565,049 Hrs
(IEC62380 standards)
Software
IPv6/4
|Present
| |Login Security
|Supports IEEE802.1x Authentication/RADIUS
| ||
Optional Train Wireless Carriage Coupling for Auto wireless Coupling
| |Access Security
|HTTP/HTTPS/Telnet/SSH & Administration; SNMP v1/v2/v3 access for authentication via MD5/SHA(v3) and Encryption via DES/AES(v3)
| |Routing
|Static route / RIPv2 / OSPF / BGP / EIGRP
| |Protocol
|PPPoE Client,DHCP server/client, Adjustable MTU, Port forwarding (NAPT), DMZ; NAT, SNTP, Firewall(Firewall(DDoS; IP address filter / Mac address filter / TCP/UDP port number), VRRP, DDNS
| |Management
|SNMP v1,v2c,v3/ Web/Telnet/CLI
| |Discovery
|IEEE 802.1ab Link Layer Discovery Protocol (LLDP)
| |SNMP trap
|Device cold / warm start
Port link up / link down
DI / DO high / low
Environmental Monitoring
|System status for input voltage, current , ambient temperature to be shown in GUI and sent alerting if any abnormal status
| |Graphic signal display
|Graphic LTE signal strength & TX / RX rate display
| |Remote Web control
|To reboot or get status of router by Web
| |Maintenance
|Firmware upgradeable through TFTP/HTTP
| |Configuration backup & restore
|Supports text configuration file for quick system installation
USB port to upload/download configuration and upgrade firmware by USB dongle
Software - Load Balancing
5 schemes for multiple WAN(client mode)
|Pack
|Algorithm
|Description
| | --- | --- | --- | |Basic
|
Fixed
|All traffic will be distributed to a single WAN.
| | |Failover
|Routes connections through preferred WAN link while others stand-by. Sequentially activate another link if preferred link failure occurs.
| | |Priority
|Routes connections through preferred WAN link while others stand-by. Sequentially activate other links if overflow occurs.
| | |Weighted Round-Robin
|Evenly distribute the traffic over all working WAN links in circular order according to the specified weights
| | |Custom Route
|Routing through the selected WAN for each specific traffic ex: TCP/UDP port number and IP address.
|*Future Release
**Optional
※Standard test of the following bands are not listed in EN 301 908-1 report:
(EUNA not listed bands) LTE = B2, B4, B5, B12, B13, B25, B26, B29, B30, B41
WCDMA = B2, B3, B4, B5
ORDERING INFORMATION
All standard models are non-conformal coating, optional conformal coating are with –C model name; Optional bypass models are available with –BT model name; QMA connector models are with –Q model name.
EMMC Flash Storage
OPTIONAL ACCESSORIES - Management System
OPTIONAL ACCESSORIES - Cellular Antenna
| LTE hinge rotatable antenna, 698-960MHz, 1710-2690MHz, Diameter 10mm, Length 108mm, SMA Connector |
OPTIONAL ACCESSORIES - GPS Antenna
| SMA GPS antenna, 28dB, 300m |
OPTIONAL ACCESSORIES - Antenna Base
| Magnetic antenna base for 3G/4G, RP SMA Jack Base, Length : 1M |
