8 10/100/1000T EN50155 Ethernet Switch

  •  Dual power inputs 16.8~56V (24TV model)
  •  Wide Operating Temperature from -40°C to 75°C
  •  IP54/IP41 Aluminum housing for best heat dissipation and preventing moist ingress
  •  EN50155/50121-3-2/50121-4 and EN45545-2 Fire & Smoke verification

Datasheet
Manual

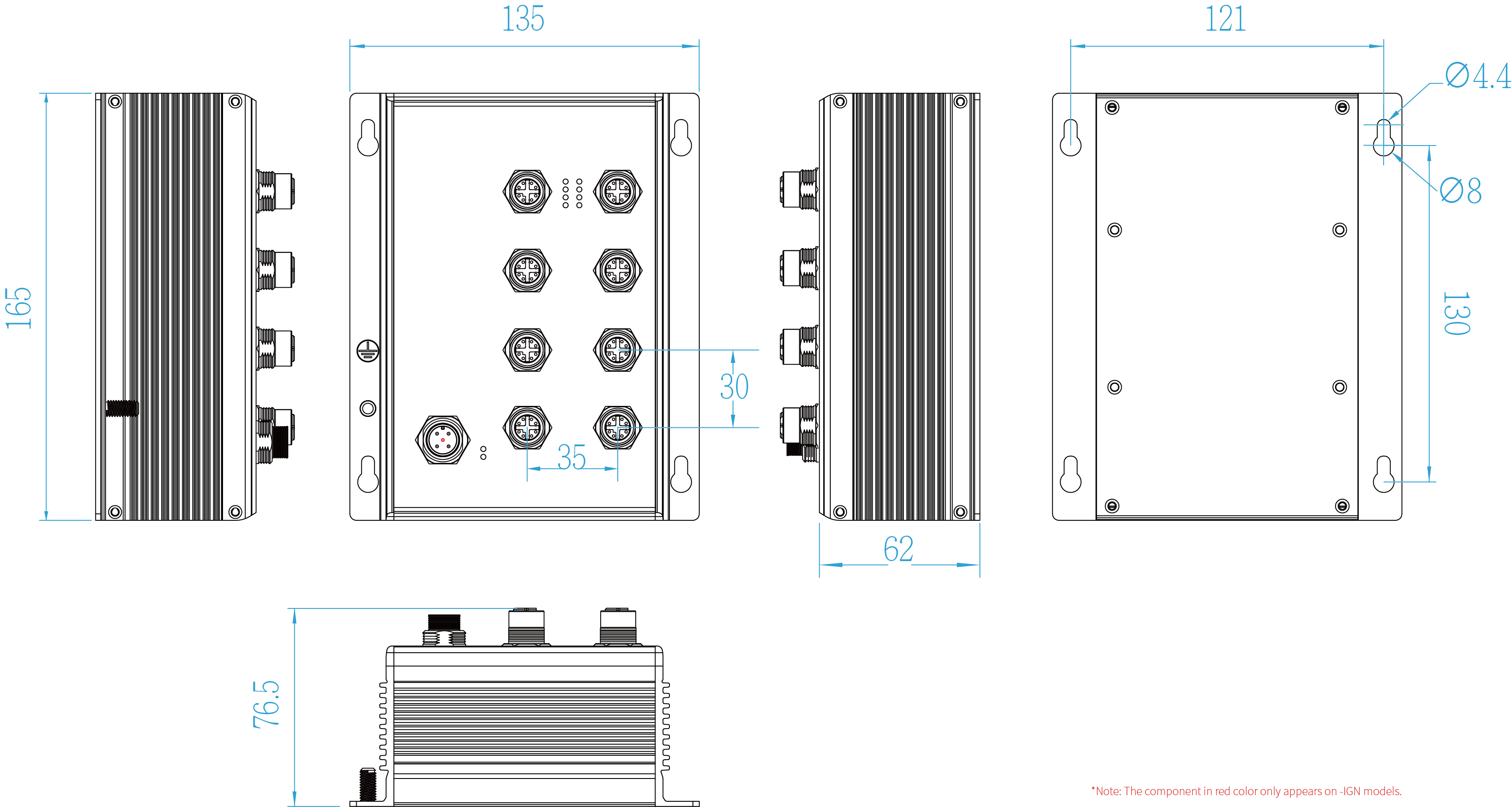

  • IP-54 Model

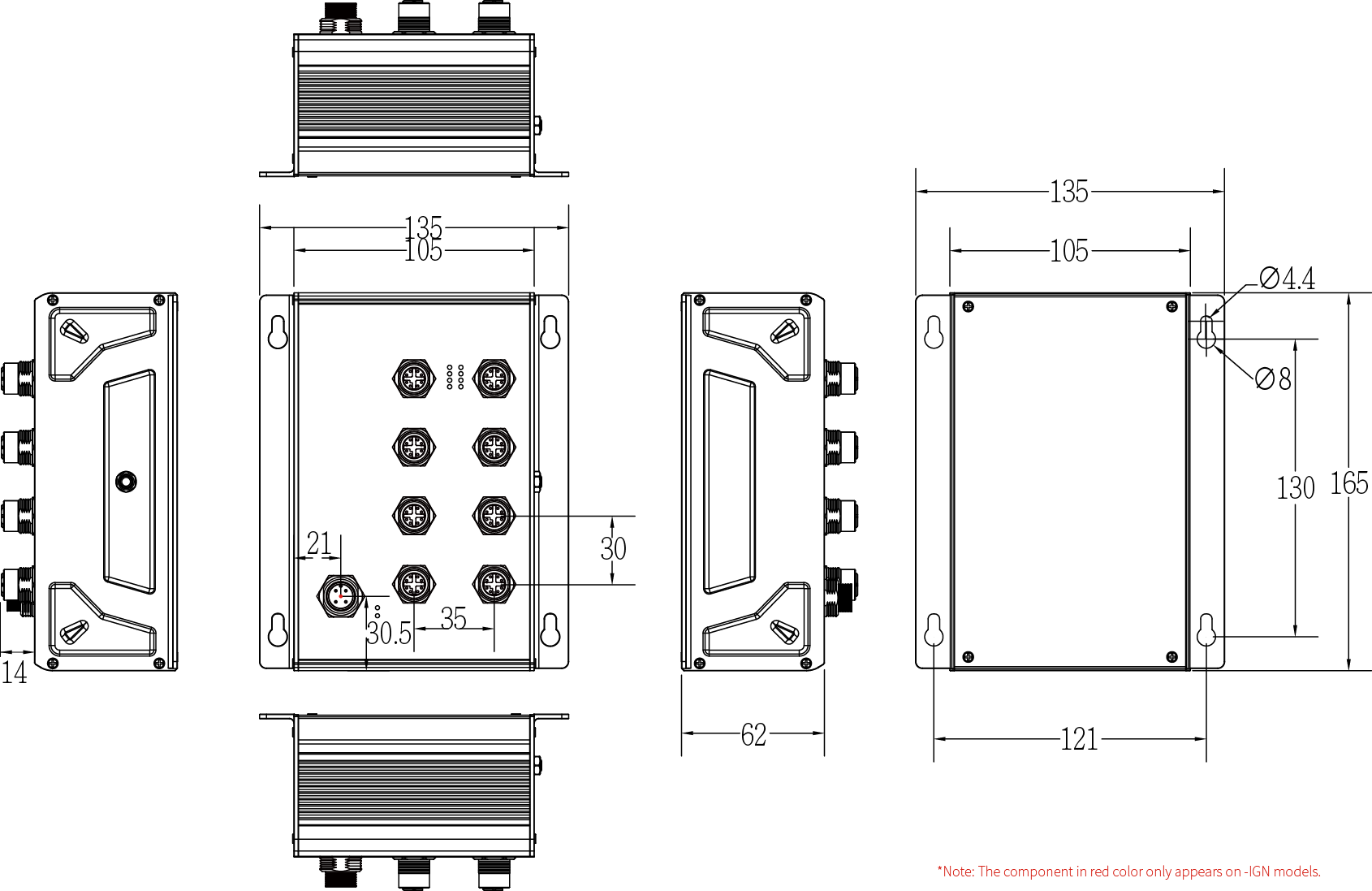

  • IP-41 Model

12

OVERVIEW

Lantech TGS-0008CA is an 8 10/100/1000 Base-T with M12-connectors EN50155 unmanaged Ethernet switch with IP54/IP41 rated protection which meets the high reliability requirements demanded by industrial rolling stock applications.

Rugged design with extended working temperature
The TGS-0008CA is designed to meet with critical network environment with IP54 enclosure and M12 connectors for protection against dust and water. It has passed harsh environmental testing to comply with Industrial EMI and Safety standards as well as stability testing such as Free fall, Shock, and vibration. For a greater flexibility in application the TGS-0008CA supports an extended operating temperature range from -40°C to 75°C.

*Future Release
**Optional
