CABLE

Model name Description
ECONM12-5P(F)70CM CABLE 5 Pin M12 Power Female 90° angle Connector+ 70 CM CABLE
ECONM12-5P(F)1.5M CABLE 5 Pin M12 Power Female 90° angle Connector+ 1.5 M CABLE
ECONM23-5P(F)70CM CABLE 5 Pin M23 Power Female 90° angle Connector+ 70 CM CABLE,
Made in Taiwan
ECONM23-5P(F)1.5M CABLE 5 Pin M23 Power Female 90° angle Connector+ 1.5 M CABLE,
Made in Taiwan
ECONM23-5P(F)70CM CABLE-C 5 Pin M23 Power Female 90° angle Connector+ 70 CM CABLE,
Made in China
ECONM12-4P(F)1.5M CABLE 4 pin M12 (Female) A-coded 90 degree cable for power supply, 150cm
ECONM12-08M2-CONSOLE 8 pin M12 (Male) A-coded 180 degree to RS232 cable for console, 150cm
ECABM12X83MSTP 8 pin M12 (Male) X-coded 180 degree RJ45 STP cable for data, shielded, 300cm
ECAB124030MJS 4 pin M12 (Male) D-coded 180 degree RJ45 STP cable for data, 300cm
ECABMO02-QOP2-3.0-MM-OM3 Q-ODC 2 plug/LC multi-mode fiber, MM-OM3, 300cm
ECABMO02-QOP2-3.0-SM-OS2 Q-ODC 2 plug/LC single-mode fiber, SM-OS2, 300cm
ECONM12-05A(F) to MCP 6P-20CM CABLE 5 pin M12 (Female) A-coded 180 degree to 6 pin MCP power cable, 20cm (For ignition models)

CONNECTOR

P/N Description
ECONM23-5P(F)-S-180 M23 5Pin (Female) 180 Degree Screw Type Connector
ECONM23-5P(F)-S-90 M23 5Pin (Female) 90 Degree Screw Type Connector
ECONM12-05A(F)-C-180 M12 5Pin (Female) A-coded 180 Degree Crimp Type Connector
ECONM12-04A(F)-C-180 4 pin M12 (Female) A-coded 180 degree crimp type connector for power supply
ECONM12-08A(M)-180 8 pin M12 (Male) A-coded 180 degree crimp type connector for reset/console/USB
ECONM12-05A(M)-C-180 5 pin M12 (Male) A-coded 180 degree crimp type connector for DI/DO
ECONM12-08X(M)-SPEEDCON 8 pin M12 (Male) X-coded 180 degree crimp type connector for data, Ethernet CAT6A (10G), shielded, SPEEDCON
ECONM12-04D(M)-C-180 4 pin M12 (Male) D-coded 180 degree crimp type connector for data

ADAPTER CABLE

P/N Description
USB adapter (8850-102) 8 pin M12 (Male) A-coded 180 degree M12 to USB 2.0 interface adapter, 8cm
USB adapter set (8850-103) 8 pin M12 (Male) A-coded 180 degree M12 to USB 2.0 to DB9 (Female) Cable, 150cm + USB NIC

BRACKET

Model name Description

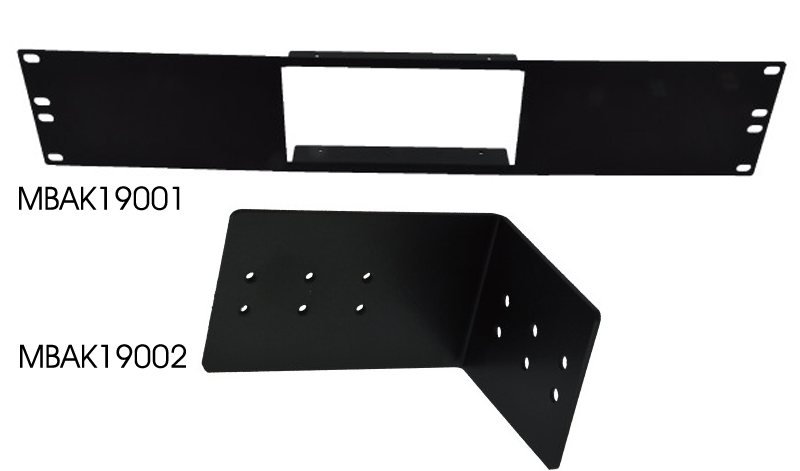

MBAK19002 L-Bracket that can change 90 degree of DIN rail mounting

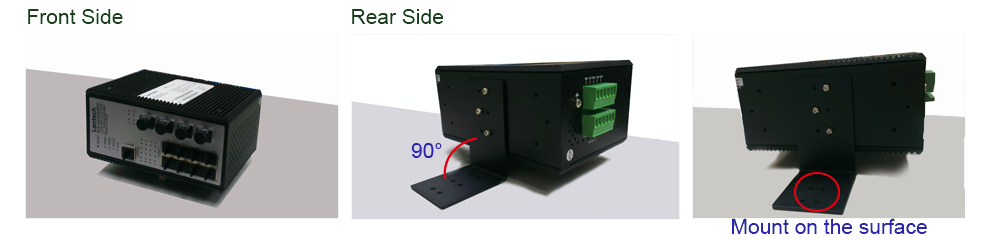

MBAK19002 L-Bracket Installation
MBAK19003 Wall mount bracket for 74 (W) x 105 (D) x 152 (H) mm / 74 (W) x 135 (D) x 152 (H) / 96 (W) x 105 (D) x 152 (H) mm Industrial Switches
MBAK19004 19” Rack Mounting Kit for 74 (W) x 105 (D) x 152 (H) mm / 74 (W) x 135 (D) x 152 (H) mm Industrial Switches
MBAK19005 19” Rack Mounting Kit for 35 (W) x 105 (D) x 152 (H) mm Industrial Switches
MBAK19009 19” Rack Mounting Kit for 43 (W) x 105 (D) x 152 (H) mm Industrial Switches
MBAK19006 Side DIN Rail mounted fin for 74 (W) x 105 (D) x 152 (H) mm Industrial Switches
MBAK19007 Side DIN Rail mounted fin for 74 (W) x 135 (D) x 152 (H) mm Industrial Switches
MBAK19008 Wall mount bracket for for 35 (W) x 105 (D) x 152 (H) mm / 43 (W) x 105 (D) x 152 (H) mm Industrial Switches
MBAK19010 19” 10-slot Rackmount Kit for industrial converter
MBAK19011 L-Bracket for Mounting MBAK19010 with the Industrial Converter

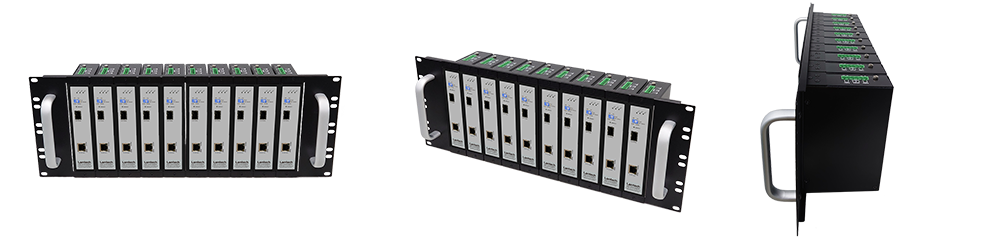

MBAK19010 + MBAK19011 Installation
