TES-0006CA

6 10/100TX EN50155 Ethernet Switch

Dual power inputs 16.8~56V (24TV model)
Wide Operating Temperature from -40°C to 75°C
IP54/IP41 Aluminum housing for best heat dissipation and preventing moist ingress
EN50155/50121-3-2/50121-4 and EN45545-2 Fire & Smoke verification

OVERVIEW

Lantech TES-0006CA is an 6 10/100 Base-TX with M12-connectors unmanaged EN50155 Ethernet switch with IP54/IP41 rated protection which meets the high reliability requirements demanded by industrial rolling stock applications.

Rugged design with extended working temperature
The TES-0006CA is designed to meet with critical network environment with IP54 enclosure and M12 connectors for protection against dust and water. It has passed harsh environmental testing to comply with Industrial EMI and Safety standards as well as stability testing such as Free fall, Shock, and vibration. For a greater flexibility in application the TES-0006CA supports an extended operating temperature range from -40°C to 75°C.

*Future Release
**Optional

FEATURES

SPECIFICATIONS

Hardware Specifications

IEEE Standard	IEEE802.3 10BASE-T Ethernet IEEE802.3u 100BASE-T Ethernet IEEE802.3x Flow Control and Back Pressure
Transfer Rate	14,880pps for Ethernet port 148,800pps for Fast Ethernet port
Mac Address	8K MAC address table
Connector	10/100TX: 6 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function Power connector: 1 x M12, 4-pole A coded, Male
LED	Per unit: Power 1 (Green), Power 2 (Green), Ethernet: Link/Activity (Green)
Power Supply	Dual input 16.8~56VDC (24TV model)
Power Consumption	3.5W (24TV model)
Operating Humidity	5% to 95% (Non-condensing)
Operating Temperature	-40°C ~ 75°C (-40°F ~ 167°F)
Storage Temperature	-40°C ~ 85°C (-40°F ~ 185°F)
Case Dimension	Aluminum case, 135mm(W)x165mm(H)x76.5mm(D) (IP54 model) 135mm(W)x165mm(H)x76mm(D) (IP41 model)
Weight	700g
Installation	Wall Mount Design
EMC	FCC Class A, CE EN55011, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8 (Magnetic Field), CE EN61000-6-2, CE EN61000-6-4, CE EN55032, CE EN55024 BS EN61000-4-2, BS EN61000-4-3, BS EN61000-4-4, BS EN61000-4-5, BS EN61000-4-6, BS EN61000-4-8, BS EN55032, BS EN55024
Stability Testing	EN61373 (Shock and Vibration)
Verifications & Report	EN50155/EN50121-3-2/EN50121-4 verification EN 45545-1, EN 45545-2 Fire & Smoke verification
MTBF	TBD
Warranty	5 years

*Future Release
**Optional

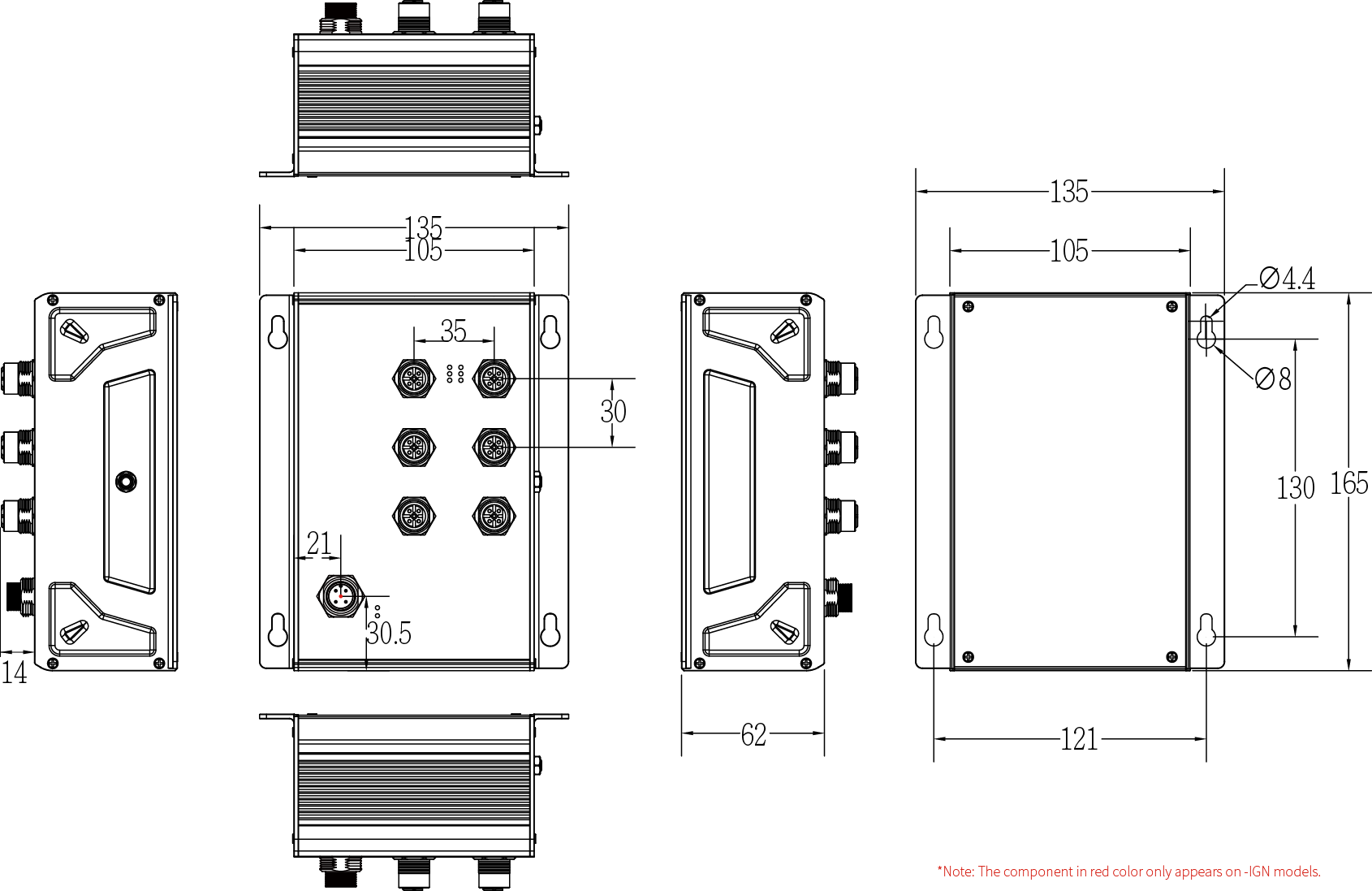

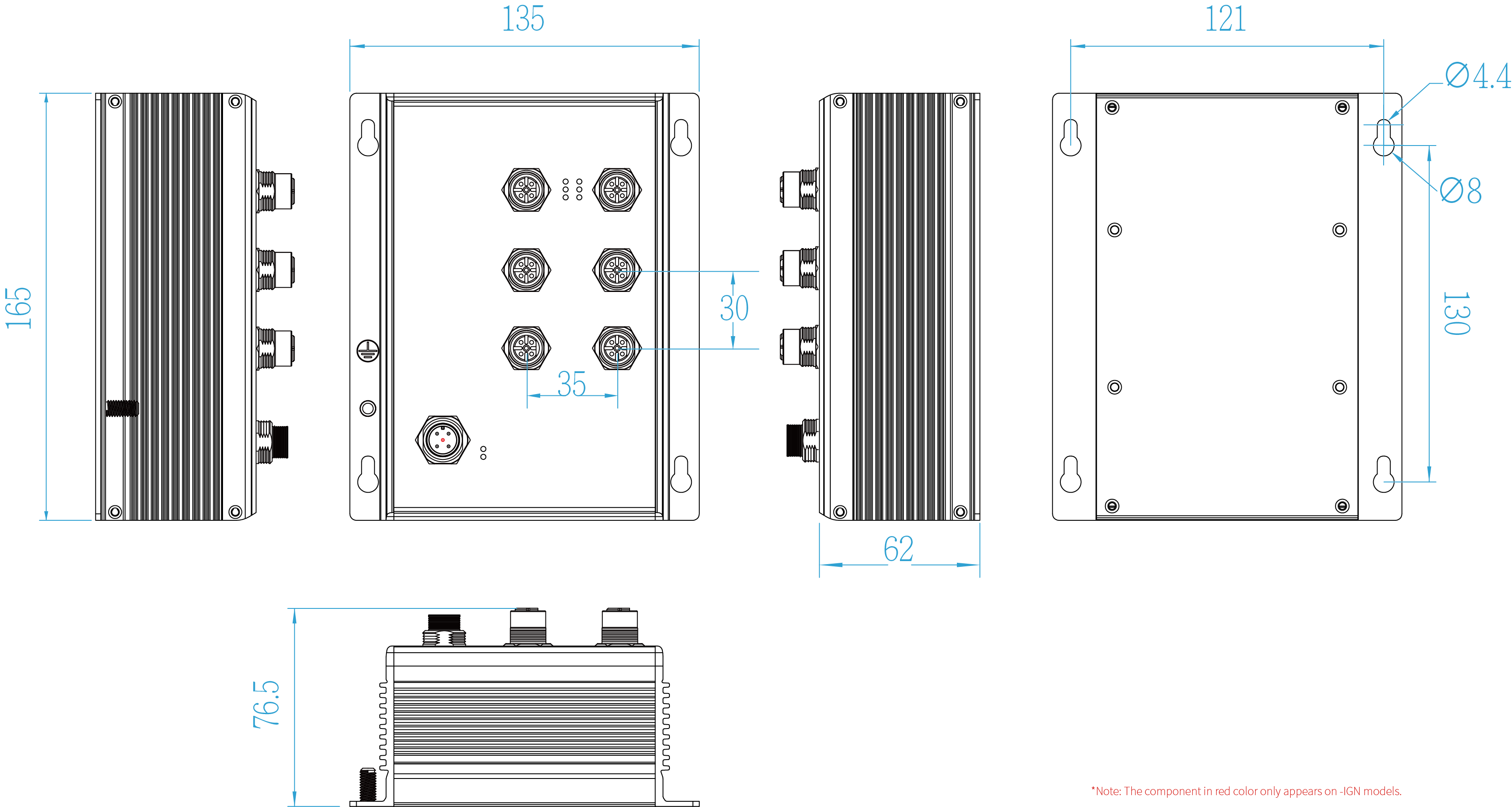

DIMENSION

ORDER INFORMATION

All model packages include M12 caps and wall mount bracket. All standard models are non-coating, optional coating models are available with –C model name.

P/N	Model name	Description
8351-13612	TES-0006CA-54-24TV	6 10/100TX IP54 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~56VDC dual power inputs
8351-13642	TES-0006CA-41-24TV	6 10/100TX IP41 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~56VDC dual power inputs

OPTIONAL ACCESSORIES – Connector

Model name	Description
ECON120005PF	5 pin M12 (Female) A-coded 180 degree crimp type connector for power supply
ECONM12-04A(F)-C-180	4 pin M12 (Female) A-coded 180 degree crimp type connector for power supply
ECONM12-04D(M)-C-180	4 pin M12 (Male) D-coded 180 degree crimp type connector for data

OPTIONAL ACCESSORIES – Cable

Model name	Description
ECONM12-5P(F)70CM CABLE	5 pin M12 (Female) A-coded 90 degree cable for power supply, 70cm
ECONM12-4P(F)1.5M CABLE	4 pin M12 (Female) A-coded 90 degree cable for power supply, 150cm
ECAB124030MJS	4 pin M12 (Male) D-coded 180 degree RJ45 STP cable for data, 300cm
