10/100/1000T to 100/1000M SFP Industrial Switch Converter w/Wide Range DC/AC Input

  •  Dual speed SFP cage (100/1000MFX) set by DIP Switch
  •  Wide dual input DC range 18~72VDC w/Galvanic isolation
  •  Wide dual input AC range 18V~36VAC w/Galvanic isolation(AC model)
  •  Support auto-sensing LLF by DIP Switch / 10K bytes Jumbo Frames
  •  Ethernet Cop per Port can work as PD mode (-PD model)
  •  Operating Temperature Range from -40°C to 75°C(-E model)
  •  AREMA** part 11.5.1 compliance

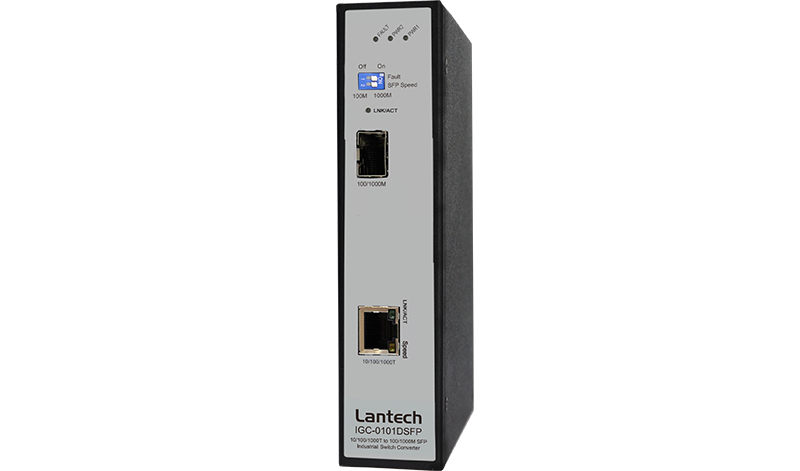

  • Product image

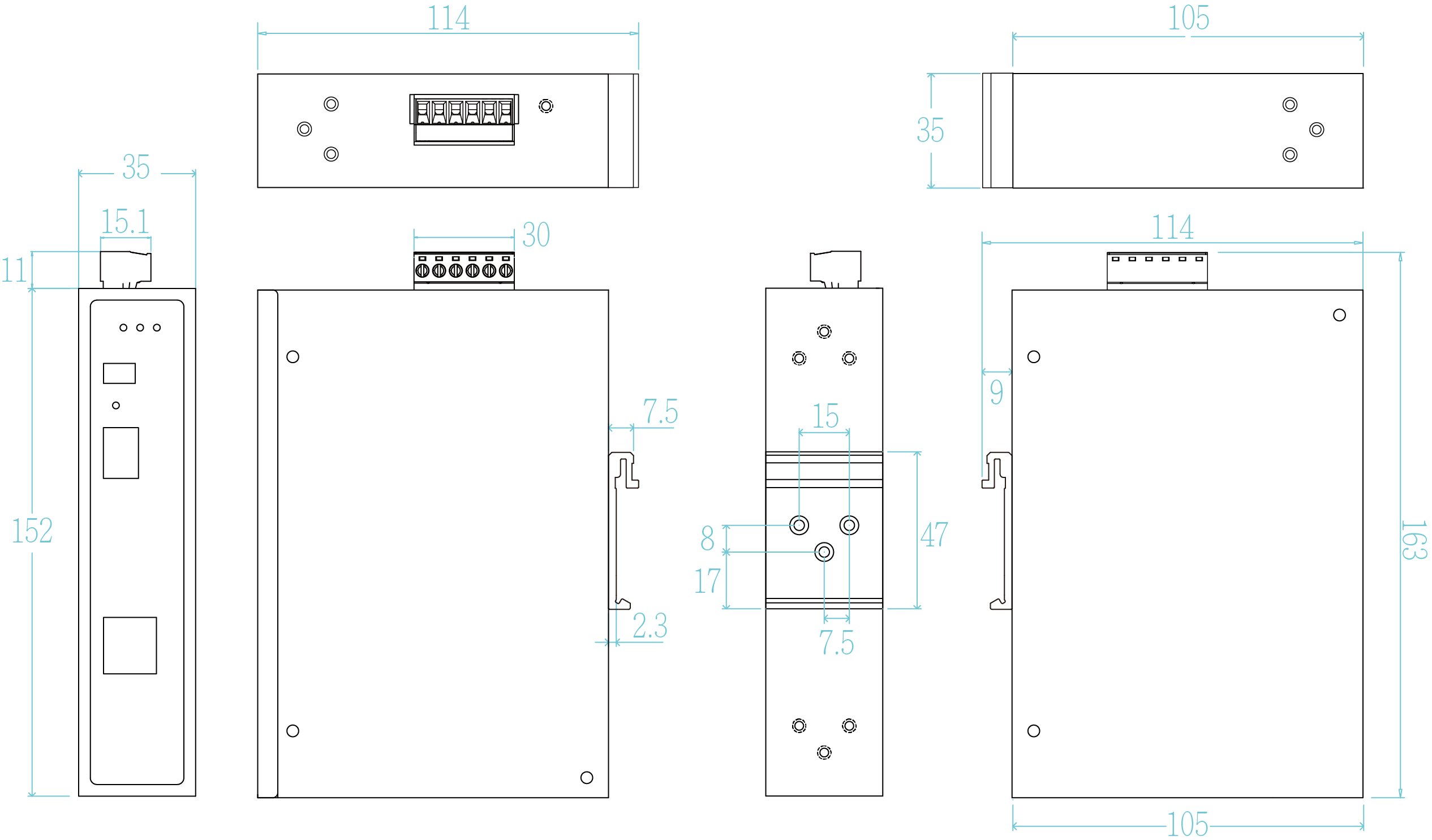

  • With optional mounting kit & bracket

  • With optinal mounting kit & bracket



The Lantech IGC-0101DSFP is an Industrial Converter converting from 10/100/1000BaseT to 100/1000M-FX dual speed. It supports 10K bytes jumbo frame.

Auto-sensing LLF and Power Fault LED setting by DIP switch
Featured with LLF (Link Loss Forwarding) function, Lantech IPGC-0101DSFP is able to auto cut off connection if one end of connection is down. When copper port disconnects, it will auto turn off fiber port. When fiber port disconnects, it will auto turn off copper port. Smart LLF function alert central side switch immediate remedy action when connection is lost.

Power Fault LED can be off by DIP switch.

Dual power input from 10V~54VDC/18~36VAC with galvanic isolation
IGC-0101DSFP supports dual wide range input from 10V~54VDC and 18~36VAC (AC model) with galvanic isolation that is good for various application including vehicle, railway, solar panel etc.

Copper Ethernet Port can work as powered device (PD mode)
The copper port can provide the correct classification to power source equipment (PSE) so that the PSE can source the right amount of power to the IGC-0101DSFP-PD.

Hardened industrial design with extended temperature range; CE, FCC, LVD, AREMA** part 11.5.1 compliance
It provides ±2000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet. It has high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines. With CE, FCC, LVD and AREMA** part 11.5.1 verification, Lantech IGC-0101DSFP is best for outdoor community, vehicle, railway, process control automation etc. For more usage flexibilities, IGC-0101DSP-E supports wide operating temperature from -40°C to 75°C.
